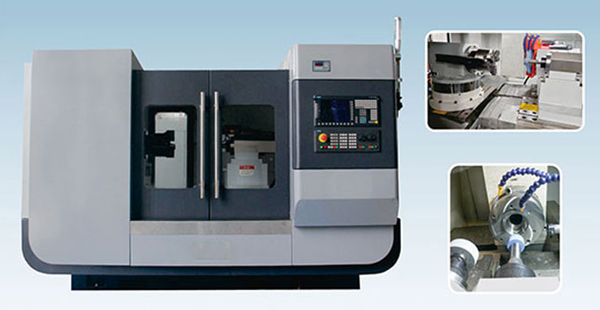

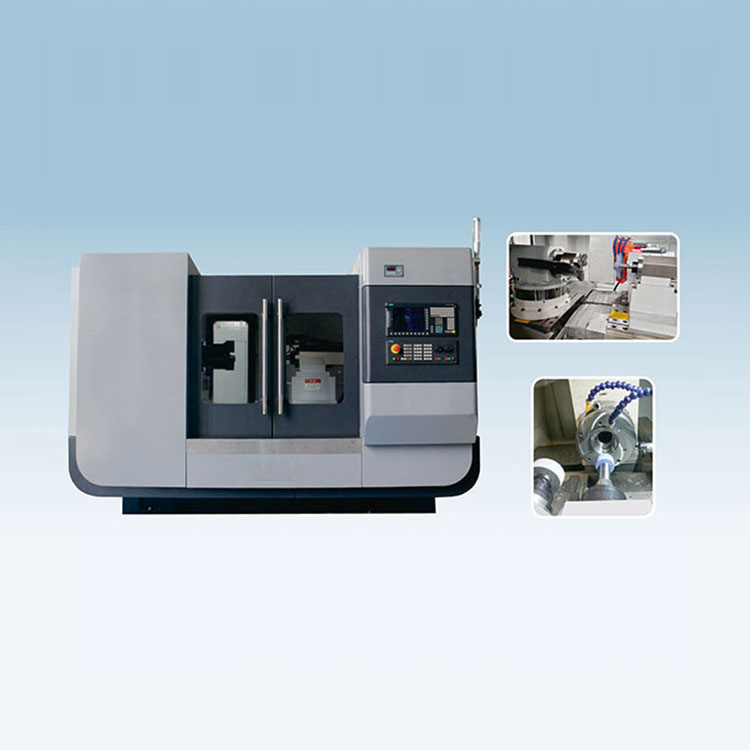

★ This machine tool is a four-axis (X workpiece transverse feed, Z1, Z2 abrasive wheel longitudinal movement, B horizontal directional indexing) multifunctional CNC grinder, mainly used for the grinding of complex shapes such as inner circular holes, inner tapered holes, inner ends, outer circles, outer tapered surfaces, outer ends, and spherical surfaces. The grinding cycles are all automatically completed (including automatic feeding, retracting, rough grinding, and fine grinding; automatic abrasive wheel correction, automatic compensation, etc.).

★ The machine tool employs workpiece feeding, a B-axis (torque turntable), and a structure with two independent worktables (grinding wheel stands) capable of left-right movement. The X and Z-axis motion guides are both roller linear guides, driven by servo motors to move ball screws. The rotating speed of both the workpiece spindle and the grinding wheel spindle is controlled by a variable-frequency inverter for stepless speed adjustment. The workpiece clamping is hydraulic power chuck, and other matching fixtures can be configured according to the special characteristics of the customer's workpiece.

★ Machine tools are equipped with a fully enclosed protective housing, featuring a front-mounted rotating control box and a rear-mounted backpack-style electrical cabinet.


Item Number Model MKF2120+B Axial Bore 1 Grinding Diameter Range 20-200 mm Axial Bore Depth 200 mm Outer Circle Grinding Diameter Range 30-300 mm Outer Circle Length 200 mm Workpiece Motor Power 2.2 kW X-axis Servo Motor Power 11 NM Z1, Z2-axis Servo Motor Power 11 NM Grinding Wheel 1 Motor Power 4 kW Grinding Wheel 2 Motor Power 7-22 kW (B-axis) Torque Motor Power 2.2 kW Grinding Wheel 1 Motor Speed 2800 (r/min) Variable Speed Grinding Wheel 2 Motor Speed 1000-24000 (r/min) Variable Speed Workpiece Speed 0-600 (r/min) Variable Speed (B-axis) Positioning Accuracy ±4 Arc Seconds X, Z1, Z2-axis Positioning Accuracy 5 μm (B-axis) Repeatability ±2 Arc Seconds X, Z1, Z2-axis Repeatability 2 μm X-axis Travel 550 mm Z1, Z2-axis Travel 450 mm X-axis Motion Speed 10 m/min Z1, Z2-axis Motion Speed 10 m/min Machine Dimensions 3000×2900×2700 mm Machine Weight 6300 kg Rated Power (approx.) 28 kW Processing Accuracy: 1. Inner and Outer Circle Roundness 2 μm 2. Inner and Outer Circle Cylindricity 3 μm 3. Inner and Outer Circle Centering 3 μm 4. Inner and Outer Circle Surface Roughness Ra0.4 μm 5. Inner and Outer Circle Perpendicularity to End Face 4 μm
