Key Features:

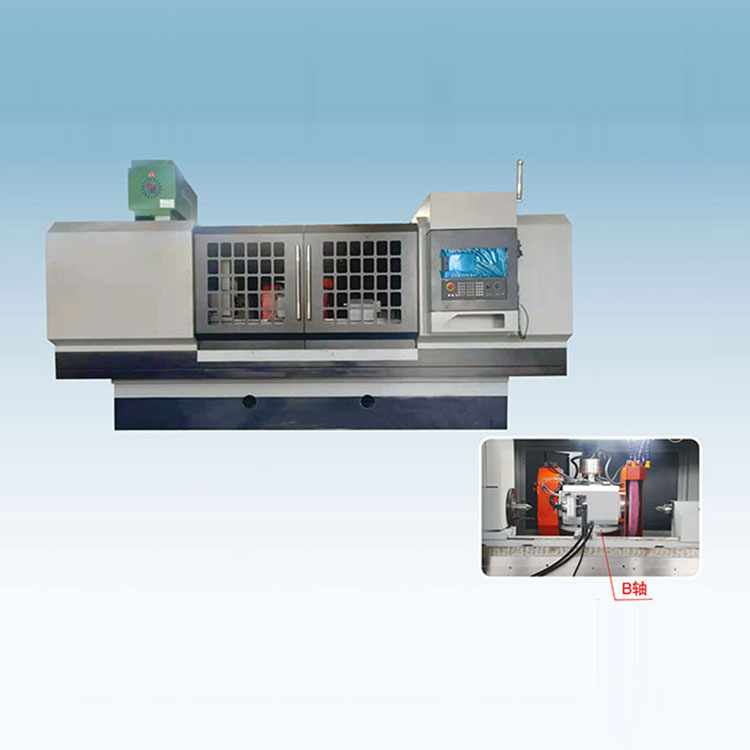

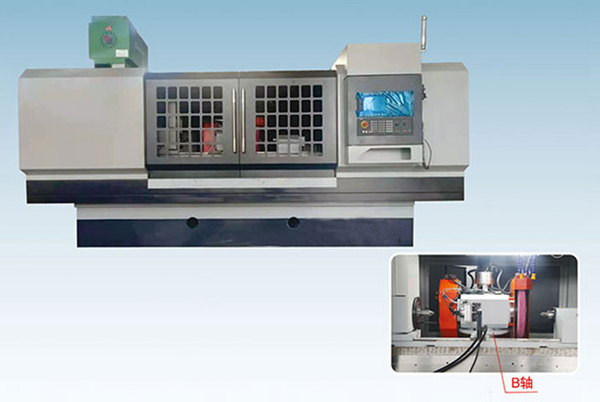

★ This machine tool is a three-axis CNC universal cylindrical grinding machine (X-axis for lateral feed of the grinding wheel carriage, Z-axis for longitudinal movement of the worktable, and B-axis for indexing rotation of the grinding wheel carriage base). The CNC system uses internationally or domestically renowned brands. It features automatic feeding and retracting, rough and finish grinding, grinding wheel correction, automatic compensation, and the automatic rotation of the grinding wheel carriage, plus an automatic measuring device to achieve a full closed-loop grinding cycle function.

★ The abrasive wheel chuck automatic rotation B-axis is driven by a torque motor, the abrasive wheel spindle is of sleeve or hydrostatic/dynamic spindle type, the abrasive wheel chuck guide rail is made of steel guide rail, the worktable guide rail is equipped with a flat V-shaped plastic-lubricated guide rail, and the feeding mechanism and worktable movement are driven by servo motor ball screw.

★ The machine tool body is cast from cast iron, featuring a fully enclosed protective casing, a rear-mounted backpack-style electrical cabinet, and a front-mounted rotating operating panel.


Name Technical Parameters Outer Diameter Grinding Length 500mm 1000mm 1500mm Outer Diameter Grinding Range 8-320mm Inner Diameter Grinding Range 20-150mm Inner Diameter Grinding Depth 180mm Tip to Table Center Height 180mm Table Travel Distance 550mm 1050mm 1550mm Table Rotation Angle +4, -3° Wheel Head Travel Distance 250mm Spindle Taper Morse No. 5 Spindle Chuck Diameter 200mm Tailstock Sleeve Travel 40mm Wheel Size 500×20-70×305mm X-axis Servo Motor Power 11Nm Z-axis Servo Motor Power 20Nm B-axis Motor Power 2.2kW B-axis Positioning Accuracy ±4 Arc Seconds B-axis Repeatability ±2 Arc Seconds X, Z-axis Positioning Accuracy 8um X, Z-axis Repeatability 2um Wheel Motor Power 11KW Machine Total Power 21.5kW Machine Weight 7700kg 8800kg 1000kg Machine Dimensions (mm) 3700×2800×2600 4300×2800×2700 5200×2800×2800 Machining Accuracy (Standard Delivery) Inner, Outer Roundness 0.002mm Outer Cylindricity 0.003mm Surface Roughness Ra0.32um Inner and Outer Roundness Consistency 0.003um
