Machine Tool Structure Features and Performance

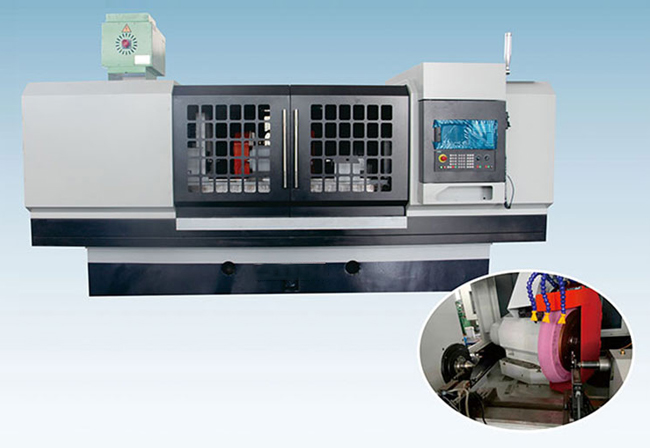

● This machine tool is a two-axis (X-axis with the grinding wheel carriage moving horizontally at an angle and Z-axis with the worktable moving longitudinally) two-axis linkage bevel face CNC outer cylindrical grinding machine, equipped with a CNC system from an international or domestic well-known brand. It features automatic feed, retract, rough and finish grinding, truing of the grinding wheel, and automatic compensation functions. With the addition of an automatic measuring instrument, it can achieve a full closed-loop function for the grinding cycle of outer cylindrical and end faces.

● The abrasive wheel spindle is equipped with sleeve-type or static/dynamic pressure spindle. The abrasive wheel mounting guide rail uses steel guide rails, and the worktable guide rail utilizes flat V-type plastic-lubricated guide rails. The feeding mechanism and worktable movement are driven by a servo motor and ball screw.

● The machine tool body is cast from cast iron, featuring a fully enclosed protective housing, a rear-mounted backpack-style electrical cabinet, and a front-mounted rotating operating screen.


Name Technical Parameters Grinding External Diameter Length 500mm 1000mm 1500mm Grinding External Diameter Range 8—320mm Tip Center Height 180mm Table Vertical Travel Distance 550mm 1050mm 1550mm Table Rotation Angle +4, —3° Wheel Stand Travel Distance 250mm Headstock Spindle Taper Morse No. 5 Headstock Chuck Diameter 200mm Tailstock Sleeve Travel 40mm Wheel Size 600×20—75×305mm X-axis Servo Motor Power 11nm Z-axis Servo Motor Power 20nm X, Z-axis Positioning Accuracy 8um X, Z-axis Repeatability Accuracy 2um Wheel Motor Power 11KW Machine Total Power 21.5kw Machine Weight 7500kg 8600kg 9800kg Machine External Dimensions (mm) 3700×2800×2600 4300×2800×2700 5200×2800×2800 Machining Accuracy (Standard Sample) Roundness 0.002mm Cylinder 0.005mm Surface Roughness Ra 0.32um End Face Flatness 0.004um End Face Perpendicularity to External Diameter 0.005um
