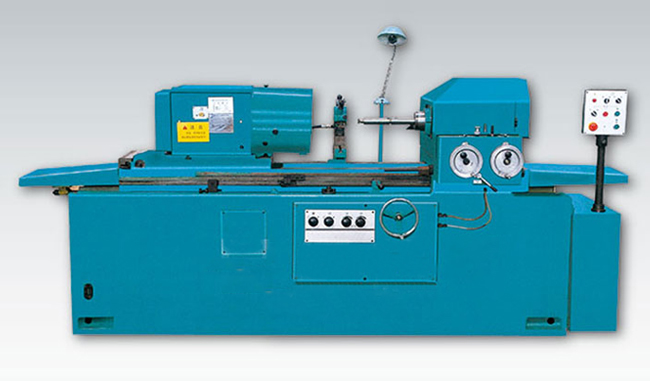

Key Features of This Machine Tool

★This machine tool is mainly used for the grinding of small-diameter, deep holes, internal tapered holes, and stepped holes.

★ The feeding and compensation of machine tools are executed by two independent transmission mechanisms. The feeding system features a fixed-path grinding function and operates with either manual or hydraulic feeding methods.

★The machine tool is equipped with a quick jump mechanism, so there's no need to manually realign the tool after measuring or dressing the grinding wheel.

★The workbench quick return is equipped with a middle stop device, allowing the quick return distance to be adjusted as needed to reduce auxiliary time.

★The workbench's start handle is equipped with a safety interlock device, ensuring safety during loading, unloading, and measurement operations.

★The machine tool grinding wheel shaft operates at a high speed of 24,000 RPM to increase the rotational speed of the grinding wheel during the processing of small holes.

★ Special Customer Order. Variable speed electric spindle for grinding small diameter square internal holes.


Machine Tool Model MS-2 Grinding Hole Diameter (mm) φ5-100 Grinding Depth (mm) 350 Workpiece Swing Diameter (mm) Inside φ260, Outside φ480 Bedhead Rotation Angle (°) 20° Workpiece Speed (r/min) 180-500 4-Grade Abrasive Wheel Speed (r/min) 10,000/24,000 Total Power of Machine (kw) 5.5 Workpiece Motor Power (kw) 0.75/0.45 Abrasive Wheel Motor Power (kw) 2.2 Machine Dimensions (mm) 3163×260×300 Machine Weight (kg) 2500 Power Supply 3N-5Hz 380v Working Precision (Based on Standard Test Piece) Inner Hole Roundness (μm) 2.5 Inner Hole Straightness (μm) 4 Inner Hole Surface Roughness (μm) Ra0.63
