Primary Applications and Overall Structure:

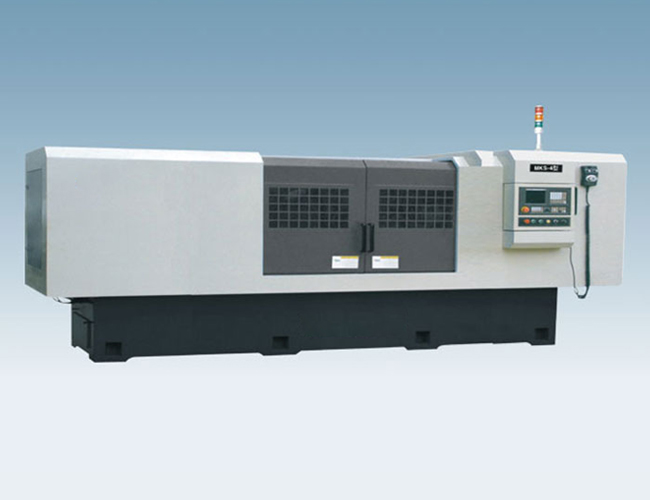

This machine tool is a two-axis two-axis linkage CNC deep hole internal cylindrical grinding machine, equipped with a German Siemens 828D CNC system.

2. The machine tool bed is formed from wear-resistant cast iron, offering excellent thermal stability and high rigidity.

3. Equipped with a programmable CNC system, capable of automatic feeding, precision grinding, rough grinding, wheel dressing, automatic compensation, and automatic retraction and return during workpiece grinding. It can grind internal circular holes, stepped holes, internal conical holes, as well as internal and external circular end faces.

4. The abrasive wheel stand feed is driven by a servo motor to move ball screw, with double V-type high rigidity and high precision roller guide rail. The worktable reciprocating movement is also driven by a servo motor to move ball screw, utilizing a high rigidity and high precision rolling linear guide rail.

5. Machining centers are equipped with fully or semi-enclosed waterproof covers, an independent electrical cabinet, and a mobile rotating operating platform.


Serial Number Name Main Technical Parameters I Machine Tool Weight (kg) 7800 (8500) II Machine Tool Dimensions (mm) 4500 (5200) × 1800 × 2800 III Rated Power 18.85 (19.85) IV Other Parameters

1. Workpiece Motor Power (KW) 42, Sandwheel Motor Power (KW) 4(5), 3X Axis Servo Motor Power (NM) 114, X Axis Repeatability Accuracy (mm) 0.0035, Z Axis Servo Motor Power (NM) 3(4), 6, Z Axis Repeatability Accuracy (mm) 0.004 (0.005), 7, Workbench Travel Speed (m/min) 108, Feeding Mechanism Speed (m/min) 59, Workpiece Rotation Speed (r/min) 50-500, Variable Speed 10, Sandwheel Speed (r/min) 2000-10000, 11, Workbench Stroke (mm) 800 (1200), 12, Workpiece Box Rotation Angle +5 (degrees), -2 (degrees), 13, Workpiece Rotation Diameter (mm) 700, 14, Workpiece Load Capacity (kg) 300 (Without Center Support), 1000 (With Center Support), 15, Tool Post Feeding Stroke (mm) 250, 16, Machining Range

17 Groove Diameter Nitu (mm) 50-400 18 Groove Depth (mm) 750 (1000) 19 Machining Accuracy

20 Roundness (um) 0.00521 Cylinder (mm) 0.002/20022 Surface Roughness (Ra) 0.4
