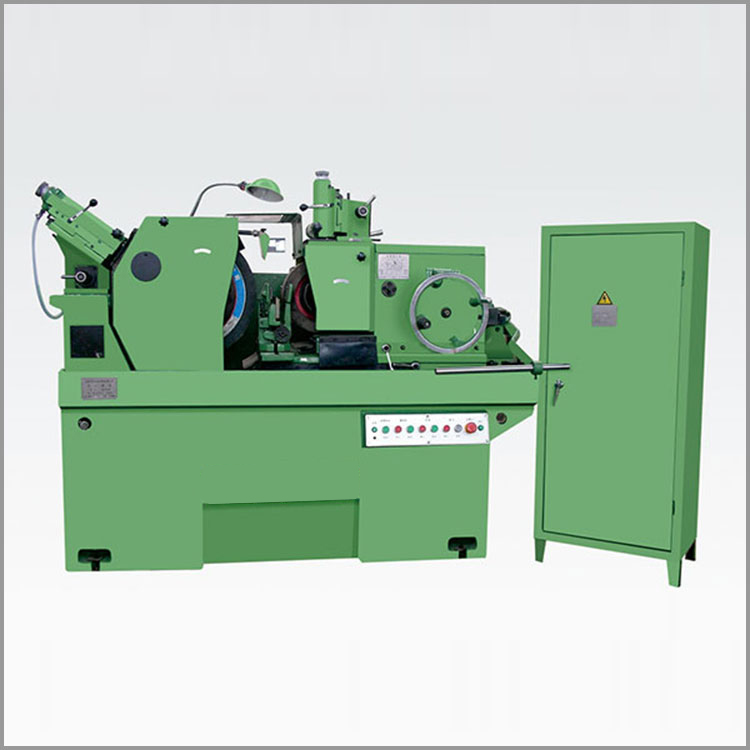

Key Features of This Machine Tool

★This machine tool is primarily used for the grinding of internal bores, step holes, and internal tapered holes of workpieces.

★The feed and compensation of the machine tool are executed by two independent transmission mechanisms. The feed system features a fixed-length grinding function, utilizing either manual or hydraulic feed methods.

★The machine tool is equipped with a quick-jump mechanism, so there's no need to manually re-zero the tool after exiting the grinding wheel for measurement or adjustment.

The workbench rapid return is equipped with a mid-stop mechanism, allowing the return distance to be adjusted as needed to minimize auxiliary time.

★The workbench's start handle is equipped with a safety interlock device, ensuring safety during loading, unloading, and measurement operations.

★The machine tool grinding wheel shaft operates at a high speed of 24,000 rpm to enhance the grinding of small holes.

★ Special Customer Orders. Variable speed drive for electric spindle for grinding small diameter bores.

★ This machine tool is equipped with an end face grinding device, capable of ensuring the perpendicularity of the workpiece's inner hole to the end face.



Machine Tool Model

M2110C

Grinding Hole Diameter (mm)

ф5-ф100

Grinding Depth (mm)

150

Workpiece Diameter (mm)

Inside the housing

ф260

Outer sheath

ф480

Bedside Swivel Angle (°)

20°

Workpiece Speed (r/min)

180-500 4-step increments

Grinding Wheel Speed (r/min)

10000、24000

End Mill Speed (r/min)

1600

Total Machine Power (kw)

4.1

Part Motor Power (kw)

0.45-0.75

Grinding Wheel Motor Power (kw)

2.2

Machine Tool Dimensions (mm)

2363×1260×1300

Machine Tool Weight (kg)

2000

Machine tool power supply

3N-50Hz 380V

Work Precision (as per standard specimen)

Inner Hole Roundness (μm)

2.5

Inner Hole Roundness (μm)

4

Internal bore surface roughness (μm)

Ra0.63
