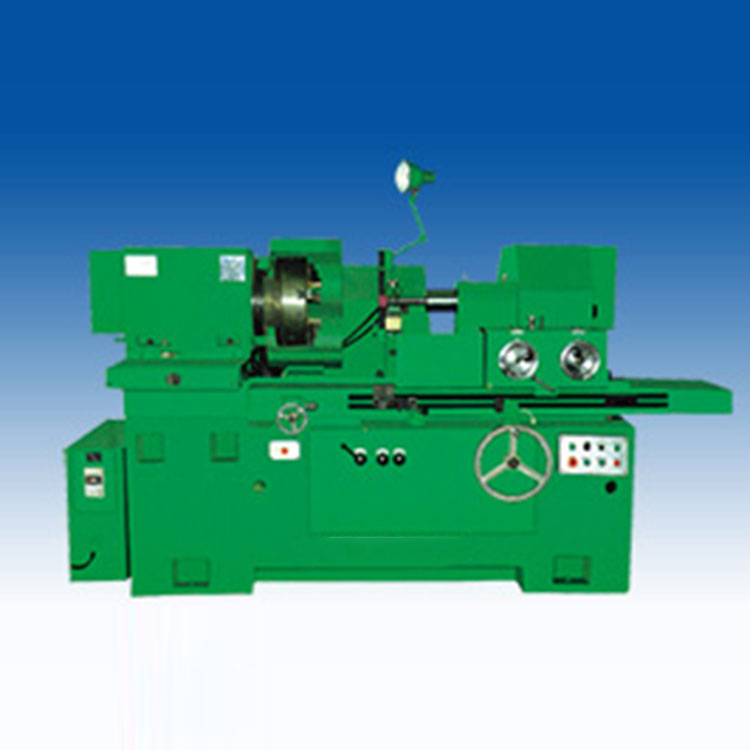

Key Features of This Machining Center

★This machine tool is primarily used for the grinding of workpiece internal bores, stepped holes, and internal conical holes.

★The feeding and compensation of machine tools are executed by two independent drive mechanisms. The feeding system features a fixed-length grinding function and operates via either manual or hydraulic feeding methods.

★The machine tool is equipped with a quick-jump mechanism, so there's no need to manually re-zero the tool after removing the grinding wheel for measurement or adjustment.

★ The workbench is equipped with a hydraulic switch valve for immediate safety during loading and unloading operations.

★Machine tools for special orders can be equipped with high-speed grinding wheel spindles at 1800 rpm, suitable for grinding requirements of holes with diameters ranging from 20 to 50mm.


Machine Tool Model M2120A Grinding Hole Diameter (mm) φ50-φ200 Grinding Depth (mm) 200 Workpiece Spindle Diameter (mm) Inside φ400, Outside φ600 Bed Swivel Angle (°) 30° Workpiece Speed (r/min) 100-500 (Variable) Grinding Wheel Speed (r/min) 4000-6000, 8000-11000 Total Power of Machine (kw) 8.6 Motor Power of Workpiece (kw) 2.2 Motor Power of Grinding Wheel (kw) 4 Overall Dimensions of Machine (mm) 3100×2120×1320 Machine Weight (kg) 3400 Working Precision (Based on Standard Test Piece) Inner Hole Roundness (μm) 3 Inner Hole Straightness (μm) 5 Surface Roughness (μm) Ra0.63
