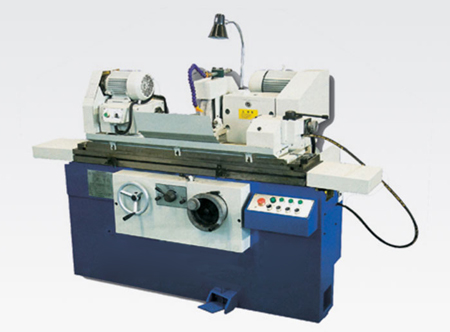

●This machine tool is an internal and external cylindrical grinding machine, suitable for grinding the outer cylindrical surface, outer end face, and inner hole of cylindrical or conical workpieces, especially for the processing of various bearing components.

● This machine tool's worktable features both hydraulic and manual longitudinal movement. The grinding wheel stand and headstock are rotatable. The outer diameter grinding wheel uses a diameter of 400mm, enhancing the grinding efficiency and the lifespan of the grinding wheel.

● The headstock is movable, the grinding wheel stand features micro feed, the hydraulic system employs a low-noise dedicated pump for smooth oil supply, the worktable hydraulic reciprocation has reversing function, enhancing the surface finish during cutting and grinding operations.


Key Technical Parameters

Model

M1420B Model


Specs

500 750

Center Height (mm)

125

Distance (mm)

520/770

Large workpiece rotating diameter (mm)

Ф250

Grinding Length (mm)

500/750

External Diameter Grinding Range (mm)

Ф8-ф200

Internal Hole Grinding Range (mm)

Hole diameter: φ13-φ100, Depth: 150

Part Weight (kg)

50

Workbench Rotation Range (mm)

-3°+7°

Outer diameter of abrasive wheel (mm)

Ф400×40×ф203

Grinding Wheel Large Line Speed (m/s)

35

Headstock, tailstock tapered hole (Morse taper)

4#or3#

Total Motor Capacity (kw)

5.8

Machine Tool Weight (kg)

2100/2200

Machine Tool External Dimensions (mm)

2200(2700)×（3100）×1600×1500

Work Precision

Grinding specimen accuracy

Roundness (mm)

0.0015



Cylindericity (mm)

0.005


Chuck precision for grinding test pieces

Roundness (mm)

0.0025



Roughness (μm)

Ra≤0.32


Precision grinding on the chuck's internal bore

Roundness (mm)

0.0025



Roughness (μm)

Ra≤0.63
