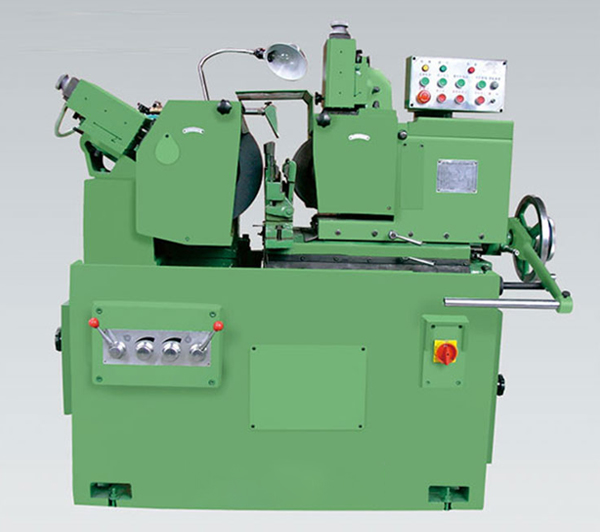

Machine Tool Models: M1040, M1050, M1080; Grinding External Diameter: Φ-Φ40, Φ5-Φ50, Φ5-Φ80

Cutting Diameter (mm) Φ7-Φ40 Φ5-Φ50 Φ5-Φ80 Cutting Length (mm) 140 120 180

Grinding Wheel Specification (mm): 120, 145, 140; PSA350×25×27, P400×150×203, P500×150×305; Guide Wheel Specification (mm): PSA250×25×75, PSA300×150×127, PSA300×150×127; Grinding Wheel Speed (r/min): 1870, 1668, 1300; Guide Wheel Speed (r/min) (corrected): 20~180, 20~200, 30~300; Guide Wheel Rotation Angle (°): -2~+4 within the vertical plane, -2~+5 within the horizontal plane; Handwheel Graduation Feeding Amount (mm): 0.002, 0.002, 0.005; Machine Power Supply (mm):

3N-50HZ 380V Grinding Wheel and Guide Wheel Center Line to Bracket Surface Height (mm) 190 220 210 Total Power of Machine Tool (kw) 9.23 13.85 17 Machine Weight (kg) 2000 2850 3650 Machine External Dimensions (mm) 1500×1300×1400 1940×1681×1480 1940×1600×1500 Working Precision (Standard Test Piece) Outer Circular Roundness (μm) 222 Outer Circular Cylinder Roundness (μm) 333 Outer Circular Surface Roughness (μm) Ra0.32 Ra0.32 Ra0.32
