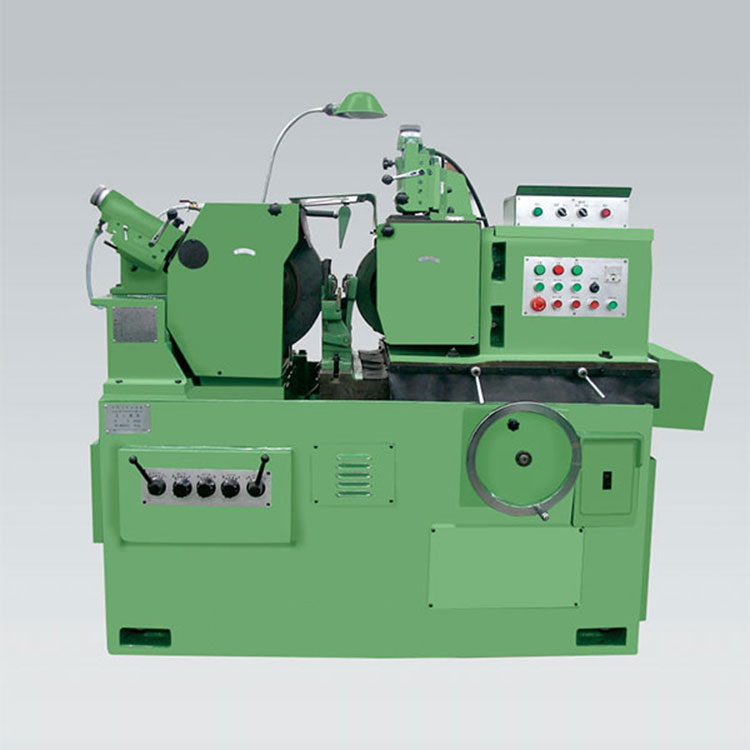

Machine Tool Models: M1040, M1050, M1080; Grinding Hole Diameter: Φ-Φ40, Φ5-Φ50, Φ5-Φ80

Cutting Diameter (mm) Φ7-Φ40 Φ5-Φ50 Φ5-Φ80 Length of Cut (mm) 140 120 180

Grinding Wheel Diameter (mm) 120 145 140 Wheel Specification (mm) PSA350×25×27 PSA400×150×203 PSA500×150×305 Guide Wheel Specification (mm) PSA250×25×75 PSA300×150×127 PSA300×150×127 Grinding Wheel Speed (r/min) 1870 1668 1300 Guide Wheel Speed (r/min) (Corrected) 20~180 20~200 30~300 Guide Wheel Rotation Angle (°) Vertical Plane -2~+4 -2~+5 -2~+5 Horizontal Plane 0~+3 -1~+3~+3 Handwheel Graduation Feed Amount (mm) 0.002 0.002 0.005 Machine Power Supply (mm)

3N-50HZ 380V Grinding Wheel & Guide Wheel Center Line to Bracket Surface Height (mm) 190 220 210 Total Machine Power (kw) 9.23 13.85 17 Machine Weight (kg) 2000 2850 3650 Machine External Dimensions (mm) 1500×1300×1400 1940×1681×1480 1940×1600×1500 Working Precision (Standard Test Piece) Inner Hole Roundness (μm) 222 Inner Hole Cylindericity (μm) 333 Inner Hole Surface Roughness (μm) Ra0.32 Ra0.32 Ra0.32
