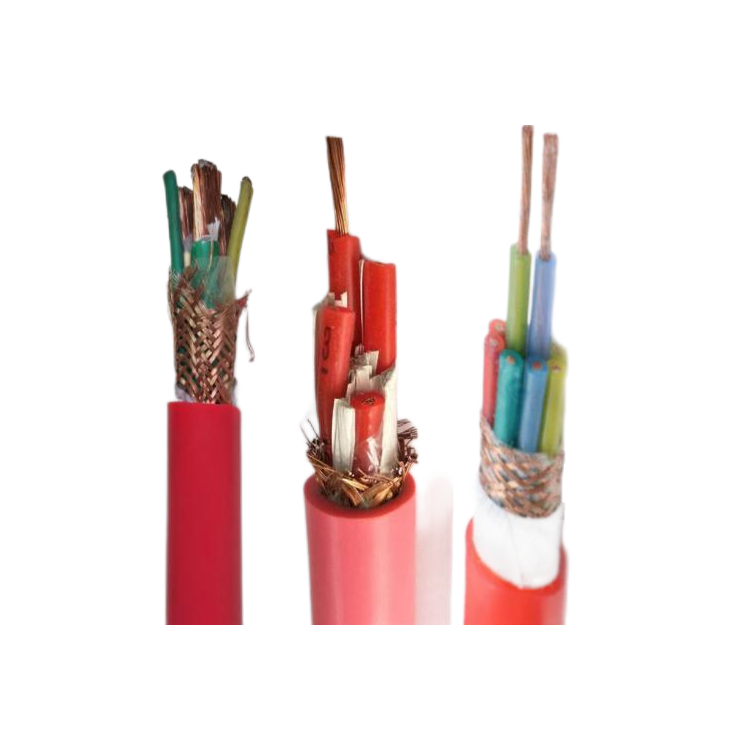

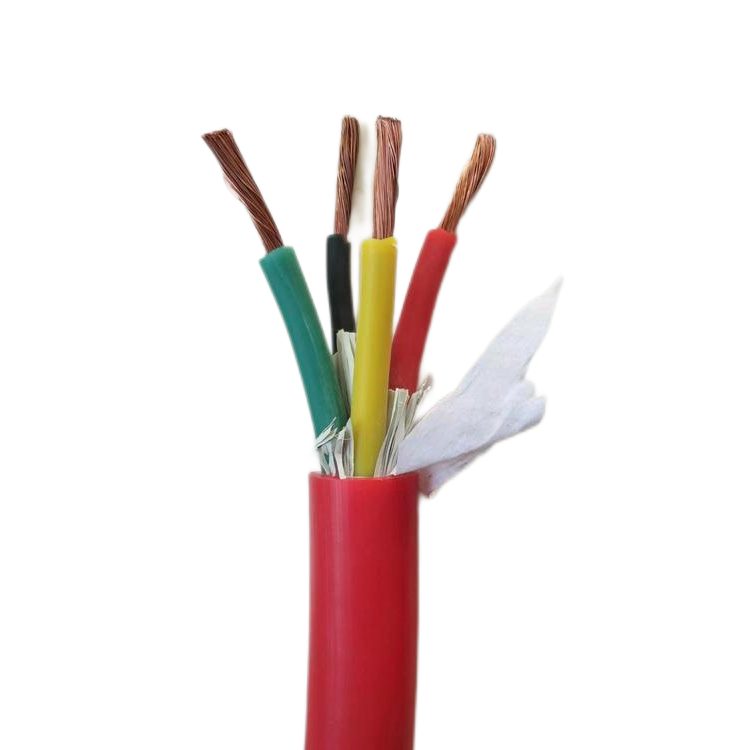

Anhui Tianming Cable Co., Ltd. - NH-KFFRP High-Temperature Cable, Refractory Cable, High-Temperature Shielded Cable, Fluoroplastic High-Temperature Wire for signal transmission lines in electrical instruments and automation control systems in the harsh environments of oil, chemical, power generation, metallurgical, and other industrial and mining enterprises, where temperatures are high or low, and in the presence of acids, bases, oils, water, and corrosive gases.

Product Execution Standard: GB9330-88

Three, Features
1. rated voltage for communication: 450/750V
2. Operating Temperature: Flame-retardant PVC Insulation and Sheath - 70℃ and 105℃
Fluoroplastic Insulation and Sheath; 200°C and 260°C
Cross-linked polyethylene insulation; 90℃
Low-smoke, halogen-free flame-retardant polyolefin; 70℃
Low-smoke, halogen-free flame-retardant cross-linked polyolefin at 90°C and 125°C.
3. Environmental Temperature: Flame-retardant PVC sheath - Fixed installation: -40℃, Non-fixed installation: -15℃
Fluoroplastic Insulation and Sheath - Fixed installation: -60°C, Non-fixed installation: -20°C

Polytetrafluoroethylene (F46) insulation does not exceed 200 degrees. Soluble (PFA) insulation does not exceed 260 degrees. Flame-retardant poly insulation and sheath at 70 and 105 degrees. Fluoroplastic insulation and sheath at 200 and 260 degrees. Cross-linked polyethylene insulation at 90 degrees.

High-temperature wire, featuring corrosion resistance, oil, strong acid, alkali resistance, and strong oxidizing agents; with electrical insulation properties, high voltage resistance, low high-frequency loss, non-absorbent to moisture, and high insulation resistance; boasts excellent flame and aging resistance, long service life.

Four, Product Model:

KFF-200, KFPF-200, KFF22-200, KFP1F-200, KFP1F22-200, KFPF22-200, types with a temperature rating not exceeding 200℃
KFF-260, KFPF-260, KFF22-260, KFP1F-260, KFP1F22-260, KFPF22-260 models do not exceed 260°C.
