Anhui Tianming Cable Co., Ltd. -- Computer Cable ZRC-DJVP2VP2-22: Armor Computer Cable for voltages up to 500V, suitable for electronic computers and automatic instruments with high requirements for anti-interference.

Two, Product Features:


This product is generally used for applications requiring static shielding, such as indoor installations, cable trenches, and pipelines. It boasts good voltage resistance, a low dielectric constant, and minimal impact from temperature and frequency variations on dielectric loss.

Not only does it meet the requirements for transmission performance, but it also ensures the cable's lifespan. To reduce mutual interference between circuits and external interference, the cable must be designed with a shielding structure.

Shielding materials include tin-plated or untinned copper wires, copper strips, copper-plastic composite strips, and aluminum-plastic composite strips, etc.

Three, Product Execution Standard: Refer to JB/T 13486-2018



Four, Features

Rated Working Voltage: 300/500V

The cable is designed for long-term operation at temperatures not exceeding 70°C.

In case of a short circuit (with a duration not exceeding 5 seconds), the temperature of the cable conductor shall not exceed 160°C.

The ambient temperature during cable laying should not be below 0°C; preheating is required in advance.

Five, Cable Name - Computer Cable

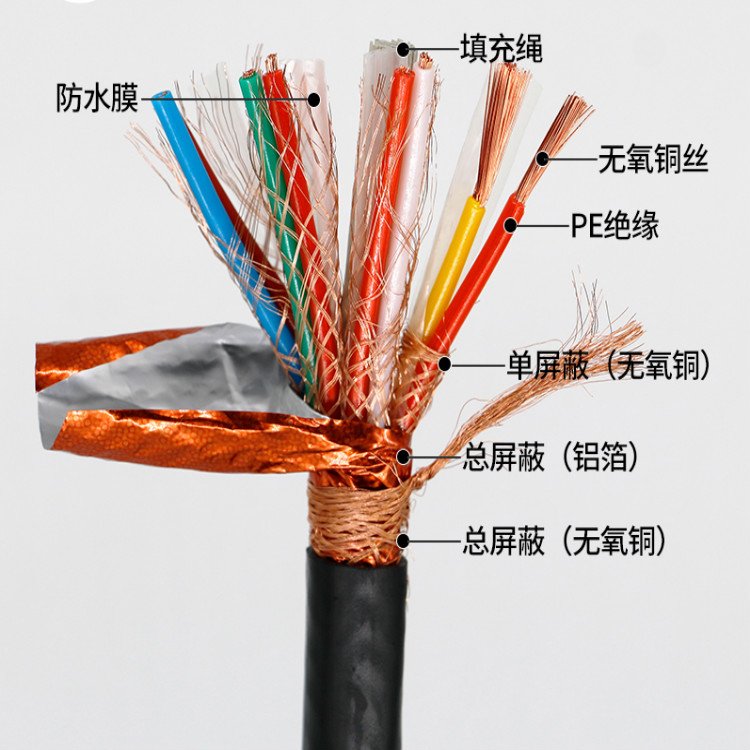

Cable Shielding --- Copper Wire Braid Shield P --- Copper Strip Shield P2 --- Aluminum-Plastic Composite Tape Shield P3

Cable Insulation --- Poly-V --- Polyethylene Y --- Cross-linked Polyethylene YJ --- Fluoroplastic F, F46

Cable Armor --- Steel Tape Armor 22, 23 --- Steel Wire Armor 32, 33, 42, 43

Cable conductor --- Single conductor A --- 7 conductors B --- Multiple conductors R

Cable Flame Retardant --- Standard Flame Retardant ZR (ZRA, ZRB, ZRC) --- Low Smoke Halogen-Free Flame Retardant WDZ, DWZ

Cable fire-resistant --- Cable fire-resistant NH

Explosion-proof Cable --- Cable Explosion-proof IA

Six, Basic Model and Name Model Description:

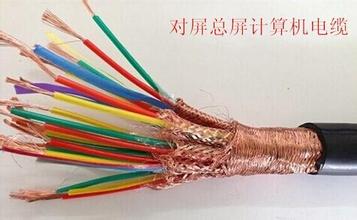

DJYPVP: Polyethylene insulated twisted copper wire braid and overall shielding sheathed computer shielding cable

DJYPV: Insulated with polyethylene, twisted copper wire braid shielded, sheathed computer cable

DJYPVPR: Insulated Twisted Copper Wire Braid Sheathed with Separate and Overall Shielding Polyethylene Jacketed Flexible Computer Cable

DJYPVR: Polyethylene insulated twisted copper wire braid shielded soft computer cable with sheath

DJYVP: Insulated with polyethylene, twisted copper wire braid, overall shielded, polyethylene jacketed, computer controlled cable

DJYVPR: Polyethylene insulated twisted copper wire braid overall sheathed soft computer cable
