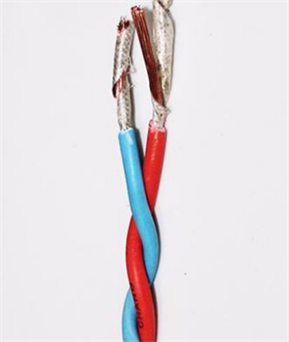

Anhui Tianming Cable Co., Ltd. --- NH-RVSP flame-retardant sheathed twisted pair cables are suitable for connecting lines in control, monitoring circuits, and protective lines with rated voltages U0/U 450/750V and below. They are mainly used in environments requiring electromagnetic wave interference prevention and shielding.

Section II: Product Standards:

GB9330-1998

Three, Terms of Use

The long-term allowable operating temperature for the cable conductor is 70°C, and the installation allows for a bending radius for the cable laying.

Unarmored cables should not be less than 6 times the cable's outer diameter.

2. Cables with armored or copper braid shielding should have a diameter at least 12 times the cable's outer diameter.

3. Soft cables with a shielding layer structure should be less than 6 times the cable's outer diameter.

Fire-resistant sheathed twisted pair wire product specifications:
Shielded Wire
Model Name: NH-RVSP
Spec: 2 x 1.5mm²
Copper (Oxygen-Free)
Rated Voltage: 300V/300V
Whole Disk Length: 200M
【Standard of Execution】GB/T5023-2008
