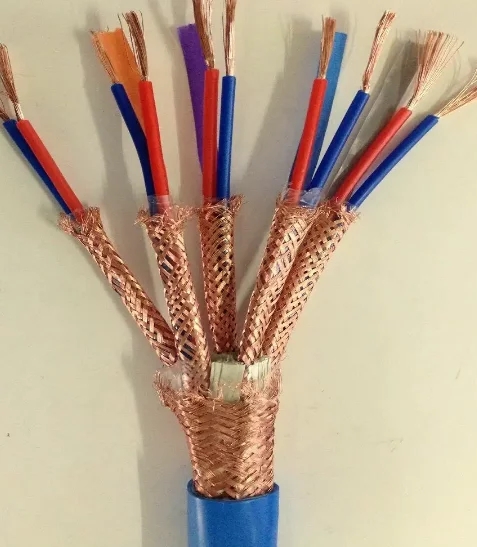

Anhui Tianming Cable Co., Ltd. --- ZBN-DJYJVPR32 Flame-retardant Armored Computer Cable. This cable is suitable for computer connection lines with alternating current rated voltage of 500V or less and direct current of 1000V or less, and can also be used as connection lines for electrical equipment, instruments, and distribution devices.

Two, Cable Name --- Computer Cable

Cable Shielding --- Copper Wire Braid Shield P --- Copper Strip Shield P2 --- Aluminum-Plastic Composite Tape Shield P3

Cable Insulation --- Poly-V --- Poly-Y --- Cross-linked Poly-YJ --- Fluoroplastic F, F46

Cable Armor --- Steel Strip Armor 22, 23 --- Wire Armor 32, 33, 42, 43

Cable Conductors --- Individual Conductor A --- 7 Conductors B --- Multiple Conductors R

Cable Flame Retardant---General Flame Retardant ZR (ZRA, ZRB, ZRC)---Low Smoke Halogen-Free Flame Retardant WDZ, DWZ

Cable Fire Resistant --- Cable NH Fire Resistant

Cable Explosion-Proof --- Cable Explosion-Proof IA
Armored Structure: 22 - Steel Strip Armored Outer Sheath
23 - Steel-braided outer sheath
32 - Circular galvanized low carbon steel wire wrapped armor with extruded outer sheath
33 - Round Galvanized Low Carbon Steel Wire Wrapped Armor with Polyethylene Outer Sheath
Screening Material: P - Copper Wire Braid
P1 - Tin-plated Copper Wire Braiding
P2 - Copper-plastic composite tape wrapping
P3 - Aluminum-plastic composite tape wrapping
Conductor Type: A - Single Conductor (Omitted from Model Number)
B——Seven-core composite conductor
R - Multi-strand braided

3. Product Performance:

The cable can operate in an environment ranging from -40℃ to +50℃, with the core temperature of the cable not exceeding 65℃.
Conductor cross-section ranges from 0.5 to 6mm² (1×φ1.01), with a core count of 2 to 37 pairs.
Electrical performance requirements:
The finished cable conductor core should not exceed a direct resistance rate of 0.0184Ω at 20°C.
2. The finished cable cores/core, core/sheath should withstand 2000VAC for 5 minutes. The delivered cable length should be no less than 50m.
