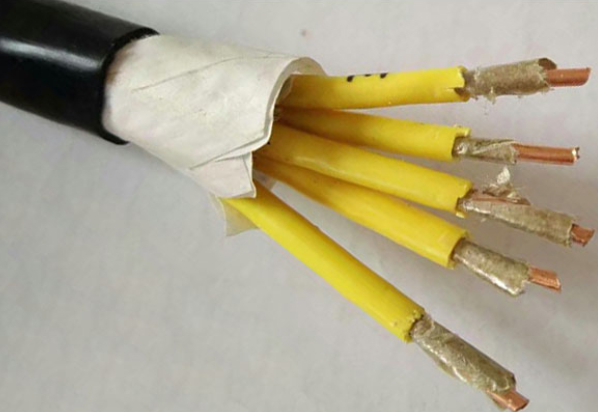

Anhui Tianming Cable Co., Ltd. --- ZBN-DJYJVPR32 Flame-retardant Sheathed Computer Cable. This cable is suitable for computer connection lines with alternating current rated voltage of 500V or below, or direct current of 1000V or below. It can also be used as connection lines for electrical appliances, instruments, and distribution equipment.

Two, Cable Name - Computer Cable

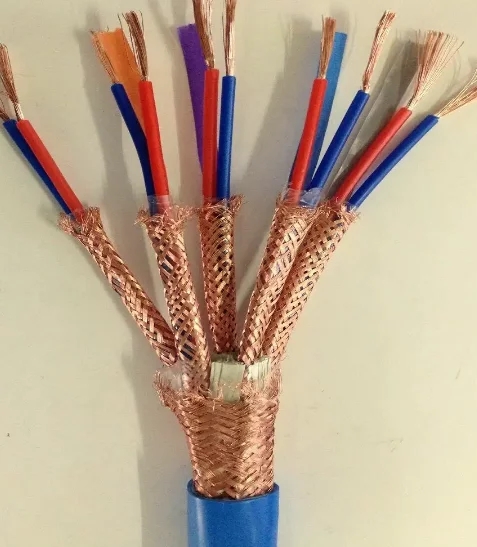

Cable Shielding---Copper Wire Braid Shield P---Copper Strip Shield P2---Aluminum-Plastic Composite Tape Shield P3

Cable Insulation --- Poly-V --- Poly-Y --- Cross-linked Poly-YJ --- Fluoroplastic F, F46

Cable Armor --- Steel Strip Armor 22, 23 --- Wire Armor 32, 33, 42, 43

Cable Conductors - Single Conductor A - 7 Conductors B - Multiple Conductors R

Cable Flame Retardant - Standard Flame Retardant ZR (ZRA, ZRB, ZRC) - Low Smoke Halogen-Free Flame Retardant WDZ, DWZ

Cable Flame Retardant---Cable Flame Retardant NH

Explosion-proof Cable --- Cable Explosion-proof IA
Armored Structure: 22 - Steel Tape Armored Outer Sheath
23 - Steel-clad Outer Sheath
32 - Circular galvanized low carbon steel wire spiral armor with outer sheath
33 - Round galvanized low-carbon steel wire stranded armor with polyethylene outer sheath
Sheath Material: P - Copper Wire Braid
P1 - Tin-plated Copper Wire Braid
P2 - Copper-plastic composite tape wrapping
P3 - Aluminum-plastic composite tape wrapping
Conductor Type: A - Single Conductor (Omitted in Model Number)
B——Seven-strand composite conductor
R - Multi-strand braided

Three, Product Performance:

The cable can operate in an environment ranging from -40℃ to +50℃, with the core temperature of the cable not exceeding 65℃.
Conductor cross-section ranges from 0.5 to 6 mm² (1 × φ1.01), with 2 to 37 pairs available.
Electrical performance requirements:
The finished cable conductor core should have a direct resistance rate not exceeding 0.0184Ω at 20°C.
2. The cores/core and core/sheath of the finished cable should be able to withstand 2000VAC for 5 minutes. The delivery length of the cable should not be less than 50m.
