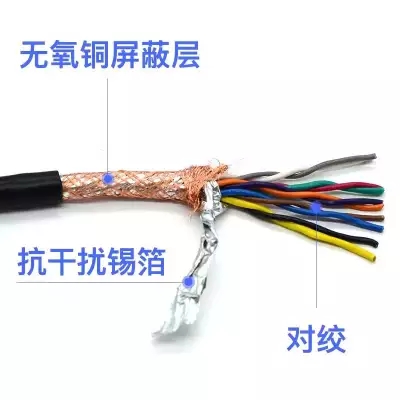

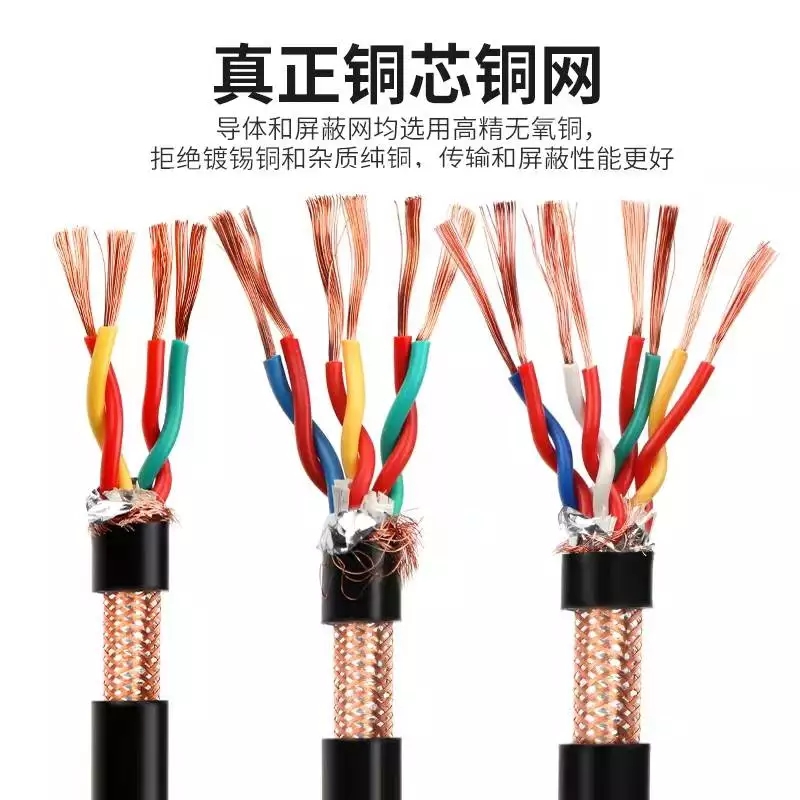

One, this product features low-voltage capacitors and low inductance, along with excellent shielding and anti-interference capabilities, making its explosion-proof performance superior to that of general computer and control cables. The low-smoke, halogen-free flame-retardant computer cables emit minimal halogen compounds when burned, thereby avoiding damage to people and equipment. The cable materials have significantly improved resistance to aging, ultraviolet radiation, and other forms of radiation, thereby extending the cable's service life. Utilizing structures such as twisted pairs, shielding pairs, overall shielding (or three-wire group twisting, group shielding, and group overall shielding), it boasts low dielectric loss, strong signal transmission capabilities, and excellent anti-interference performance. It can reliably transmit weak analog or digital signals and is widely used in computer systems or automated instrument devices for detection and control in power generation, metallurgy, petrochemicals, light industry, textiles, and other departments, as well as general industrial computer applications.

II. Usage Features: 1. The cable can operate at a long-term working temperature of 90℃. 2. Cable laying temperature should not be below 0℃; Low-smoke, halogen-free flame-retardant computer cables: metal strip wrap shielding or steel wire, steel strip armored cables should have a thickness not less than 12 times the cable outer diameter; Non-armored flexible cables or woven shielding cables should have a thickness not less than 6 times the cable outer diameter. 3. Long-term allowed operating temperature for the sheath: poly insulation at 70℃, cross-linked poly insulation at 90℃. Key technical features: 1. Conductors of finished cables are straight. 2. At 20℃绝缘 resistance: For cables with rated voltage levels of 3kV WDZ-DCYJ-125, WDZ-DCYJ/B-125, and WDZ-DCYJ/B-150, the insulation resistance should be not less than 1010Ω.km. 3. Finished cables withstand the following AC voltage tests without breakdown: AC voltage test: rated voltages of 500V, 750V, 1kV, 1.5kV, 3kV; tests of 2 kV/15min, 3.5kV/15min, 6kV/15min, 12kV/15min. 4. Combustion gas release test for WDZ-DCYJR-125, WDZ-DCYJR/B-125, and WDZ-DCYJR/B-150 cables: total halogen gas of 5mg/g; pH value ≥ 4.3; conductivity ≤ 10μS/mm. 5. All WDZ-DCYJR-125, WDZ-DCYJR/B-125, and WDZ-DCYJR/B-150 cables undergo a single vertical combustion test.

Three, relevant technical specifications: Refer to IEC 189 and British BS 5308 standards

Four, Product Model and Name
WDZ-DJYPV: Shielded Low Smoke Halogen-Free Flame Retardant Cable for Electronic Computers Using Braided Insulated Copper Wire
WDZ-DJYVP: Shielded with braided poly-insulated copper wire, low-smoke, halogen-free, flame-retardant jacket for electronic computers cable
WDZ-DJYPVP: Low-smoke, halogen-free, flame-retardant jacket for electronic computers, with shielded and total shielded braided copper insulated wires
WDZ-DJYPVR: Low-smoke halogen-free flame-retardant sheathed soft structure cables for electronic computers, with woven copper wires for insulation and shielding
WDZ-DJYVPR: Shielded Low-Smoke, Halogen-Free Flame Retardant Soft Structure Cable for Electronic Computers
WDZ-DJYPVPR: Low-smoke, halogen-free flame-retardant soft structure wire braided with shielded and total shielded cables for electronic computers
WDZ-DJYP2V: Sheathed Poly-insulated Copper Tape, Low Smoke Halogen-free Flame-retardant Cable for Electronic Computers
WDZ-DJYVP2: Poly-insulated Copper Tape Overall Shielded Low Smoke Halogen-Free Flame Retardant Cable for Electronic Computers
WDZ-DJYP2VP2: Low-smoke, halogen-free flame-retardant cable for electronic computers with composite insulation and total shielding copper tape
WDZ-DJYP3V: Sheathed polyolefin insulated aluminum-plastic composite tape, flame-retardant, low-smoke, halogen-free, for electronic computers cable
WDZ-DJYVP3: Poly-insulated Aluminum-Plastic Composite Tape, Overall Shielded, Low Smoke, Halogen-Free Flame Retardant Cable for Electronic Computers
WDZ-DJYP3VP3: Flame-retardant, halogen-free, low-smoke屏蔽聚绝缘铝塑复合带总屏蔽 electronic computer cable
