Anhui Tianming Cable Co., Ltd.

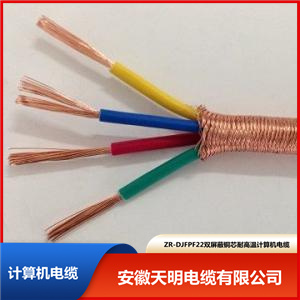

One, High-temperature resistance 200-degree computer cable ZRA-JFFRP2-22 Fluoroplastic cable is suitable for AC U0/U 300/500V power, metallurgy, petrochemical industries, and special requirements for high and low temperature resistance, corrosion resistance, and oil acid alkali prevention. It is used as control wires for automatic control systems, computer distributed control systems, and automatic control systems dominated by computers, as well as for detection instruments and meters using computer cables.

Section 2: High-Temperature Computer Cable (ZR) DJF46PF46P-2*2*1.5, Product Standard: TIC W-2009; Flame Retardant and Fireproof Performance Test conducted according to GB12666-90 standard.

III. Features

交流额定电压: U0/U 300/500V

2. High operating temperature: Polyallfluorinated ethylene (F46) insulation not exceeding 200℃; Soluble polytetrafluoroethylene (PFA) not exceeding 260℃; Silicone rubber insulation not exceeding 180℃.

3. Low-temperature Environment: Insulating Sleeves - Fixed for temperatures down to -15°C.

4. Cable Installation Temperature: Polyethylene not below 0°C; Fluoroplastic and silicone rubber sheath not below -25°C.

5. Bend Radius Allowance for Cable: For unarmored cable, the minimum is 6 times the cable's outer diameter; for cable with copper foil shielding or steel tape armor, it's 12 times the cable's outer diameter.
Computer Cable Model
Computer Cable
DJGGP
Silicone rubber insulated copper wire braid overall shield silicone rubber sheath computer cable
DJGGPR
Silicone rubber insulated copper wire braid overall shielding silicone rubber sheath computer flexible cable
DJGGP2
Silicone rubber insulated copper tape, overall shielded with silicone rubber sheath, computer cable
DJGGP2R
Silicone rubber insulated copper tape, overall shielded with silicone rubber jacket, computer soft cable
DJGGP3
Silicone rubber insulated aluminum-plastic composite tape, total shielded with silicone rubber sheath, computer cable
DJGGP3R
Silicone rubber insulated aluminum-plastic composite tape, total shielding silicone rubber sheath, computer soft cable
DJGPG
Silicone rubber insulated copper wire braid shielded silicone rubber jacketed computer cable
DJGPGR
Silicone rubber insulated copper wire braid shielded silicone rubber sheath computer flexible cable
DJGPGPR
Silicone rubber insulated copper wire braid shielded and overall shielded silicone rubber sheathed computer soft cable
DJGPGP
Silicone rubber insulated copper wire braid shielded and overall shielded silicone rubber sheathed computer cable
DJGP2G
Silicone rubber insulated copper tape with shielded silicone rubber sheath computer cable
DJGP2GR
Silicone rubber insulated copper tape, shielded with silicone rubber jacket, computer soft cable
DJGP2GP2
Silicone rubber insulated copper tape with individual shielding and overall shielding silicone rubber sheath for computer cables
DJGP2GP2R
Silicone rubber insulated copper tape with separate and overall shielding silicone rubber sheath computer flexible cable
DJGP3G
Silicone rubber insulated aluminum-plastic composite tape with shielded silicone rubber jacket computer cable
DJGP3GR
Silicone rubber insulated aluminum-plastic composite tape, shielded silicone rubber jacketed computer soft cable
DJGP3GP3
Silicone rubber insulated aluminum-plastic composite tape with shielded and total shielded silicone rubber sheath for computer cables
