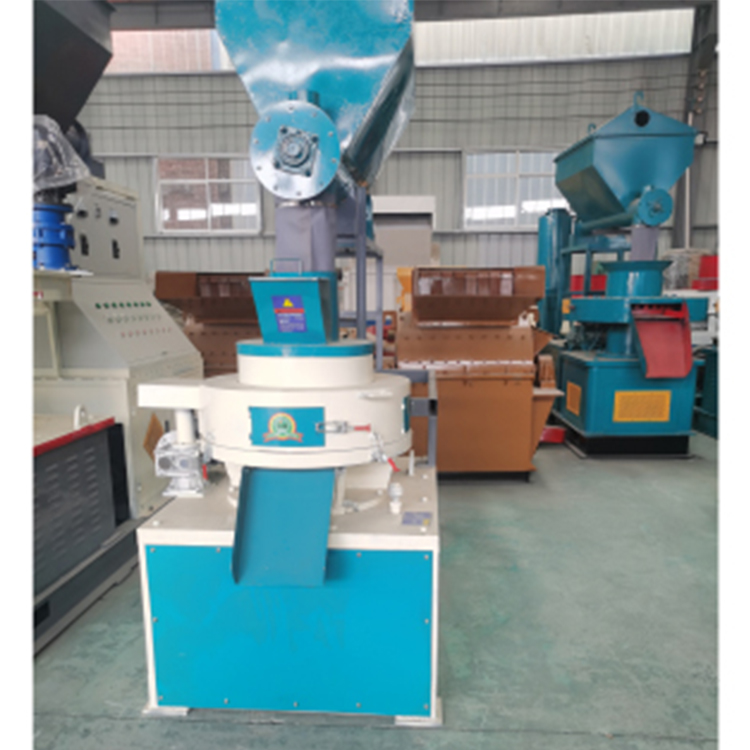

Biomass Briquette Machine

Introduction to Biomass Briquetting Machine:

The biomass briquette machine is a device that crushes and compresses biomass materials like straw into eco-friendly fuel or feed. The products pressed by the biomass briquette machine are used as feed or fuel. Through practical use and continuous improvements, the biomass briquette machine has become increasingly refined. It boasts high automation, high yield, low electricity consumption, simple operation, and no environmental pollution. Therefore, the biomass briquette machine can be widely used for compressing various agricultural straw and small branches into biomass materials.

Features of Biomass Briquetting Machine:

The biomass briquetting machine is highly automated, with high yield, low electricity consumption, and simple operation. Diesel engines can be used instead if no power equipment is available.

The biomass briquette machine has a strong material adaptability: Suitable for molding various biomass raw materials, from powdery to 50mm in length, the biomass briquette machine can process and shape them all.

Biomass Briquette Press Roller Automatic Adjustment Function: Utilizes the principle of bidirectional rotation of thrust bearings to automatically adjust the pressure angle, ensuring that the material does not clump together or jam, thus guaranteeing stable discharge and shaping.

The biomass briquetting machine is easy to operate and convenient to use: with a high degree of automation, requires minimal labor, and can be fed manually or automatically via a conveyor.

Biomass briquette machine working principle:

Composed of parts such as the feeding conveyor, compressor, and discharge machine. The compressor consists of the frame, motor, feed inlet, transmission system, pressure roller, annular mold, electric heating ring, and discharge outlet.

Operating Principle: The prepared straw or forage is chopped or shredded to a length of less than 50mm and the moisture content is controlled between 10% to 25%. The material is then conveyed into the feed port by the feeding conveyor. Through the rotation of the main shaft, the pressure roller is driven, and with the self-rotation of the roller, the material is forced out in block form through the mold holes and falls out of the discharge port. After cooling (moisture content not exceeding 14%), it is bagged and packaged.

Structural Features: 1. The motor drives the reducer, which in turn rotates the main shaft. This shaft then powers the roller, making the structure simple and easy to maintain; 2. The radial gap adjustment between the roller and mold is convenient, ensuring proper spacing between the two rollers and the mold; 3. Additional upper and lower electrical heating rings are added, which can heat the ring mold, facilitating material shaping.

Biomass Briquette Machine Production Process:

Crushed → Dried (Optional for low-moisture content, depending on the briquetting machine type) → Transported → Molding → Stored as finished product.
