Product Features
Automatic glue application on paper, automatic temperature control, 24-hour timer. Production line suction device prevents bending and bubbling of the paper, uses flying shear paper feeding, heat-melt adhesive (animal glue) is hygienic and environmentally friendly, reusable to save costs, speed adjustable. This machine is mainly designed for the stopping and positioning after paper lamination, effectively avoiding the production of a large number of defective products due to misalignment or offset during the movement of the conveyor belt. The stopping time can be set arbitrarily. The machine uses high-precision photoelectric and color mark sensors for control, ensuring accuracy.

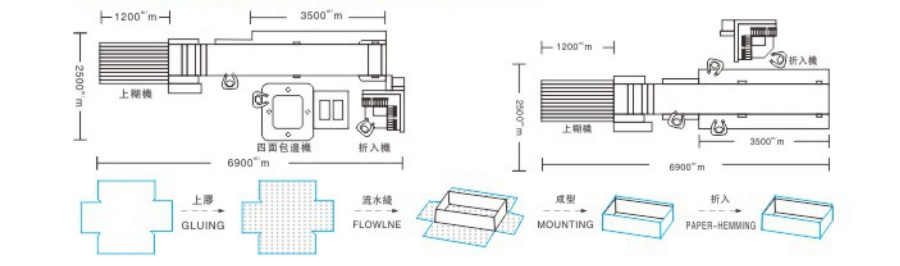

Process Flow
Technical Specifications
| Model | TYPE | XY-650A | XY-750A | XY-850A |
| Paper width | Case size | W80-600mm | W80-700mm | W80-800m |
| Paper thickness | Sheet thickness | 80-250g | 80-250g | 80-250g |
| Curing Rate | Production speed | 7-40units/minute | 7-40units/minute | 7-40units/minute |
| Gas Source Requirements | Air Supply | 0.6~0.8Mpa | 0.6~0.8Mpa | 0.6~0.8Mpa |
| Power | Heater required | 3HP/380V | 3HP/380V | 3HP/380V |
| Electrical heating power | Electric power | 4kw | 4kw | 4kw |
| Mechanical dimensions | Machine dimension | 1650×1100×6350 | 1650×1200×6350 | 1650×1300×6350 |
| Mechanical weight | Machine weight | Approximately 1,200 kg | Approximately 1,400 kg | Approximately 1,600 kg |
Due to ongoing improvements in product design, the above technical specifications are for reference only. No separate notice will be given of any changes.
