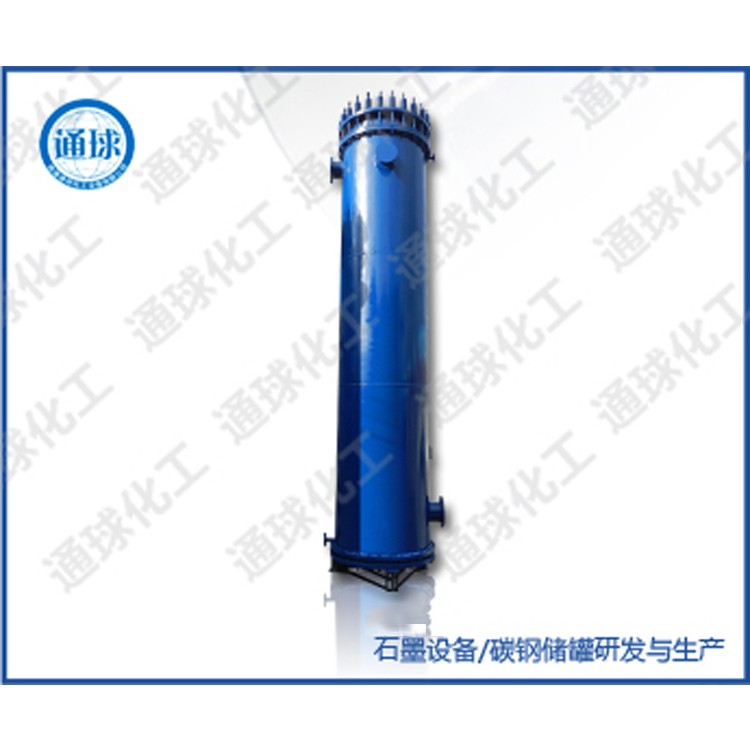

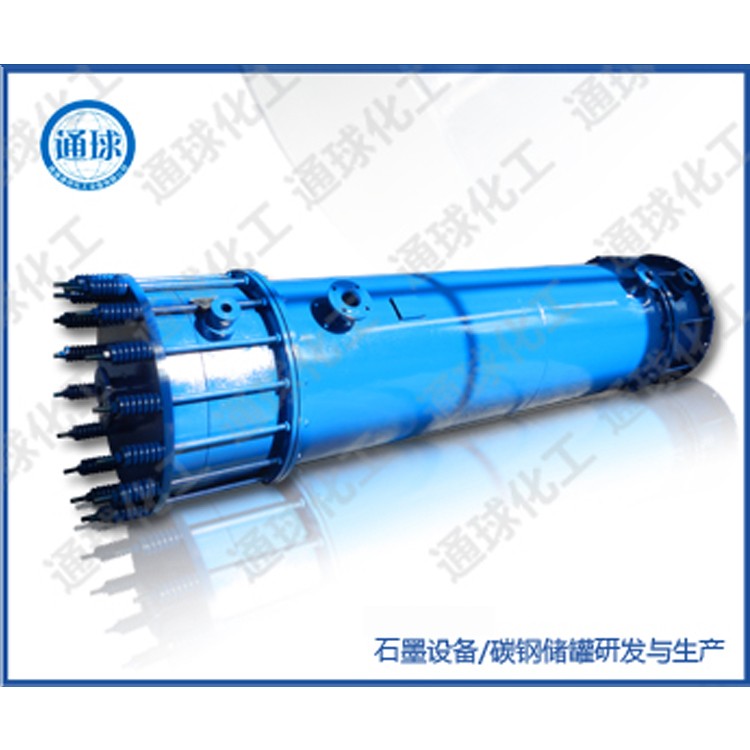

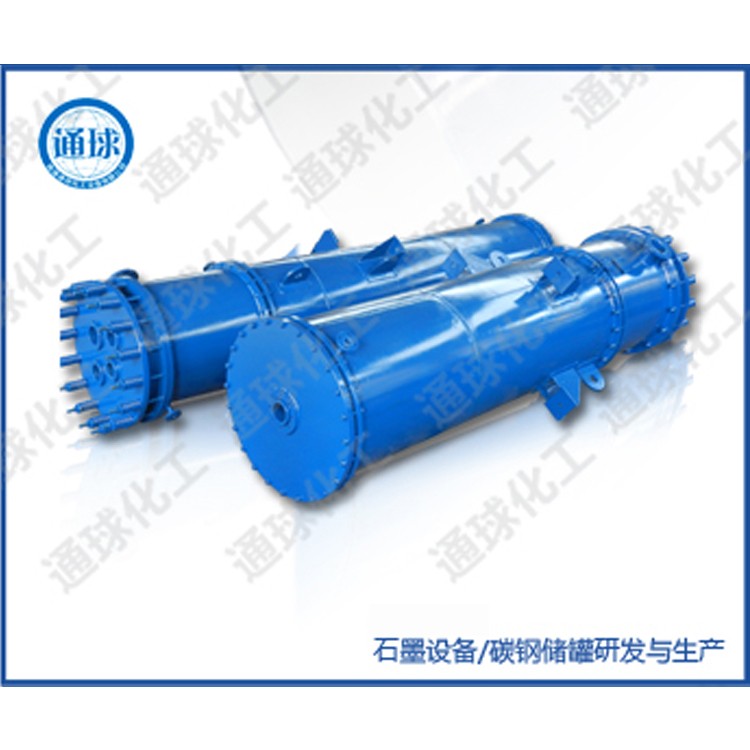

GH Type Floating Head Shell and Tube Graphite Heat Exchangers are divided into two series: GHA (with tube inner and outer diameters of 22/33) and GHB (with tube inner and outer diameters of 36/50), sharing similar structures. The heat exchange tubes have a smooth surface, low fluid flow resistance, and are not prone to crystalline or scaling deposits. In addition to the listed specifications, our factory produces various models from GHA1400-395 to GHA1800-810 and GHB1200-200 to GHB2000-660. We can also design and manufacture special products with bidirectional corrosion resistance and multi-pass shell or tube designs as per process requirements. Products with gas-liquid separators are denoted with an (F) at the end of the model number, please specify when ordering.
Technical Specifications
Shell Side Tube Side
Design Pressure MPa 0.3Dn ≤ 1100 0.3Dn ≤ 900
0.2Dn<=1100 0.2Dn<=900
Design Temperature °C: 130 (Cooling) / 120 (Heating)
Technical Standard: HG/T3188-2000
