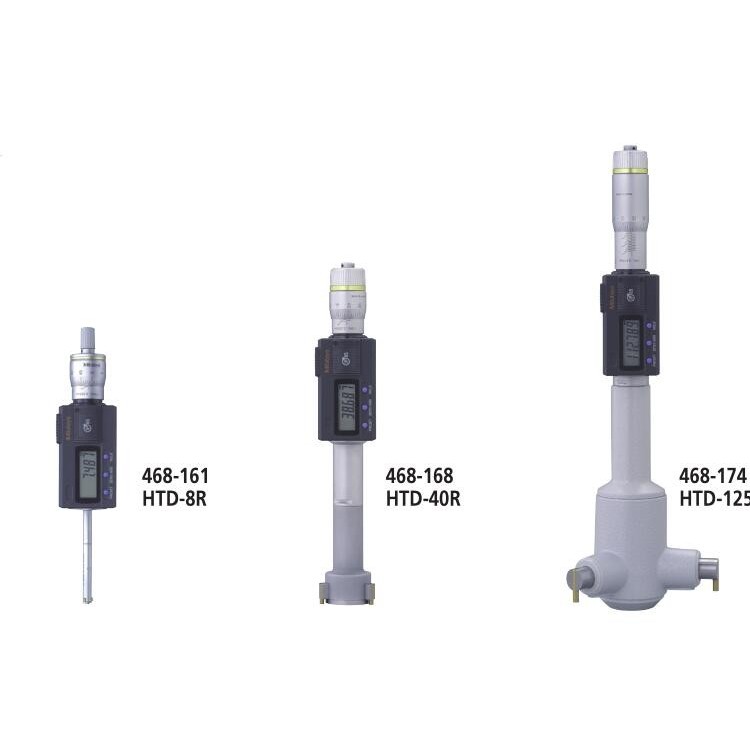

Mitutoyo Sankyo Three-Jaw Type Di
Negotiable
Japanese Magnescale Magnetic Scal
Negotiable
Mitutoyo's Mitutoyo Two-Jaw Style
Negotiable
Mitutoyo Sine Bar Micrometer 331-
Negotiable
Mitutoyo Triplet 500-150-30 Digit
Negotiable
Japan Magnescale Magnetic Scale S
Negotiable
Vanhao Projector CPJ-3015Z Profil
Negotiable
Japanese Magnescale Reading Head
Negotiable
Mitutoyo Caliper 123-105 Millimet
Negotiable
Mitutoyo SAE Bore Gage 526-163-21
Negotiable

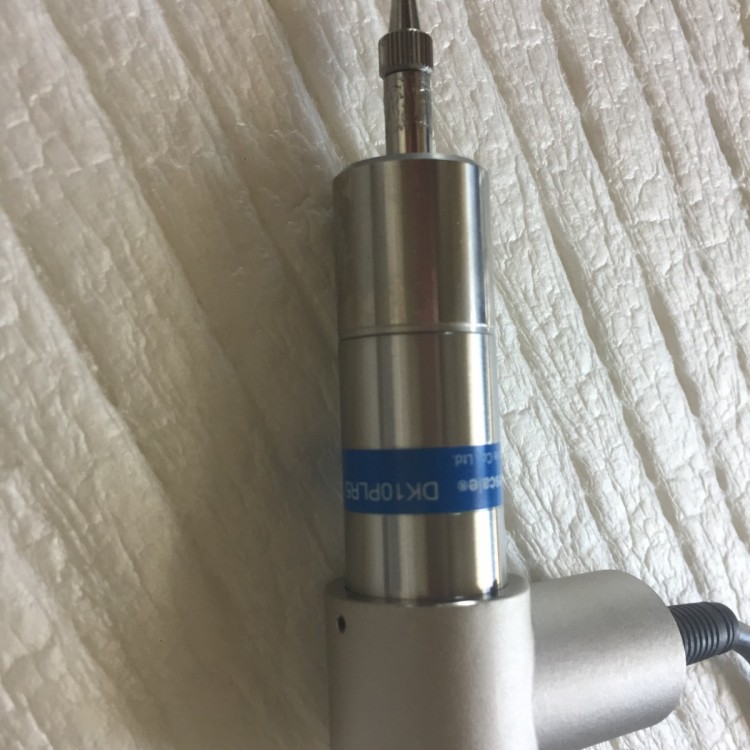

Japan Magnescale Displacement Sensor DK10PLR5
Measurement Range: 10mm, 25mm, 50mm, 100mm, 155mm, 205mm
Resolution: 0.5 μm
Accuracy: 2μm p-p to 6μm p-p (varies by model)
Dustproof, drip-proof, and oil-resistant structure. Good environmental resistance (Type P).
High Measuring Force (DK10/25/50/100P models): 4.9 ~ 9.3 N (varies by model)
Low measurement force (DK10/25/50/100N models): 0.3 ~ 2.7 N (varies by model)
With the included magnetic吸附式测头, it can be attached to the moving platform for measurement (DK155 / 205).
Built-in origin
Output Signal: A/B phase (pulsed), Origin (differential line driver signal with output voltage difference)
| Main Specifications | ||||
|---|---|---|---|---|
※1 Resolution settings are required when connecting to the LT30 series, MG series, and LY70 series. Please refer to the respective user manuals for details. Changes to the content will be made without prior notice. | ||||
| Model | DK10NR5 | DK10PR5 | DK10PLR5 | |
| Output | Output A/B/Z differential line driver signals (compliant with EIA-422) | |||
| Resolution※1 | 0.5μm | |||
| Measurement Range | 10mm | |||
| Accuracy (at 20℃) | 2μm p-p | |||
| Measurement Force (at 20℃) | Upward | 0.3 ±0.25 N | 4.9 N or less | |
| Lateral | 0.6 ±0.3 N | 4.9 N or less | ||
| Downward | 0.8 ±0.35 N | 4.9 N or lower | ||
| Origin | 1. At a position of main shaft movement ±0.5mm from 1mm | |||
| Response Speed | 250m/min | |||
| Vibration-resistant | 150m/s2 (10 ～ 2000Hz) | |||
| Impact-resistant | 1500m/s2 (11ms) | |||
| Protection Class | IP50 | IP64 | ||
| Operating Temperature Range | 0 ～ 50°C | |||
| Storage Temperature Range | −20 ～ 60°C | |||
| Power Voltage | DC +5V ±5% | |||
| Power Consumption | 1K or less | |||
| Output Cable Length | Approx. 2.5 meters | |||
| Central control pipe diameter | φ20 0‒0.013 mm | |||
| Quality ※2 | Approximately 230g | |||
| Measurement Head | Super-hard spherical DZ-122 (mounted with M2.5 screws) | |||
| Accessories | Instruction Manual, +PM4 x 5 screws (2 pcs) | |||
