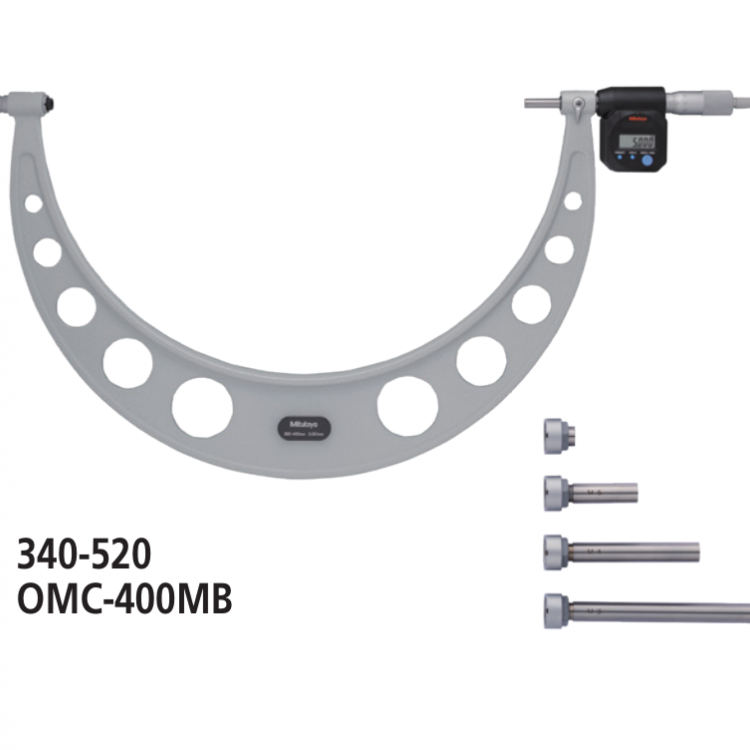

Mitutoyo 340-252-30 Outside Diame
Negotiable
Mitutoyo 345-250-30 Caliper for M
Negotiable
Mitutoyo Sanyo Three-Jaw Hole Cal
Negotiable
Mitutoyo Standard Inside Micromet
Negotiable
Mitsubishi Mitorayogo Outside Mic
Negotiable
Japanese Magnescale Magnetic Scal
Negotiable
Wan Hao Automatic Image Measureme
Negotiable

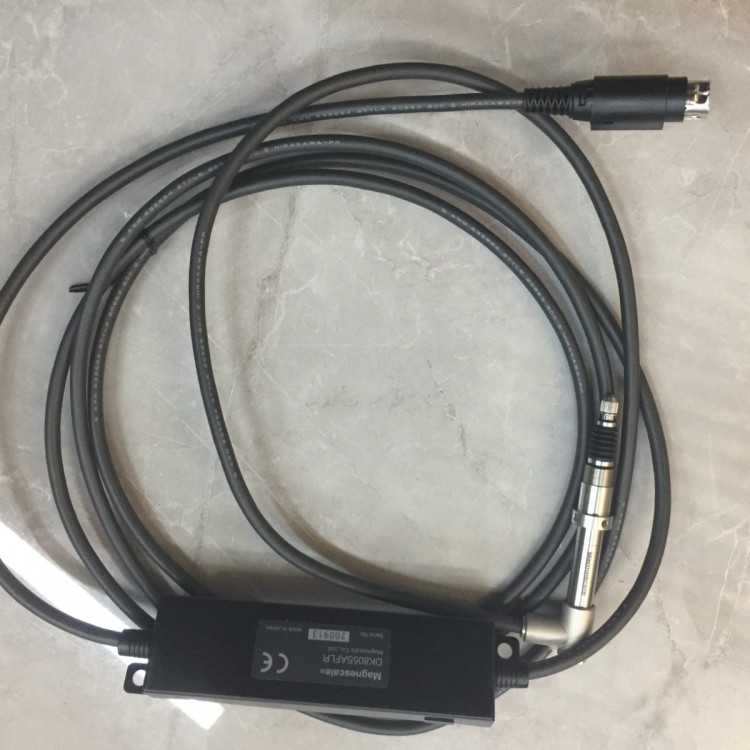

Japan Magnescale Displacement Sensor DK812SAVR5
Measurement Range: 5mm, 12mm, 30mm
Resolution: 0.1µm, 0.5µm
Accuracy: 1µm p-p to 1.7µm p-p (varies by model)
Response Speed: 80m/min at 0.1µm resolution, 250m/min at 0.5µm resolution
Bearings Structure: High durability ball spline bearings used, enhancing sliding performance
Slide Count: Over 320 million or more (testing continues as of January 2021)
Protection Class: Supports IP67 (when in straight type/90-degree type and with气管 installed)
Built-in origin
Output Signal: A/B phase (pulsed), home position (differential line driver signal with output voltage difference)
Available with flanges for secure fixation.
| Main Specifications | ||||
|---|---|---|---|---|
※1 Excludes the inner box and connector parts ※2 Right-angled and connects φ4mm pipe ※3 Excludes cable parts and insert boxes Changes to the recorded content will be made without prior notice. | ||||
| Model | High-resolution model | Universal Resolution Type | ||
| DK812SAR DK812SALR DK812SAFR DK812SAFLR DK812SAVR | DK812SBR DK812SBLR DK812SBFR DK812SBFLR DK812SBVR | DK812SAR5 DK812SALR5 DK812SAFR5 DK812SAFLR5 DK812SAVR5 | DK812SBR5 DK812SBLR5 DK812SBFR5 DK812SBFLR5 DK812SBVR5 | |
| Measurement Range | 12mm | |||
| Resolution | 0.1µm | 0.5µm | ||
| Accuracy (at 20℃) | 1µm p-p | 1.5µm p-p | ||
| Measuring Force (at 20℃) | Up: 0.4 ±0.3 N, 0.6 ±0.5 N (Pneumatic Extrusion Type) Horizontal: 0.5 ± 0.3 N 0.7 ± 0.5 N (Pneumatic Extrusion Type) Downward: 0.6 ± 0.3 N 0.8 ± 0.5 N (Pneumatic Extrusion Type) Pressure: 0.055 MPa | |||
| Large response speed | 80m/min | 42m/min | 250m/min | 100m/min |
| Origin Position | Spindle movement of 1mm ±0.5mm | |||
| Origin Response Speed | With the same response speed as mentioned above | |||
| Output | A/B/Origin Differential Line Driver Signal (Compliant with EIA-422) | |||
| Spindle Drive Method | Spring Compression (DK812SAR/SAFR/SBR/SBFR/SAR5/SAFR5/SBR5/SBFR5) Pneumatic Extrusion (DK812SAVR/SBVR/SAVR5/SBVR5) Spring Compression/Vacuum Suction (DK812SALR/SAFLR/SBLR/SBFLR/SALR5/SAFLR5/SAFLR5/SBLR5/SBFLR5) | |||
| Protection Level ※1 | Linear: IP67; Right-angle: IP64 (IP67 ※2) | |||
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |||
| Impact-resistant | 1000m/s2 (11ms) | |||
| Operating Temperature Range | 0 to +50℃ (No condensation) | |||
| Storage Temperature Range | -20 ~ +60℃ (90%RH or less) | |||
| Power Voltage | DC 5V ±5% | |||
| Power Consumption | 1W | |||
| Quality ※3 | Approximately 30g | |||
| Output Cable Length | 2.5m | |||
| Sensor Head | Super-hard alloy ball with M2.5 installation screw | Steel rod ball surface, installed with M2.5 screws | ||

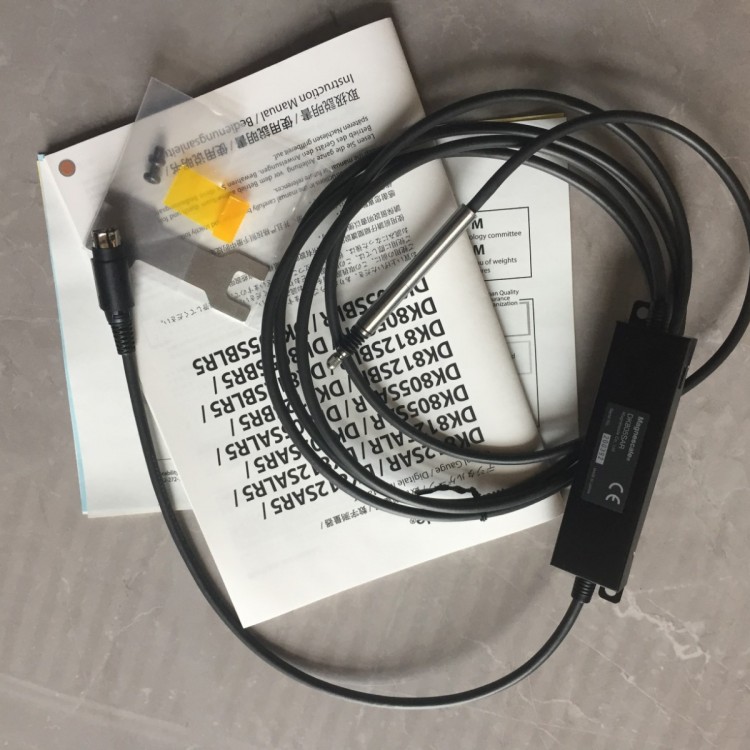

| Accessories | User Manual, + 2 PM4×5 Screws, Set Screw, Wrench, Spring Washer 1 each installation pin (only for DK8**S*F**), 1 each hose elbow (only for DK8**S*L**), 1 each wrench | |||
