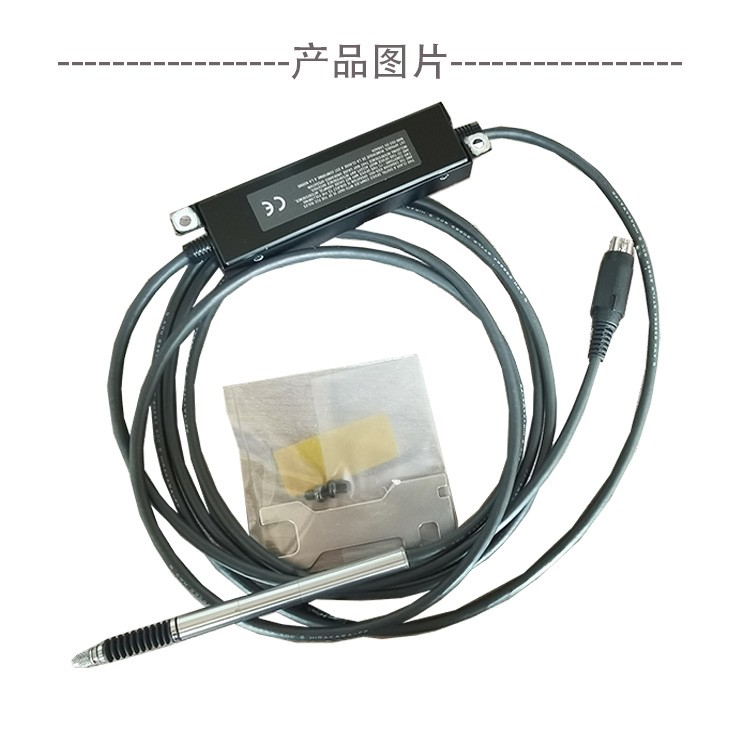

Japan Magnescale Probe Sensor DK805SBR5
Measurement Range: 5mm, 12mm, 30mm
Resolution: 0.1 µm, 0.5 µm
Accuracy: 1µm p-p to 1.7µm p-p (varies by model)
Response Speed: 80m/min at a resolution of 0.1µm, 250m/min at a resolution of 0.5µm
Bearing Structure: Utilizes high durability ball spline bearings, enhancing sliding performance
Slide次数: 320 million or more (testing continues as of January 2021)
Protection Rating: Supports IP67 (straight or right-angled with气管 installed)
Built-in Origin
Output Signal: A/B phase (pulsed), origin (differential line driver signal with output voltage)
We also offer flanged types that can be securely fastened.
| Main Specifications | ||
|---|---|---|
※1 The items marked with () are type B ※2 Excludes the internal box and connector parts ※3 Right-angled and φ4mm tube used ※4 Excludes cable parts and insert boxes ※5 The shapes and sizes of certain parts differ from the previous DK800 series models. Changes to the recorded content will not be announced separately. | ||
| Model | High-resolution model | Universal Resolution Type |
| DK805SAR，DK805SALR，DK805SAFR，DK805SAFLR DK805SBR，DK805SBLR，DK805SBFR，DK805SBFLR | DK805SAR5，DK805SALR5，DK805SAFR5，DK805SAFLR5 DK805SBR5，DK805SBLR5，DK805SBFR5，DK805SBFLR5 | |
| Measurement Range | 5mm | |
| Resolution | 0.1µm | 0.5µm |
| Accuracy (at 20℃) | 1µm p-p | 1.5µm p-p |
| Measurement Force (at 20℃) | Up: 0.35 ± 0.25 N | |
| Horizontal: 0.40 ± 0.25 N | ||
| Downward: 0.45 ± 0.25 N | ||
| Operating Temperature Range | 0 to +50℃ (No condensation) | |
| Storage temperature range | -20 to +60℃ (90%RH or less) | |
| Response Speed ※1 | 80m/min (42m/min) | 250m/min (100m/min) |
| Spindle Drive Method | Spring Compression (All Models) Air-driven via vacuum suction (DK805S*LR*) | |
| Origin Response Speed | With the same response speed | |
| Origin Point | Spindle movement of 1mm ±0.5mm | |
| Protection Level ※2 | Linear: IP67; Right-angled: IP64 (IP67 x 3) | |
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |
| Impact-resistant | 1000m/s2 (11ms) | |
| Power Voltage | DC 5V ±5% | |
| Power Consumption | 1W | |
| Output | A/B/Origin Differential Line Driver Signal (EIA-422 compliant) | |
| Quality: ※4 | Approximately 30g | |
| Measurement Head | Spherical super-hard alloy balls, M2.5 installation screws | Steel ball surface, screw installation M2.5 |
| Output Cable Length | 2.5m | |

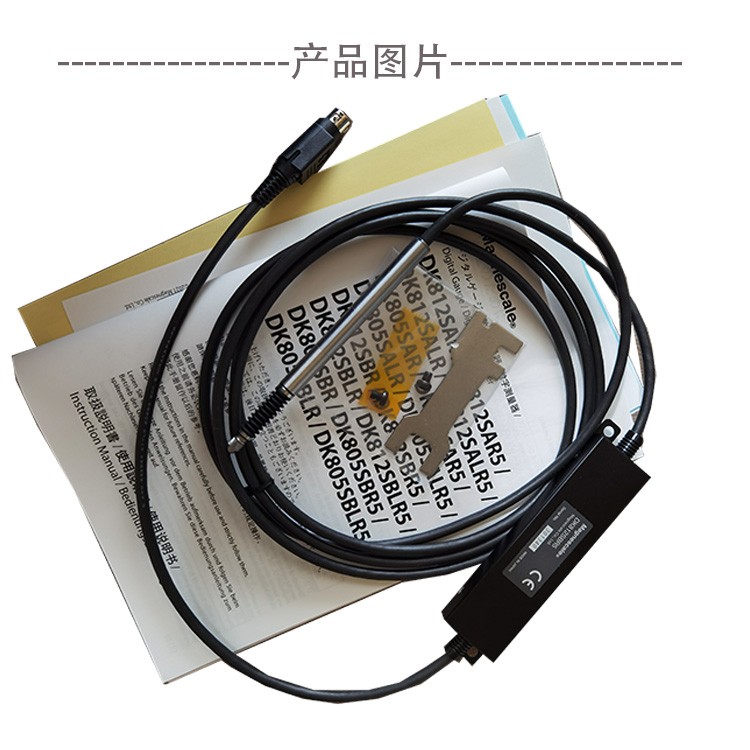

| Accessories | 1 instruction manual, +2 PM4×5 screws, set screw, wrench, spring washer 1 each installation pin (only for DK8**S*F**), 1 soft tube elbow (only for DK8**S*L**), 1 wrench | |
