Mitutoyo Satio High Precision Digital Micrometer 293-140-30

Mitutoyo High-Precision Digital Micrometer 293-140-30

Achieved rapid measurement with the micrometer screw advancing by 2.0mm per revolution of the differential sleeve. Increased thread pitch through high-precision thread processing and evaluation techniques with a spacing of 2.0mm.

● Hold with one hand to calculate the measurement time for continuously measuring 6 segments of workpieces starting from a small diameter. Compared to traditional micrometers, the positioning and measurement times can be reduced by approximately 76%* and 58%* respectively. *Survey of sampling operations.

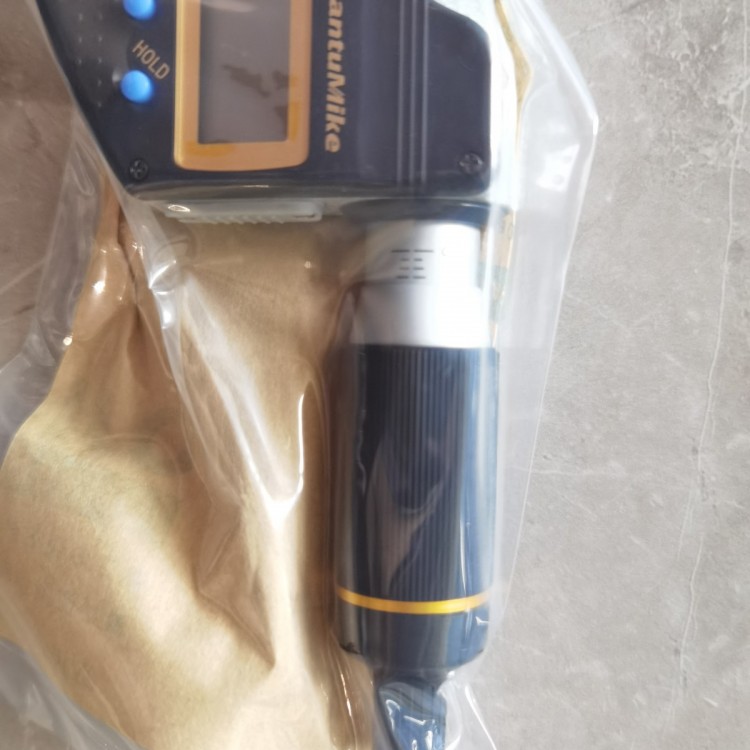

● Equipped with a ratchet sleeve device, even those not accustomed to single-handed measurements can achieve a reliable measurement without fluctuations. Both the differential sleeve and the speed control mechanism are operable with a ratchet, enabling stable measurement through the micromotion along the axis of the micrometer screw. Pressure status can also be confirmed audibly, and the ratchet of the speed control mechanism facilitates quick feed of the micrometer screw.

■ Features

Origin Setting:

(ABS Measurement System)

Press the ORIGIN button, at the current micrometer screw position

Reset ABS origin. Settings vary according to dimensions.

Origin Value.

Set to Zero

(INC Incremental Measurement System)

Briefly press the ZERO/ABS button, on the current micrometer screw

Location setting displays as zero point, switch to incremental measurement

Quantity Mode (INC), press and hold button to reset to ABS measurement

Pattern

Data Hold: Press the Hold button to freeze the current value on the display.

A feature for poor visibility conditions.

Before recording the readings, the instrument must be removed from the workpiece.

The measurement at the time of descaling is very useful.

Feature Lock: This feature allows the locking of the origin (origin setup) function

With Zero Point (Zeroing) function, to prevent these points from being accidentally

Reset.

Automatic Power Supply

Open/Close

If not used for about 20 minutes, the LCD screen will turn off automatically.

The reading on the display will disappear, but the origin is saved.

Rotary micrometer screw, adjusting the reading on the LCD display

Reappearing.

Data Output*: Micrometers with this feature have an output port.

Used for transferring measurement data to statistical process control

(SPC) System.

*  Applicable only to MDE-MX model.

Error Alert: If there is an overflow on the LCD screen or calculation

Error, error message appears on the LCD display.

Measurement function has stopped. This will prevent the instrument from providing incorrect readings.

Misread count. When the battery voltage falls below a certain level, measurement

Battery voltage low alert prior to normal operation.

The signaler will appear to remind users to replace the battery.
