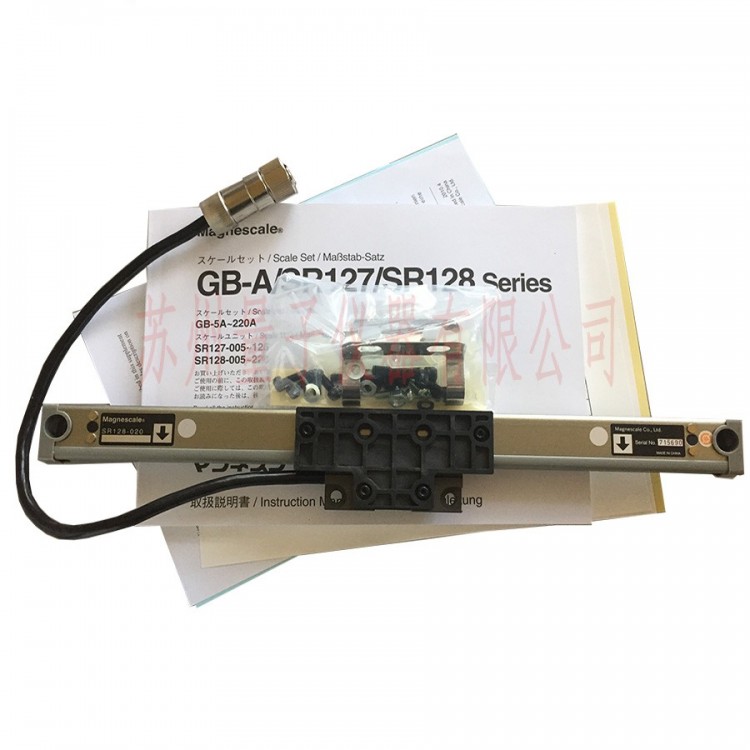

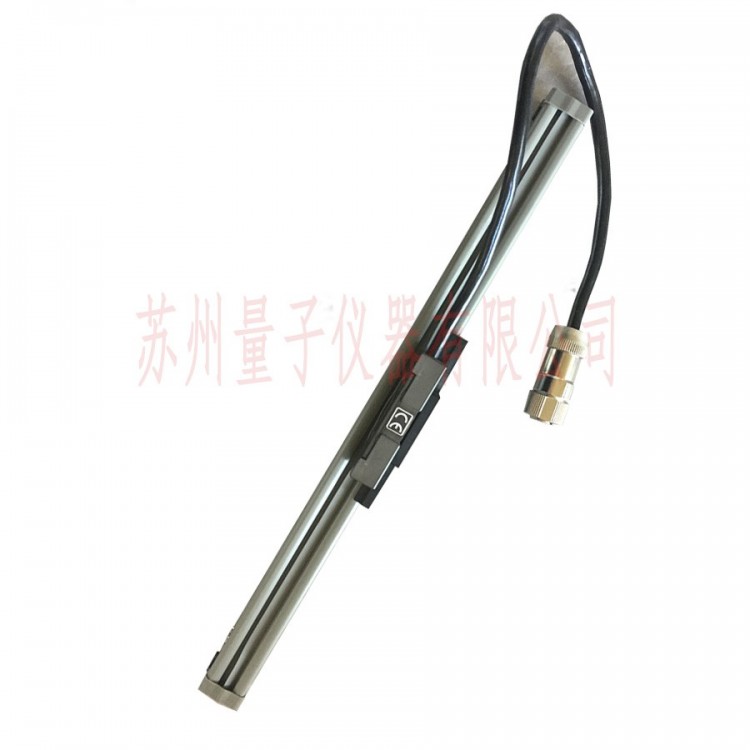

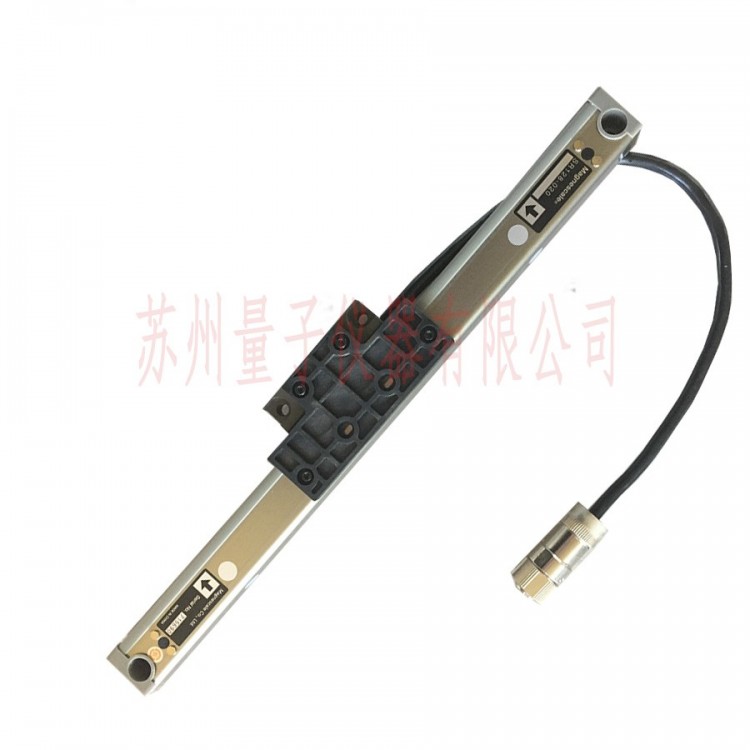

Japanese Magnescale Magnetic Scale SR128-020

Japan Magnescale Magnetic Scale SR128-020

Product Introduction

Magnescale Scale Encoder SR128 | Scale Encoder

Magnetic Tape SR128 Series: Designed for use in chip-processing machinery or any application requiring positioning. Resistant to oil, vibration, contamination, and wear; features a simple structure with a long service life and the same thermal expansion coefficient as metal; GB Series Magnescale (magnescale) with a compact design, cross-sectional dimensions of 25x21mm.

Product quality:

Oil-resistant, dust-resistant, vibration-resistant, and adaptable to various environments.
2. Compact and clever design, saving installation space.
3. Magnetic, built-in origin.
4. Suitable for use on milling machines, grinding machines, and other general machine tools.

5. Simple structure, long service life, and the same thermal expansion coefficient as metal.

Linear Ruler
Lengths available: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050, 1250, 1400, 1600, 1850, 2050, 2200mm
Length: +104mm (Length below 200mm)
Length +120mm (over 200mm)
Maximum Length: Length + 14mm (Length below 200mm, 7mm on each side)
Length +30mm (up to 250mm, 15mm on each side)
Linear Scale Accuracy (20℃): ±5μm (SR128 series)
Key Points:
1. Compact and lightweight
2. Easy installation
3. Temperature expansion coefficient is the same as mechanical
4. Height Position
5. Oil and dirt resistant

Product Specifications:

Product Model:
