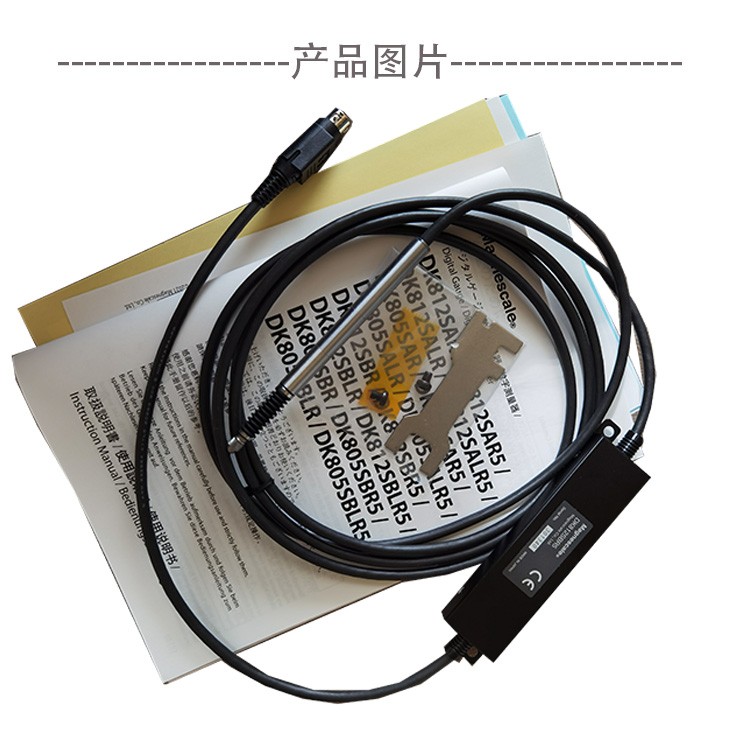

Japanese Magnescale Dial Gauge Sensor DK805SBR
Measurement Range: 5mm, 12mm, 30mm
Resolution: 0.1µm, 0.5µm
Accuracy: 1µm p-p to 1.7µm p-p (varies by model)
Response Speed: 80m/min at 0.1µm resolution, 250m/min at 0.5µm resolution
Bearings Structure: High durability ball spline bearings used, enhancing sliding performance
Slide Count: Over 320 million, or more (testing continues as of January 2021)
Protection Class: Supports IP67 (when in straight or right-angled type and with气管 installed)
Built-in origin
Output Signal: A/B phase (pulsed), home position (differential line driver signal with output voltage difference)
Available with flanges for secure fixation.
| Main Specifications | ||
|---|---|---|
※1 The marked items in parentheses are Type B ※2 Excludes the internal box and connector parts ※3 Right-angled and φ4mm tube used ※4 Excludes cable components and insertion boxes ※5 The shapes and sizes of certain parts differ from the previous DK800 series models. Changes to the recorded content will not be announced separately. | ||
| Model | High-resolution model | Universal Resolution Type |
| DK805SAR，DK805SALR，DK805SAFR，DK805SAFLR DK805SBR，DK805SBLR，DK805SBFR，DK805SBFLR | DK805SAR5，DK805SALR5，DK805SAFR5，DK805SAFLR5 DK805SBR5，DK805SBLR5，DK805SBFR5，DK805SBFLR5 | |
| Measurement Range | 5mm | |
| Resolution | 0.1µm | 0.5µm |
| Accuracy (at 20℃) | 1µm p-p | 1.5µm p-p |
| Measurement Force (at 20℃) | Up: 0.35 ± 0.25 N | |
| Horizontal: 0.40 ± 0.25 N | ||
| Downward: 0.45 ± 0.25 N | ||
| Operating Temperature Range | 0 ~ +50℃ (No condensation) | |
| Storage Temperature Range | -20 ~ +60℃ (90%RH max) | |
| Responsive Speed ※1 | 80m/min (42m/min) | 250m/min (100m/min) |
| Spindle Drive Method | Spring Compression (All Models) Air-driven through vacuum suction (DK805S*LR*) | |
| Origin Response Speed | With the same response speed as mentioned above | |
| Origin Point | Spindle movement of 1mm ±0.5mm | |
| Ingress Protection Rating ※2 | Linear: IP67; Right-angle: IP64 (IP67 x 3) | |
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |
| Impact-resistant | 1000m/s2 (11ms) | |
| Power Voltage | DC 5V ±5% | |
| Power Consumption | 1W | |
| Output | A/B/Origin Differential Line Driver Signal (Compliant with EIA-422) | |
| Quality ※4 | Approximately 30g | |
| Sensor Head | Spherical super-hard alloy balls, installation screws are M2.5 | Steel rod ball surface, installation screw M2.5 |
| Output Cable Length | 2.5m | |
| Accessories | 1 user manual, +2 PM4×5 screws, set screw, wrench, wave washer 1 x installation pin (only for DK8**S*F**), 1 x hose elbow (only for DK8**S*L**), 1 x wrench | |
