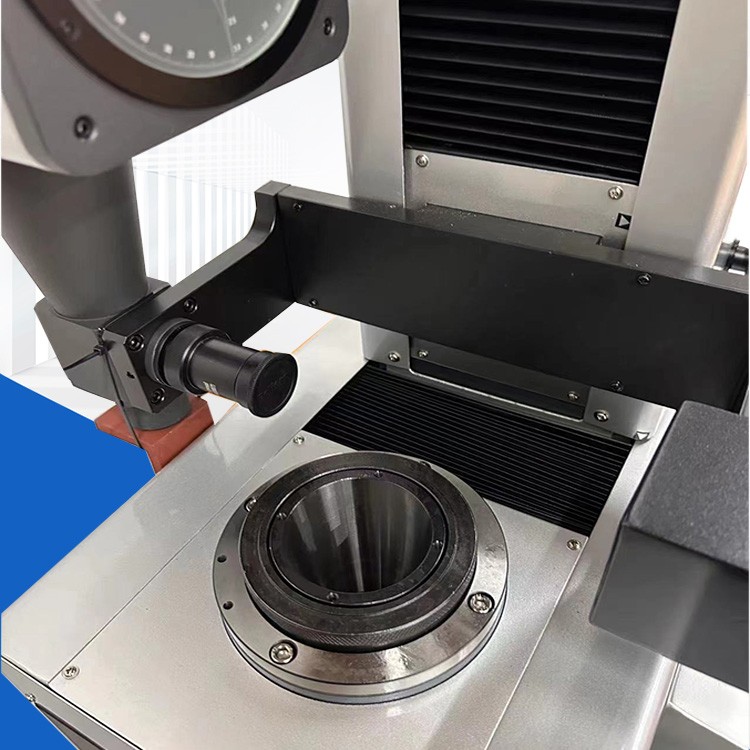

Rational Wanhowa Projected Knife Presetter DTP-A1540
Usage:
This instrument is an integrated tool pre-alignment detector that combines optical, mechanical, electrical, and video technologies. It is primarily used for measuring the coordinate positions of cutting edges on boring and milling tools used in CNC machine tools, machining centers, and flexible manufacturing units. It also checks the tip angle, fillet, and edge condition of the tools.
Technical specifications parameters:
Conical shank number | Standard Configuration: BT50; BT40 (optional), BT30 (optional) |
Measurement Range | Diameter (X-axis): Φ300mm; Height (Z-axis): 30~400mm |
Digital Display Resolution | X-axis: 0.0005mm |
Axis Z: 0.0005 mm | |
| Main shaft collet standard taper | 7:24 |
Indication Error | X Axis: ±IT5/3 (R150: ±6μm) |
Z axis: ±IT5/2 (H400: ±13μm) | |
| Power Supply | AC 100-220V 50/60Hz |
Lighting System | Reflective Light 24V/20W Transmittance light LED brightness is adjustable. |
Instrument dimensions (L×W×H) | 780×530×950(mm) |
Instrument Weight | Approximately 90 kg |
