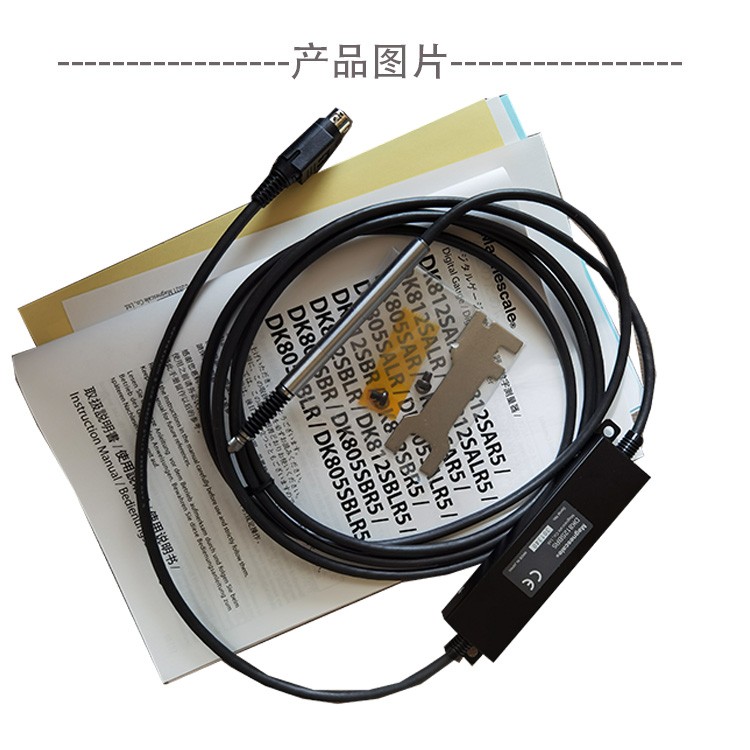

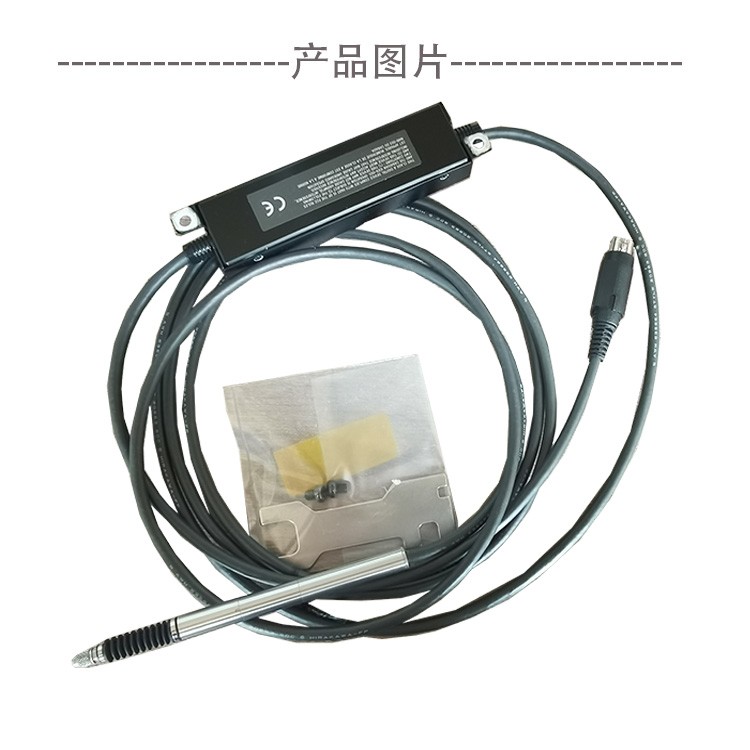

Japan Magnescale Probe Sensor DK805SAFR
Measurement Range: 5mm, 12mm, 30mm
Resolution: 0.1µm, 0.5µm
Accuracy: 1µm p-p to 1.7µm p-p (varies by model)
Response Speed: 80m/min at 0.1µm resolution, 250m/min at 0.5µm resolution
Bearings Structure: Utilizes high durability ball spline bearings, enhancing sliding performance
Slide Count: Over 320 million, or more (testing continues as of January 2021)
Protection Level: Supports IP67 (linear/90-degree type when气管 is installed)
Built-in origin
Output Signal: A/B phase (pulsed), home position (differential line driver signal with output voltage)
Available with flanges for secure attachment.
| Main Specifications | ||
|---|---|---|
※1 The marked () is Type B ※2 Does not include the inner box and connector parts ※3 Right-angled and φ4mm tube used ※4 Excludes cable parts and internal sockets ※5 The shapes and dimensions of certain parts differ from the previous DK800 series models. Changes to the content will be made without prior notice. | ||
| Model | High-resolution model | Universal Resolution Type |
| DK805SAR，DK805SALR，DK805SAFR，DK805SAFLR DK805SBR，DK805SBLR，DK805SBFR，DK805SBFLR | DK805SAR5，DK805SALR5，DK805SAFR5，DK805SAFLR5 DK805SBR5，DK805SBLR5，DK805SBFR5，DK805SBFLR5 | |
| Measurement Range | 5mm | |
| Resolution | 0.1µm | 0.5µm |
| Accuracy (at 20℃) | 1µm p-p | 1.5µm p-p |
| Measurement Force (at 20℃) | Up: 0.35 ± 0.25 N | |
| Horizontal: 0.40 ± 0.25 N | ||
| Down: 0.45 ± 0.25 N | ||
| Operating Temperature Range | 0 ~ +50℃ (No condensation allowed) | |
| Storage Temperature Range | -20 ~ +60℃ (90%RH max.) | |
| Response Speed ※1 | 80m/min (42m/min) | 250m/min (100m/min) |
| Spindle Drive Method | Spring Compression (All Models) Air-driven through vacuum suction (DK805S*LR*) | |
| Origin Response Speed | With the same response speed as mentioned above | |
| Origin Point | Spindle movement of ±0.5mm within 1mm | |
| Protection Level ※2 | Linear: IP67; Right-angle: IP64 (IP67 x 3) | |
| Vibration-resistant | 100m/s2 (20 ～ 2,000 Hz) | |
| Impact-resistant | 1000m/s2 (11ms) | |
| Power Voltage | DC 5V ±5% | |
| Power Consumption | 1W | |
| Output | A/B/Origin Differential Line Driver Signal (Compliant with EIA-422) | |
| Quality ※4 | Approximately 30g | |
| Sensor Head | Super-hard alloy ball surface, installed with M2.5 screws | Steel rod ball surface, installed with M2.5 screws |
| Output Cable Length | 2.5m | |
| Accessories | 1 user manual, + 2 PM4x5 screws, set screw, wrench, spring washer 1 each installation pin (only for DK8**S*F**), 1 soft tube elbow (only for DK8**S*L**), 1 wrench | |
