Japan Magnescale Magnetic Scale SR128-105

Japanese Magnescale Magnetic Scale SR128-105

Product Introduction

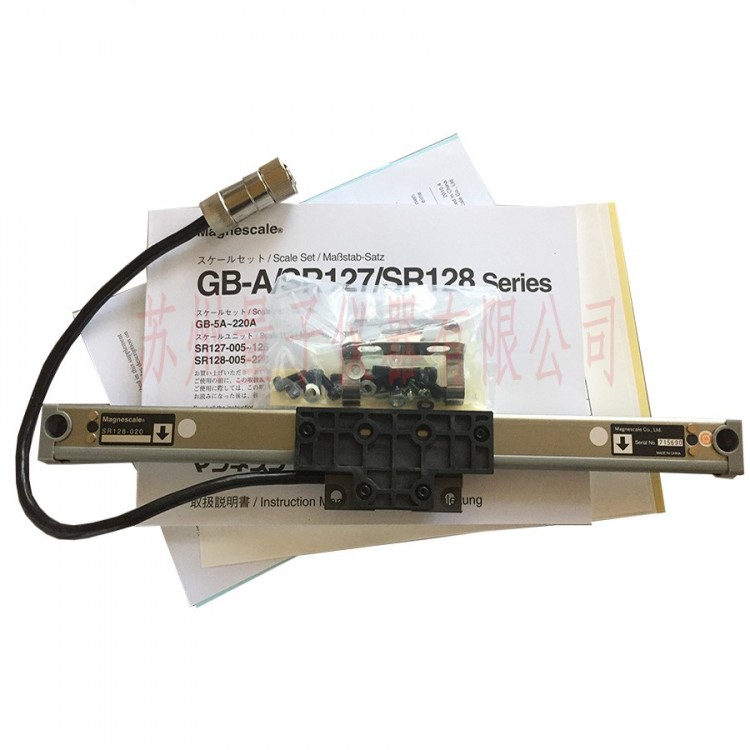

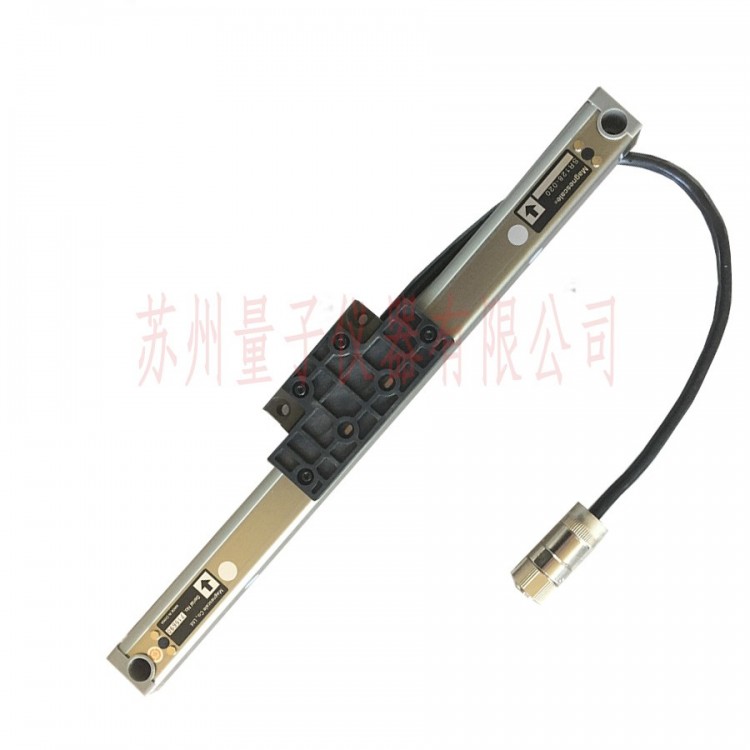

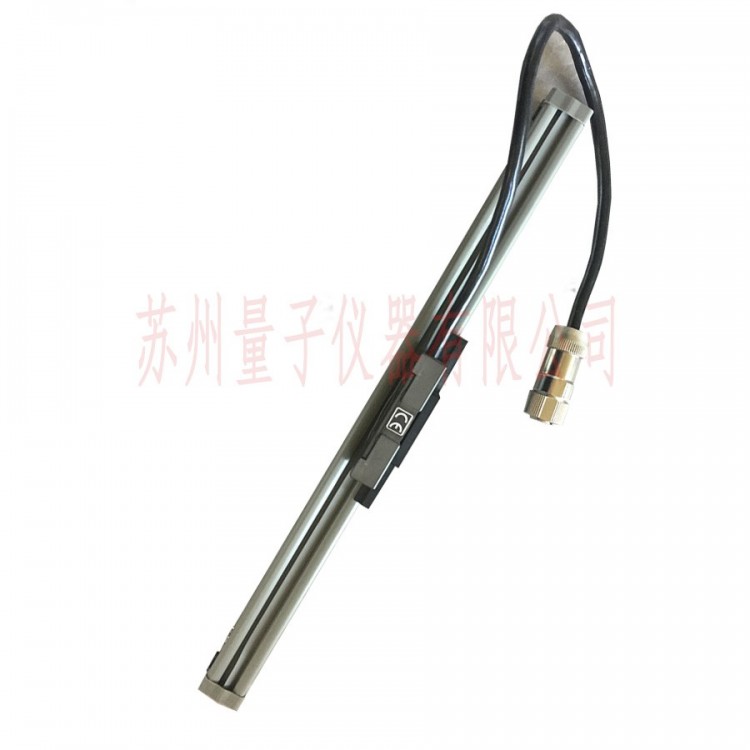

Magnescale Scale Reader SR128 | Scale Reader

Magnetic Scale SR128 Series: Designed for use in chip-forming machinery or applications requiring positioning. Features include oil resistance, vibration resistance, pollution resistance, and durability; simple structure, long service life, and the same thermal expansion coefficient as metal; GB series magnescale (magnetscale), compact in design, cross-sectional dimensions of 25x21mm.

Product Quality:

Oil and dust resistance, vibration resistance, and environmental adaptability.
2. Compact and clever design, saving installation space.
3. Magnetic, built-in origin.
4. Suitable for use on milling machines, grinding machines, and other general machine tools.

5. Simple structure, long-lasting usage, and the same coefficient of thermal expansion as metal.

Linear Ruler
Lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050, 1250, 1400, 1600, 1850, 2050, 2200mm
Length: +104mm (length 200mm or less)
Length +120mm (over 200mm)
Max Length Allowable: With Length + 14mm (With Length below 200mm, each side 7mm)
Length +30mm (Length under 250mm, 15mm on each side)
Linearity Scale (20℃): ±5μm (SR128 series)
Key Points:
1. Compact and lightweight
2. Easy installation
3. Temperature expansion coefficient is the same as mechanical
4. Height Position
Oil and dirt resistant

Product Specifications:

Product Model:
