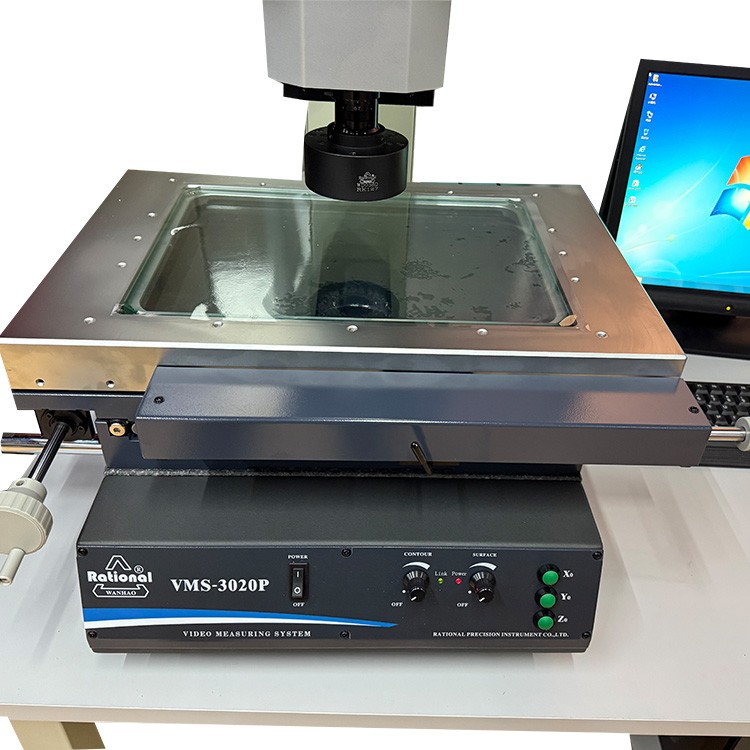

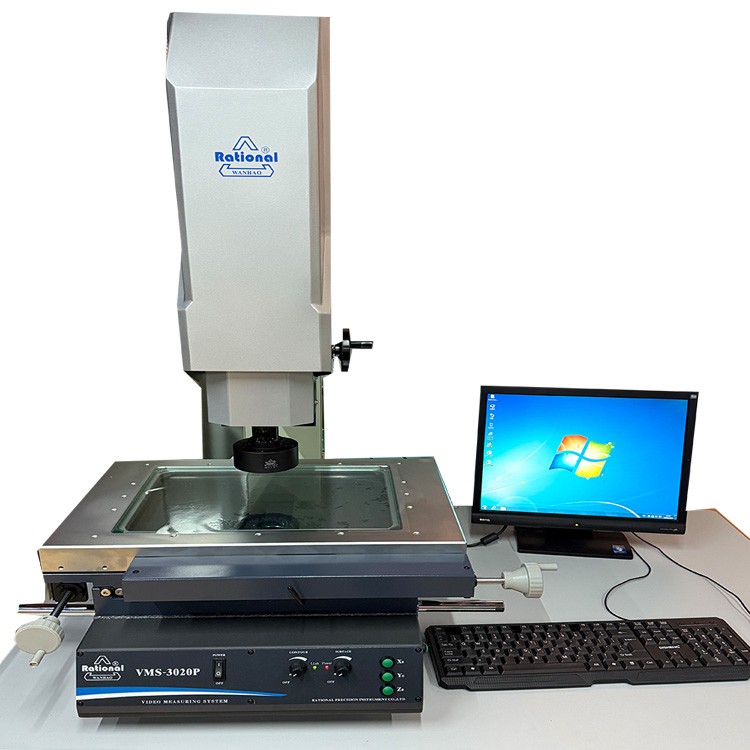

Rational Wanhao Image仪 VMS-2010P CNC 2.5D
Product Application
The instrument is suitable for applications requiring two-dimensional coordinate measurement and is widely used in industries such as machinery, electronics, instruments, and plastics.
Product Features
Self-developed QMS3D-M software, compatible with new Windows systems, easy to operate with extensive features, comes with high-definition industrial analog cameras offering superior color fidelity.

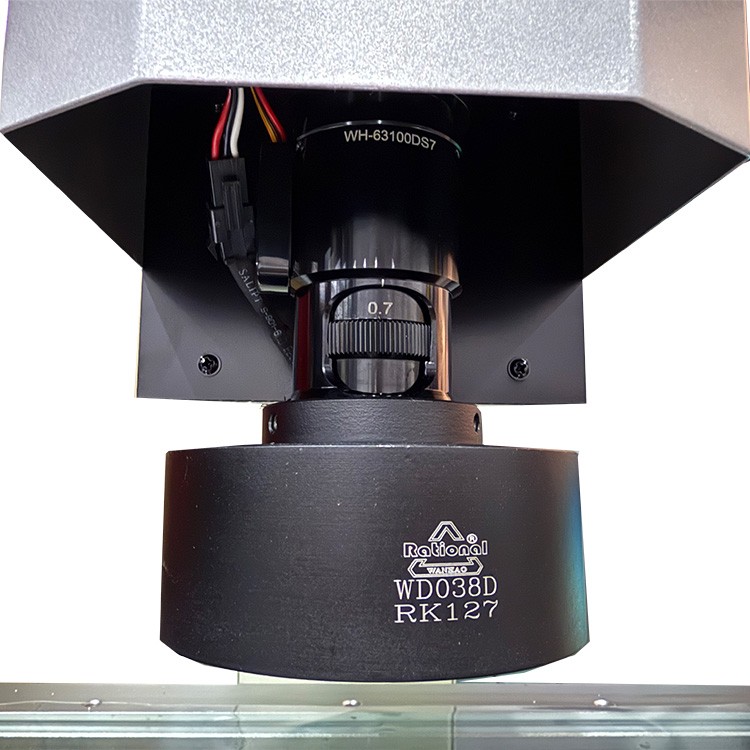

Electronic feedback lenses ensure more precise optical magnification, featuring programmable dimming and rotary dimming functions. Software-assisted dimming allows for more accurate brightness control, making it easier for users to determine if the light is overly saturated. Dual laser indicators for part location and measurement provide increased accuracy, effectively enhancing measurement efficiency; they are also suitable for high-complexity and challenging measurements.
Achieves highly assisted measurement
Pre-alotted fixture holes for easy installation of various clamping fixtures;栅尺 resolution is 0.5um.
Both hardware and software come with a one-click reset function.
Connect to traditional foot switches, which not only assist in improving measurement efficiency but can also (customize software) achieve
Technical Specifications
Model | VMS-2010P | VMS-3020P | VMS-4030P | ||||
Workstation | Metal Table Dimensions (mm) | 404*228 | 500*330 | 606*466 | |||
Glass Table Size (mm) | 260*160 | 350*250 | 450*350 | ||||
Sporting travel (mm) | 200*100 | 300*200 | 400*300 | ||||
X/Y/Z Display Resolution | 0.5um 2.5+l/100 | ||||||
Indication Error | |||||||
Cross-sectional origin consistency error (μm) | E. ≤30 (Z-axis travel per 100mm) | ||||||
Dimensions (Length x Width x Height) mm | 540*560*850 | 760*600*900 | 970*670*940 | ||||
Instrument Weight (kg) | 110 | 140 | 240 | ||||
Z-axis stroke (mm) | 150 (orderable up to 300 for 2010P); 3020P/4030P orderable up to 400 (with coaxial light lock head, light gauge to break point is 70mm) | ||||||
Imaging System | Camera: Color 1/3" Camera, Electronic Feedback Zoom Lens, Magnification Ratio: 0.7X~4.5X, Total Video Magnification: 26.6X~171X (on a 21.5" monitor) | ||||||
Objective Field (diagonal): 8.1mm ~ 1.3mm Power Supply: AC 100V ~ 240V, 50/60Hz | |||||||
Instrument accessories | 1X Tube (Standard Equipment) | 0.5× Telescope Tube (Optional) | Working Distance * (mm) | ||||
Zoom lens | 0.7X~4.5X | 0.7X~4.5X | |||||
Additional Lens | Video Magnification Ratio | Object Field (mm) | Video Magnification Ratio | Object Field of View (mm) | |||
0.5X (optional) | 13.3X~85.5X | 16.2~2.6 | 6.65X~42.7X | 32.4~5.2 | 175 | ||
1x (Standard Configuration) | 26.6X~171X | 8.1~1.3 | 13.3X~85.5X | 16.2~2.6 | 92 | ||
2X (optional) | 53.2X~342X | 4~0.7 | 26.6X~171X | 8.1~1.3 | 36 | ||
Optional accessories: crosshair, DC3000 digital indicator, simple probe, coaxial lens, computer
