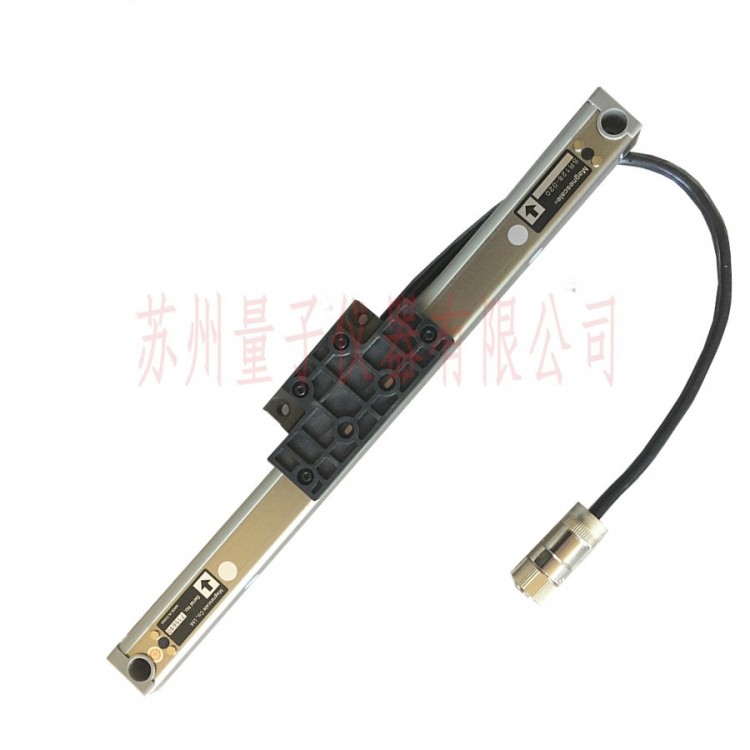

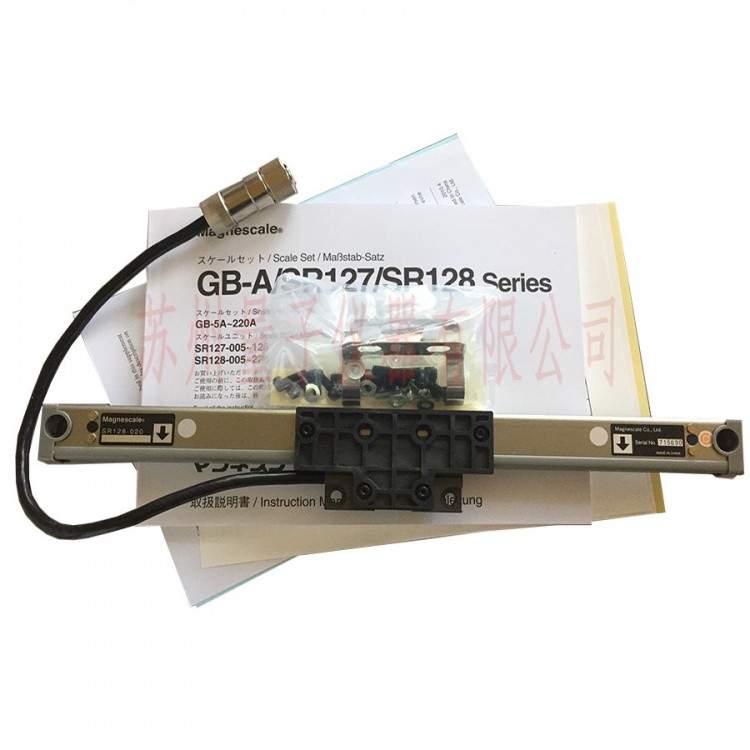

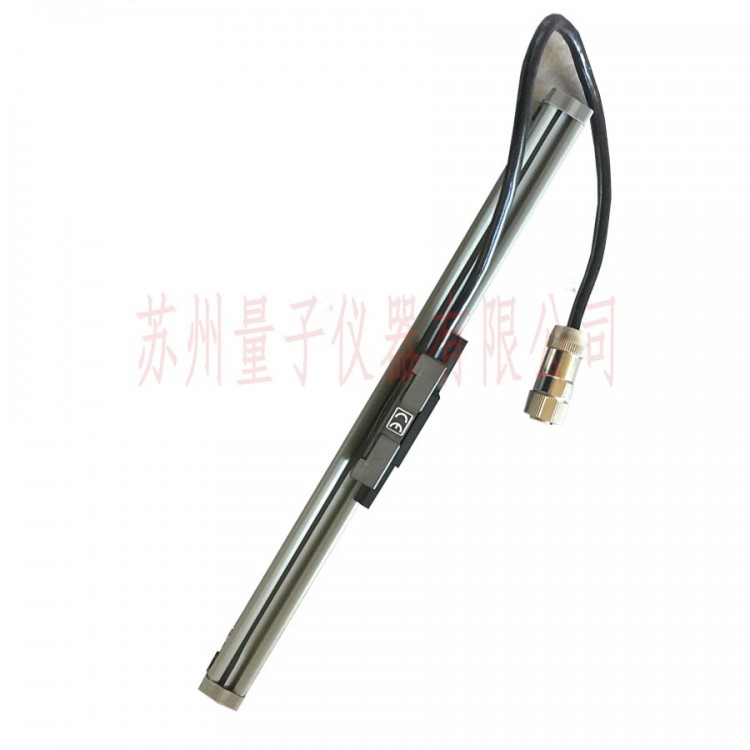

Japan Magnescale Magnetic Scale SR128-010

Japan Magnescale Magnetic Scale SR128-010

Product Description

Magnescale Scale Reader SR128 | Scale Reader

Magnetic Scale SR128 Series: Designed for use in chip-forming machinery or any application requiring positioning. Features include oil resistance, vibration resistance, pollution resistance, and durability; simple structure, long service life, and the same thermal expansion coefficient as metal; GB Series Magnescale, compact in design with cross-sectional dimensions of 25x21mm.

Product Quality:

Oil-resistant, dust-resistant, vibration-resistant, and adaptable to various environments.
2. Compact and clever design, saving installation space.
3. Magnetic, built-in origin.
4. Suitable for use on milling machines, grinding machines, and other general machine tools.

5. Simple structure, long service life, and the same thermal expansion coefficient as metal.

Linear Ruler
Available lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 750, 850, 950, 1050, 1250, 1400, 1600, 1850, 2050, 2200mm
Length: +104mm (Length up to 200mm)
With length +120mm (over 200mm)
Max. Length: +14mm (Length 200mm or less, +7mm on each side)
Length +30mm (Length under 250mm, 15mm on each side)
Linearity of the scale (20℃): ±5μm (SR128 series)
Key Points:
1. Compact and lightweight
2. Easy installation
3. Temperature expansion coefficient is the same as mechanical.
4. Height and Position
Oil and dirt-resistant

Product Specifications:

Product Model:
