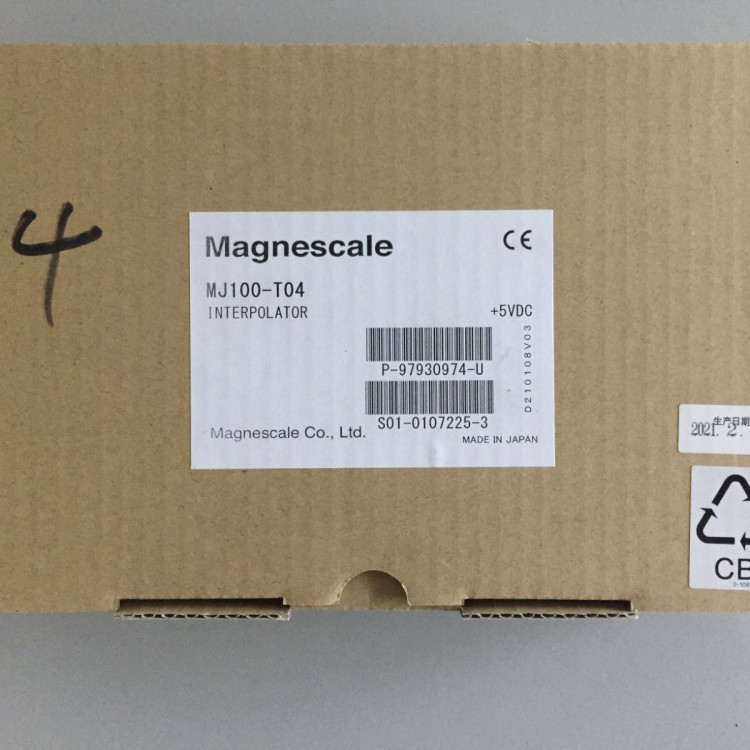

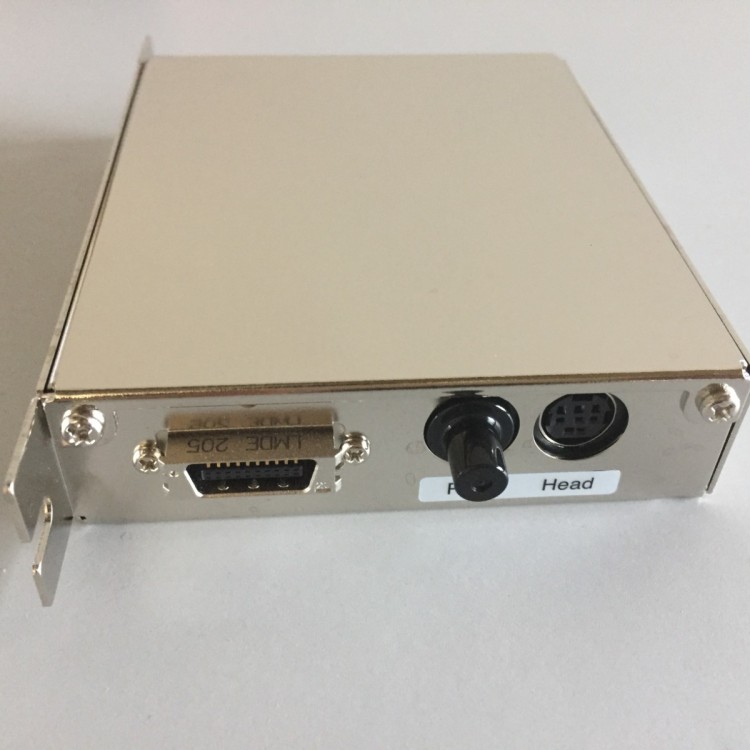

Japanese Magnescale Amplifier MJ110
Can be divided into 40 to 1,000 parts
With the installed magnetic scale encoder assembly PL25 and scale assembly SL110/130 (basic wavelength = 5mm),
Or when used in combination with PL60 and scale component SL331 (basic wavelength = 2mm), the output resolution is A/B phase (pulsed) signals ranging from 2 to 125µm.
Power Voltage MJ100: 5V (4.5-6V), MJ110: 12-30V (11-31V)
MJ100 outputs the regeneration wavelength of the mounted magnetic scale (PL25=5mm, PL60=2mm) as one cycle of UVW phase.
| Main Specifications | |||
|---|---|---|---|
*1 This value is the reference at a phase difference of 1μs. May not function due to the length of the output cable. Changes to the recorded content will not be notified separately. | |||
| Model | MJ100 | MJ110 | |
| Power Voltage | DC 5V (4.5 ～ 6V) | DC 12 ～ 30V (11 ～ 31V) | |
| Power Consumption | 4W | 3W | |
| Output Interface | Line Driver (EIA-422 Compliant) | Collector Open (IOL=50mA max.) | |
| Output | A/B phase (pulsed), Z phase, UVW phase, alarm | A/B phases (pulsed), Z phase, alarm | |
| Number of divisions | 1000・960・800・512・500・480・400・256・240・200・128・120・100・80・64・40 And 1/2 (However, does not meet the synchronous origin specification) | ||
| Response Frequency | 1000 cuts | 6kHz: 1800m/min when connected to PL25 Connect to PL60 at 720m/min | 600Hz: 180m/min when connected to PL25 Connect to PL60 at 72m/min*1 |
| 500 Split | 15kHz: 4500 m/min when connected with PL25 Connect PL60 at 1800 m/min. | 1.5kHz: 450m/min when connected to PL25 Connect to PL60 at 180m/min*1 | |
| 200 cuts | 42kHz: 12600 m/min when connected to PL25 When connected to PL60, it is 5000 m/min. | 4.2kHz: 1260m/min when connected to PL25 Connected to PL60 at 500m/min*1 | |
| 120 divided | 70kHz: 21,000m/min when connected with PL25 When connected to PL60, it operates at 8400 m/min. | 7.4kHz: 2220m/min when connected to PL25 Connect to PL60 at 888m/min*1 | |
| Small phase difference | 100ns | 1μs | |
| Alarm*2 | Speed Alert (small phase difference time or high response frequency), Level Alert (0.4Vp-p or lower), Short Alert Time, approximately 400ms | ||
| System Boot Time | Power on in 0.5 second or less | ||
| Connect Object Ruler | PL25 or PL60 | ||
| Operating Temperature Range | 0 ～ 45℃ | ||
| Storage temperature range | -20 ～ 60℃ | ||
| Dimensions | 138×93×26(mm) including projections | ||
| Quality | 350g | ||
| Accessories | User Manual, Output Connector, Connector Cap, Installation Screws, Ferrite Core | ||
| Additional Accessories | SET-P16-1 Scale Extension Cable (for External Origin), External Origin Extension Cable, with Cable Output Connector | ||
