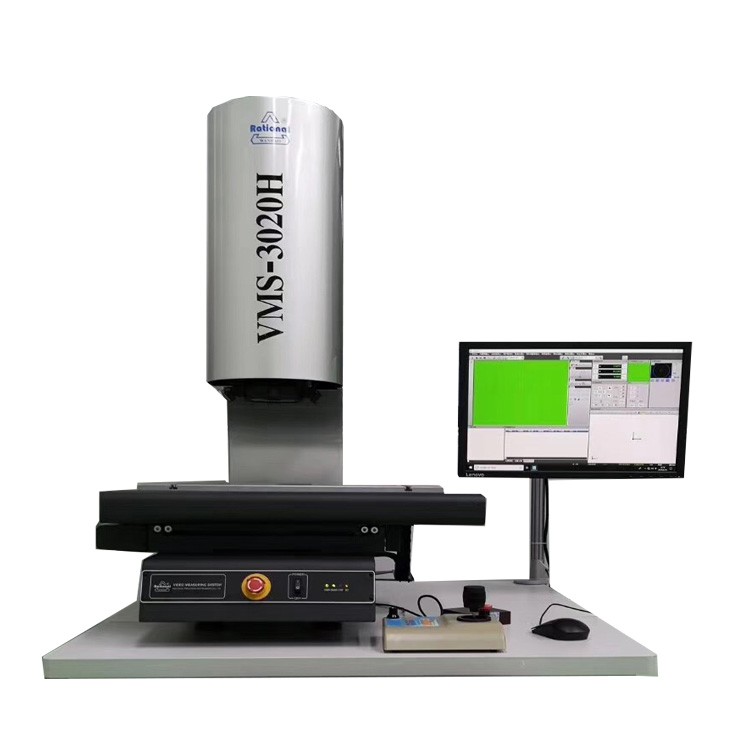

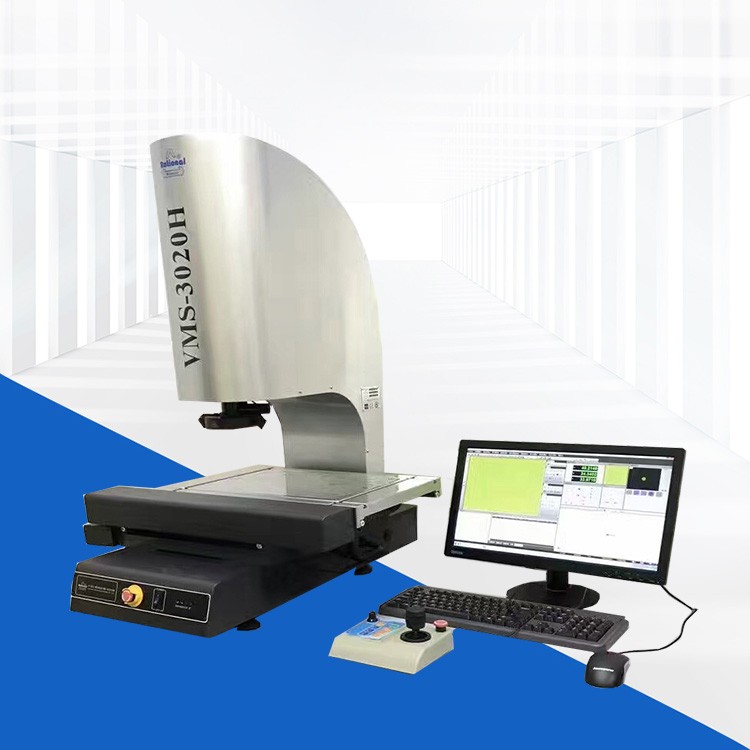

Wan Hao Automatic Image Measurement System VMS-3020H Visual Measurement Instrument
Features of the Automatic Image仪:
1. Self-developed QMS 3D software, catering to diverse measurement requirements of clients
2. Fast auto-focus, edge detection, robust programming, and automatic measurement capabilities
3. Utilize sub-pixel segmentation technology to enhance edge resolution capability
4. Configuration of control handle, also programmable via software
5. SPC Data Processing and Analysis, Large-scale Fixture Measurement
6. High positioning accuracy and speed with X, Y, Z-axis servo control, operation is stable
7. Utilizes self-developed embedded module control system, integrating complex control systems internally for enhanced stability.
8. Programmable constant current drive eight-zone surface cold light light source, adaptable to complex workpiece measurements
9. Locate the specific position of the measured workpiece with a laser pointer for quick and easy positioning.
Technical specifications:
Model | VMS-2515H | VMS-3020H | VMS-4030H | |||
Work Please provide the Chinese content you would like translated into American English. Tai | Metal Table Size (mm) | 450×280 | 500×330 | 606×466 | ||
| Glass Table Dimensions (mm) | 306×196 | 350×250 | 450×350 | |||
| Exercise travel (mm) | 220×120 | 270×170 | 370×270 | |||
| X, Y, Z Digital Display Resolution | 0.5μm | |||||
| Indicating Error | E1XY = (2.5 + L/100) μm (L is the measured length, unit: mm) | |||||
| Cross-sectional origin consistency error (μm) | E0 ≤ 20 (Z-axis stroke per 100mm) | |||||
| Dimensions (mm) | 760×600×900 | 760×600×900 | 970×670×940 | |||
| Instrument Weight (kg) | 146 | 168 | 266 | |||
| Z-axis lifting travel | 150 (orderable up to 300mm/400mm) (equipped with coaxial lens, surface to glass distance of 70mm) | |||||
| Instrument accessories | 1X Objective Tube (Standard Equipment) | 0.5X Objective Tube (Optional) | Working Distance (mm) | |||
| Zoom lens | 0.7-4.5X | 0.7-4.5X | ||||
| Additional Lens | Video Magnification Ratio | Object Field of View (mm) | Video Magnification Ratio | Objective Field (mm) | ||
| 0.5X (optional) | 10-64X | 22-3.4 | 5-32X | 44-6.8 | 175 | |
| 1X (Standard Configuration) | 20-128X | 11.1-1.7 | 10-64X | 22-3.4 | 92 | |
| 2X (optional) | 40-256X | 5.5-0.9 | 20-128X | 11.1-1.7 | 36 | |
| Brand computers (standard), Joystick (standard) | ||||||
Imaging System | Colorful Gigabit Network Camera, Video Magnification: 32X~207X (24-inch monitor) | |||||
| Zoom lens magnification: 0.7X~4.5X | ||||||
| Field of View: 11.1mm ~ 1.7m | ||||||
| Power: AC 220V 50/60Hz. Power Rating: 250W (does not include computer) | ||||||
