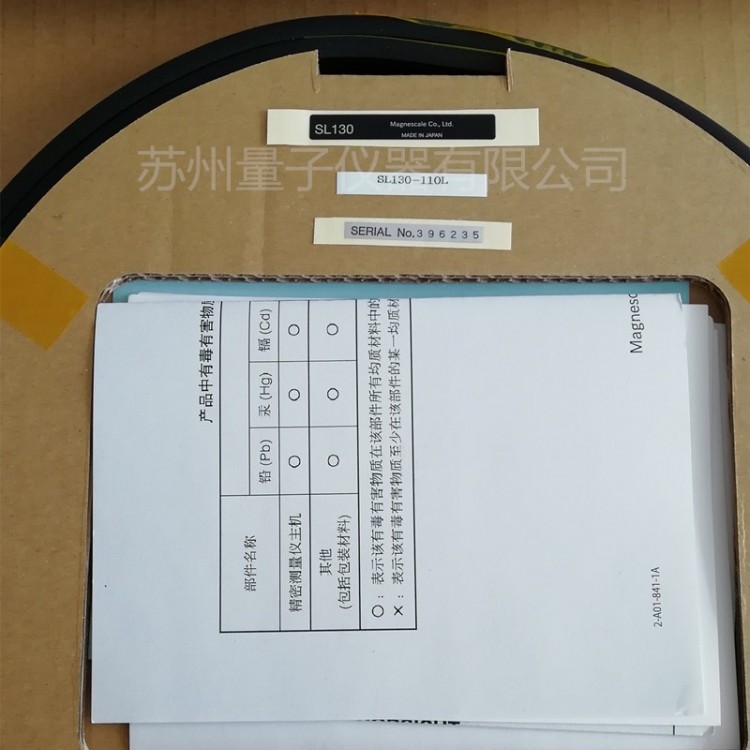

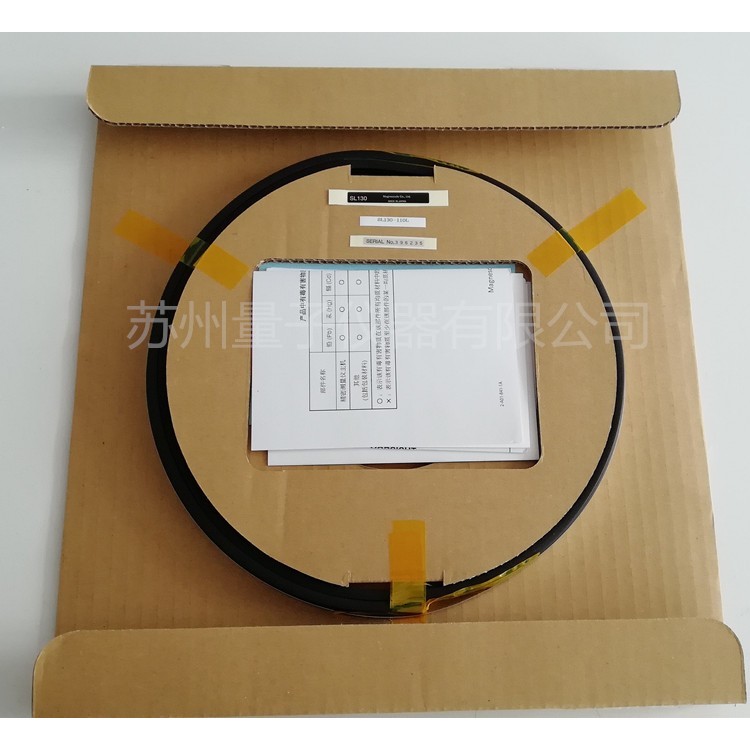

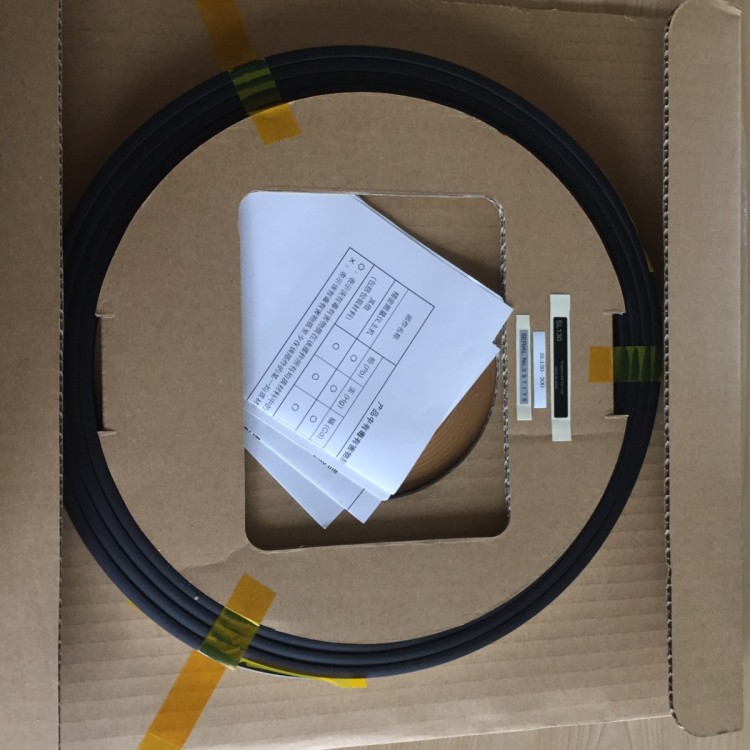

Japan Magnescale Magnetic Scale SL130-40
Magnetic detection method
Good environmental resistance, oil-resistant, dustproof, shock and vibration-resistant
Resolution: 10 µm
Up to 30 meters in length
The ruler has a small size and a simple structure, making it easy to install.
From wood and stone processing machines to metalworking machinery, large-scale machinery
Main Application: Wood and Stone Processing Machines
High-speed Response: 300m/min (when combined with PL20C)
| Main Specifications | |||
|---|---|---|---|
Accuracy value when combined with the PL20C/PL25 reading cable and the PL81/82 reading cable with an internal junction box Changes to the recorded content will not be notified separately. | |||
| Measuring Range (L) | 200，300，400，500，600，700，800，1000，1200，1500，1600，1700，1800，2000，2500，3000，4000，5000，6000，7000 mm | 8000，9000，10000，20000，30000 mm | |
| Full Length | Measurement Range: +103mm | ||
| Accuracy (*1 at 20℃) | (50+10L/1000)μm L: Measurement Range (mm) |
| |
| Permitted parallelism installation | Grating face direction | 0.8mm and under / full length | |
| Ruler side direction | 1.0mm and under / full length | ||
| Coefficient of Linear Expansion | (10.4±1)×10-6/℃ | ||
| Operating Temperature Range | -5 ～ +45℃ | ||
| Storage temperature range | -10 ～ +50℃ | ||
| Applicable sensor cable | PL20C / PL25 | ||
| Reader cable with applicable plug-in box (sold separately) | PL81 / PL82 / PL25 / PL20C (for connecting counters) | ||
