Rational Wanhao Image仪 VMS-4030P CNC 2.5D
Product Application
This instrument is suitable for applications requiring two-dimensional coordinate measurements and is widely used in industries such as machinery, electronics, instruments, and plastics.
Product Features
Self-developed QMS3D-M software, compatible with new Windows systems, easy to operate with extensive features; comes standard with high-definition industrial analog cameras, offering high color fidelity.

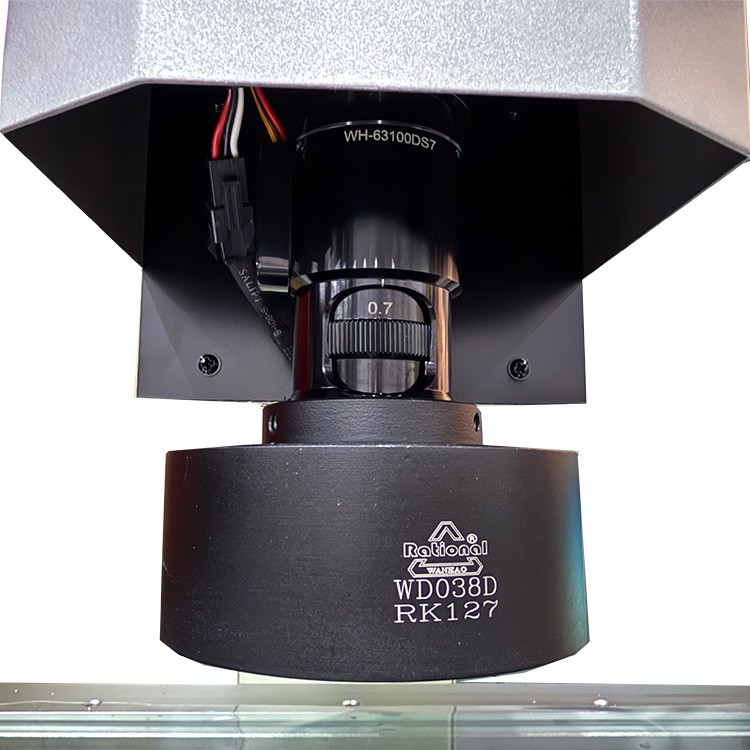

Electronic feedback lenses ensure more precise optical magnification, featuring programmable brightness adjustment and rotary control. The software enables auxiliary brightness adjustment, allowing for more accurate control of light intensity, making it easier for users to determine if the light is overly saturated. Dual laser indicators for part location and measurement provide enhanced accuracy, effectively improving measurement efficiency; they are also suitable for high-complexity and challenging measurements.
Achieve highly-assisted measurement
Reserved fixture hole positions for easy installation of various clamping fixtures;栅尺 resolution is 0.5 um.
Both hardware and software have a one-click reset function.
Connect to traditional foot switches, which assist in enhancing measurement efficiency while also allowing for (custom software) implementation.
Technical Specifications
Model | VMS-2010P | VMS-3020P | VMS-4030P | ||||
Workstation | Metal Table Dimensions (mm) | 404*228 | 500*330 | 606*466 | |||
Glass Table Dimensions (mm) | 260*160 | 350*250 | 450*350 | ||||
Sports travel (mm) | 200*100 | 300*200 | 400*300 | ||||
X/Y/Z Display Resolution | 0.5um 2.5+l/100 | ||||||
Indication Error | |||||||
Cross-section origin consistency error (μm) | E. ≤30 (Z-axis stroke every 100mm) | ||||||
Dimensions (Length x Width x Height) mm | 540*560*850 | 760*600*900 | 970*670*940 | ||||
Instrument Weight (kg) | 110 | 140 | 240 | ||||
Z-axis travel (mm) | 150 (orderable up to 300 for 2010P); 3020P/4030P orderable up to 400 (with coaxial optical lock head, distance from indicator to break point is 70mm) | ||||||
Imaging System | Camera: Color 1/3" Camera, Electronic Feedback Zoom Lens, Zoom Ratio: 0.7X~4.5X, Total Video Magnification: 26.6X~171X (on a 21.5" monitor) | ||||||
Objective Field (diagonal): 8.1mm ~ 1.3mm Power Supply: AC 100V ~ 240V, 50/60Hz | |||||||
Instrument accessories | 1x Tube (Standard Equipment) | 0.5-inch telescope tube (optional) | Working Distance * (mm) | ||||
Zoom lens | 0.7X~4.5X | 0.7X~4.5X | |||||
Additional Lenses | Video Magnification Ratio | Object Field of View (mm) | Video Magnification Ratio | Objective Field (mm) 注 | |||
0.5X (optional) | 13.3X~85.5X | 16.2~2.6 | 6.65X~42.7X | 32.4~5.2 | 175 | ||
1 x (Standard Configuration) | 26.6X~171X | 8.1~1.3 | 13.3X~85.5X | 16.2~2.6 | 92 | ||
2X (Optional) | 53.2X~342X | 4~0.7 | 26.6X~171X | 8.1~1.3 | 36 | ||
Optional accessories: crosshair, DC3000 digital indicator, simple probe, coaxial light lens, computer
