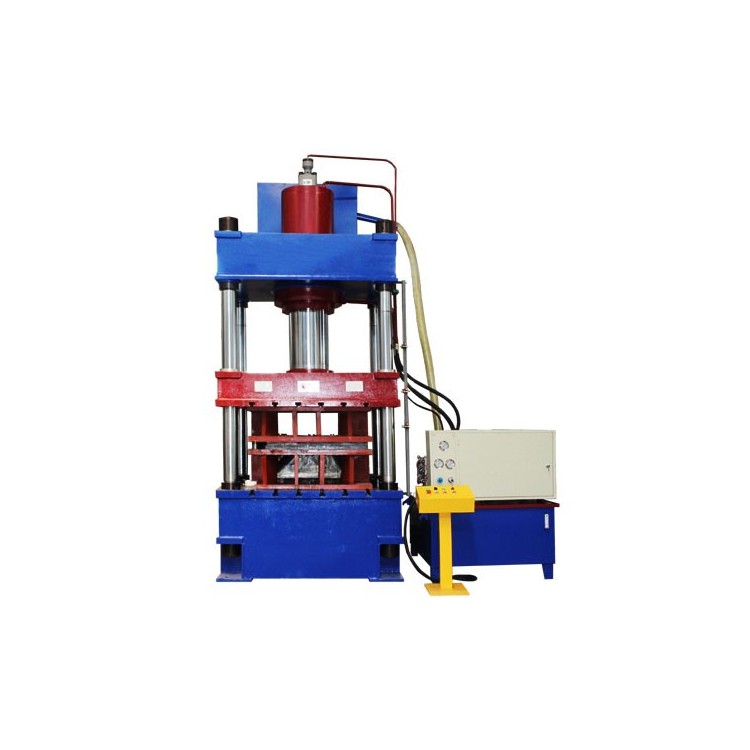

800T thin plate stretching hydraulic press

The 800-ton press door forming hydraulic press, produced by Shandong Guowei CNC Machine Tools, is a popular model. It is a type of automotive parts forming hydraulic press and also a four-column stretch hydraulic press. The machine body is constructed with a three-beam four-column structure, mainly consisting of: upper beam, slider, worktable, four upright columns, main cylinder, electrical system, and hydraulic system, etc. All three beams are welded with steel plates, treated with high-temperature annealing to eliminate welding stress, ensuring rigidity. The upright columns are made of 45# steel, all four columns are surface hardened with medium-frequency quenching and then chromed, achieving excellent hardness. For more details, please call to inquire.

800-ton Press for Automotive Door and Train Door Forging, 800t Metal Products Forging Hydraulic Press, 800-ton Metal Hydraulic Forging Press:
1. Low energy consumption, sensitive and reliable operation
2. 800-ton car door/truck door forming hydraulic press with movable cross beam, two-stage speed control for unloaded high-speed and slow-speed blank drawing; movable cross beam upper and lower limit protection, stroke adjustable
3. Equipped with safety guard grating for real-time protection of workers' personal safety
4. Deep drawing force and flanging force can be adjusted within a certain range, with the slider's effective travel adjustable.
5. The electrical system can be optionally equipped with PLC or digital circuit control, complete with a matching display unit.
6. Primarily using well-known brand hydraulic seals, ensuring reliable performance for equipment sealing.
7. The main rod features a four-nut structure, enhancing pre-tension performance and ensuring long-term stability in precision.

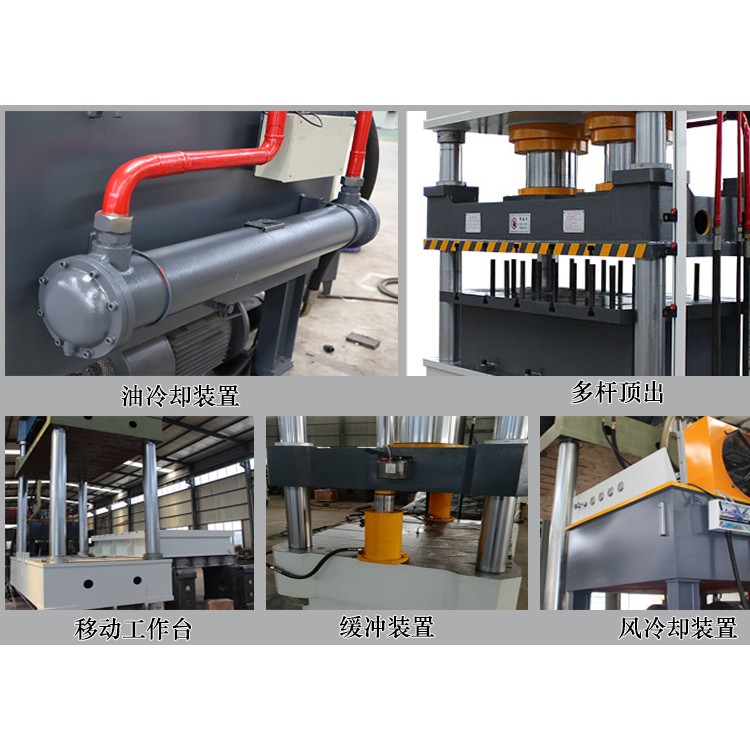

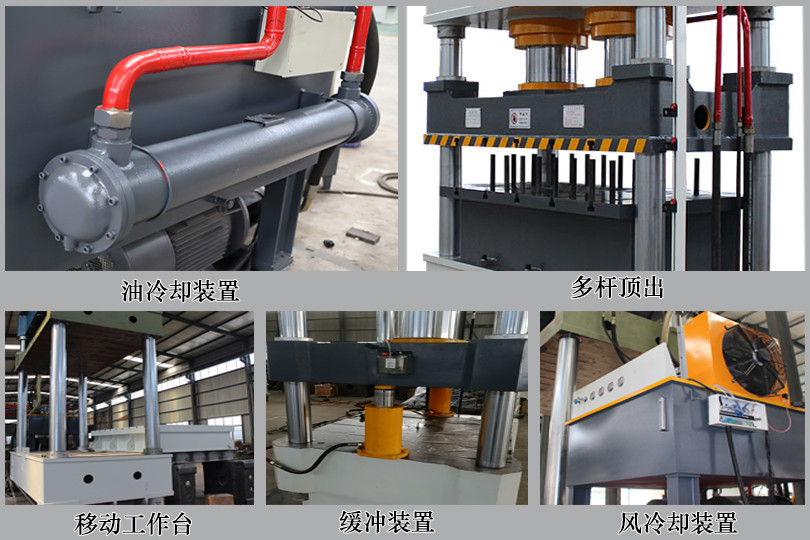

8. Increased fluid tank capacity ensures rapid filling and reduces pressure-up time. Expanded cooling surface area, lowering oil temperature.
