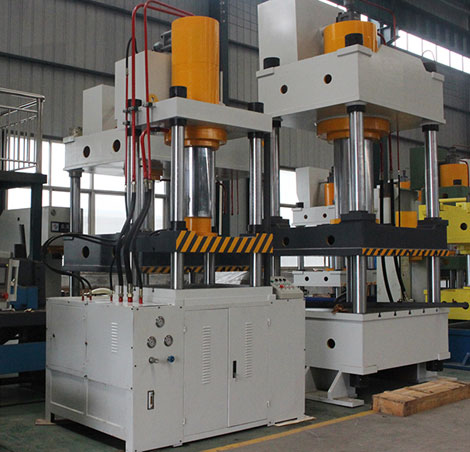

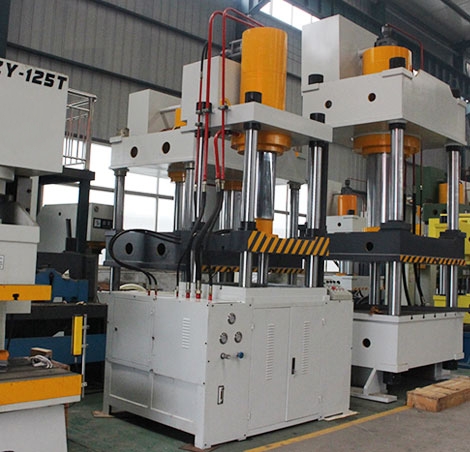

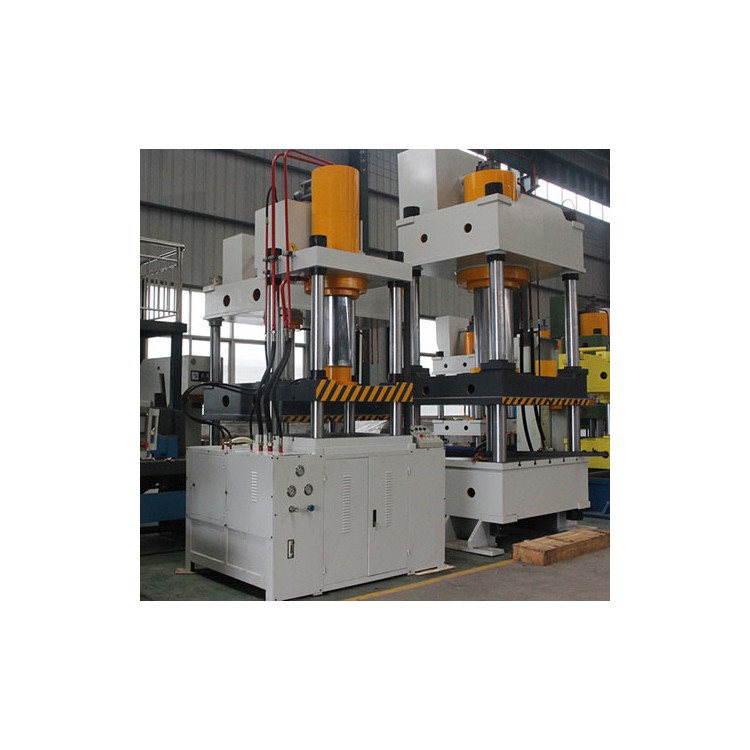

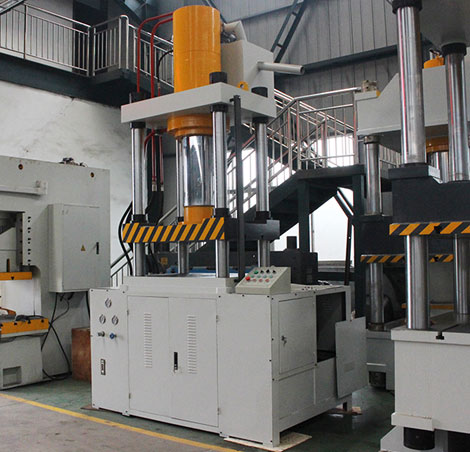

200T Three-beam Four-column Ceiling-mounted Stretching Hydraulic Press

200-ton 3-4 column stretch hydraulic press, 200T ceiling light socket stretch molding hydraulic press, custom-made for Yunnan customers.

Custom-designed based on customer parameters, our three-beam four-column hydraulic press is widely used in fastener factories, automotive repair, hardware industry, and auto parts companies. From the body structure perspective, it can also be referred to as a 200-ton three-beam four-column hydraulic press. Our factory can design it as a single-cylinder, double-cylinder, or multi-cylinder structure according to customer price and workpiece requirements. The machine consists of three main parts: the main body, hydraulic system, and control mechanism. The main body includes the body, cylinder, oil tank, etc. The hydraulic system includes the motor, pump, valve block, valves, pipelines, etc. The control mechanism includes the limiting device, pipelines, and electrical control cabinet, suitable for metal extrusion, stretching, and forming.

The following are the features of the four-column hydraulic press machine:

Low energy consumption, sensitive and reliable operation
2. Two-section speed control for the movable beam: high-speed operation under no load and slow-speed die drawing; movable beam upper and lower limit protection with adjustable stroke.
3. Equipped with safety light grid devices for real-time protection of workers' personal safety
4. Deep drawing force and flanging force can be adjusted within a certain range; the effective travel of the slider is adjustable.
5. The electrical system can be optionally equipped with PLC or digital circuit control as per customer requirements, complete with a display unit.
6. Prime hydraulic seals are selected from renowned brands, ensuring reliable performance for equipment sealing.

The hydraulic stretching press is used for straightening, assembly, packaging, block pressing, and plate pressing, among other applications. It is also suitable for the pressing process of shaft components, the calibration, clinching, and assembly of profiles, as well as bending, shaping, embossing, fitting, stretching, and forming processes of sheet metal parts. It can handle operations such as stamping, bending, flanging, and thin stretching, and can also be used for correction, assembly, and forming of plastic and powdered products. Due to its broad range of applications, it is also known as a stretching hydraulic press.
