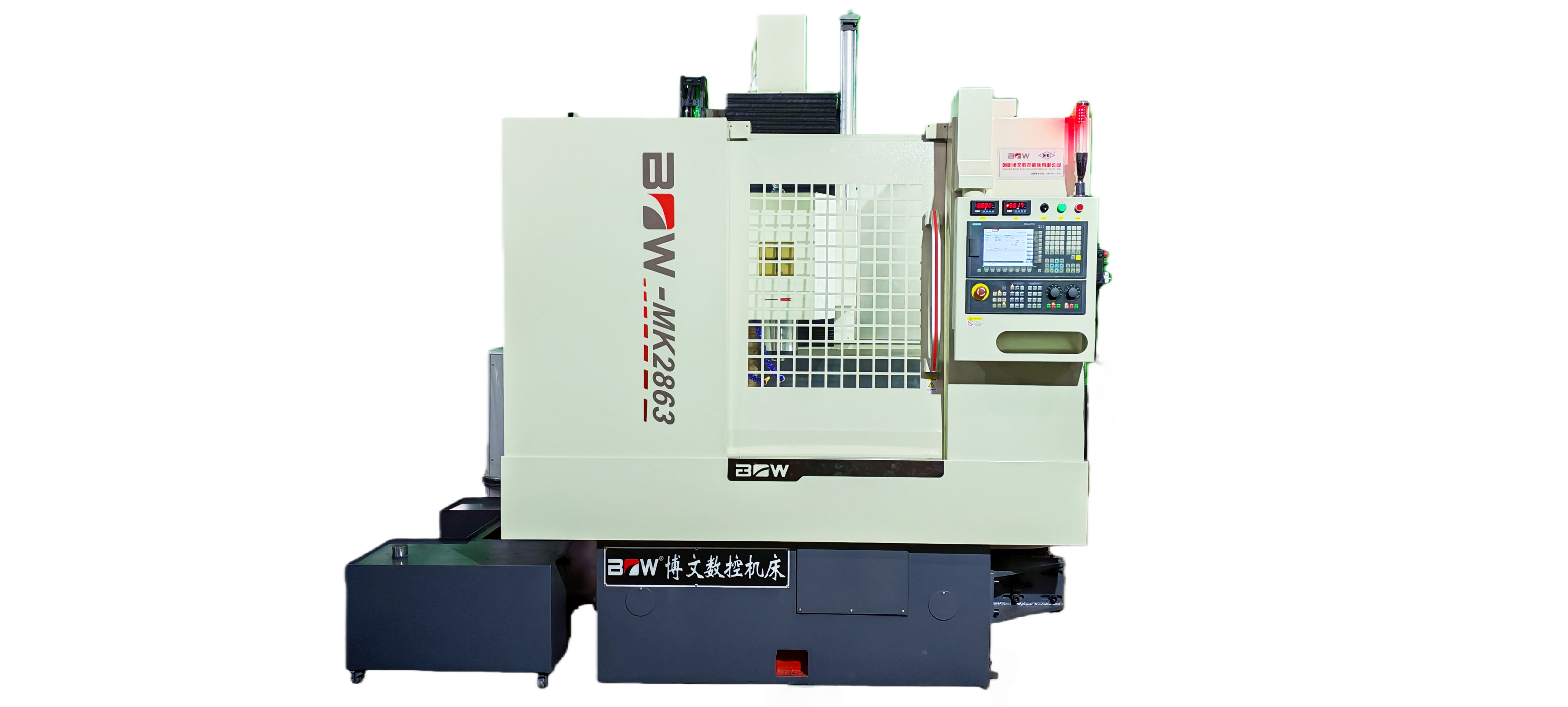

MKG28 Series CNC Vertical Curved Grinding Machine

MKG2850, MKG2860, MKG2863, MKG2880, MKG28100, MKG28130 specifications, widely used for machining internal and external curves of hydraulic motor stators, cams, etc. Grinding curve profile error ≤0.02mm,淬火钢grinding roughness up to Ra0.4μm, and size control achieving 5th grade accuracy.

MKG28 Series

Numerical Control Vertical Curved Grinding Machine Technical Parameters

Project Name MKG2850 MKG2860 MKG2880 MKG28100Worktable Diameter: φ500, φ630, φ800, φ1000 Max Workpiece Rotation Diameter: φ600, φ750, φ900, φ1100 Max Grinding Depth: 400mm, 400mm, 400mm, 400mm Max Workpiece Grinding Height: 450mm, 450mm, 450mm, 450mm Worktable Speed: 2-150 rpm, 2-150 rpm, 2-150 rpm, 2-150 rpm Worktable Load Capacity: 1000kg, 1500kg, 3000kg, 5000kg X, Z Axis Feeding Speed: 0.1-50000 mm/min, 0.1-50000 mm/min, 0.1-50000 mm/min, 0.1-50000 mm/min X, Z Axis Rapid Feeding Speed: 10 m/min, 10 m/min, 10 m/min, 10 m/min X Axis Travel: 1000mm, 1200mm, 1350mm, 1500mm Z Axis Travel: 600mm, 600mm, 600mm, 600mm B Axis Maximum Division Angle: ±180°, ±180°, ±180°, ±180° X, Z Axis Feeding Resolution: 0.001mm, 0.001mm, 0.001mm, 0.001mm Z Axis Positioning Accuracy: 0.006mm, 0.006mm, 0.006mm, 0.006mm Repeatability Accuracy: 0.003mm, 0.003mm, 0.003mm, 0.003mm B Axis Division Positioning Accuracy: "3", "3", "3", "3" B Axis Repeatability Accuracy: "2", "2", "2", "2" Number of Grinding Wheel Spindles: 1-3, 1-3, 1-3, 1-3 Grinding Wheel Line Speed: 30-50 m/min, 30-50 m/min, 30-50 m/min, 30-50 m/min Air Source Requirement: 0.4 MPa, 4000 L/min, 0.4 MPa, 4000 L/min, 0.4 MPa, 6000 L/min, 0.4 MPa, 6000 L/min
