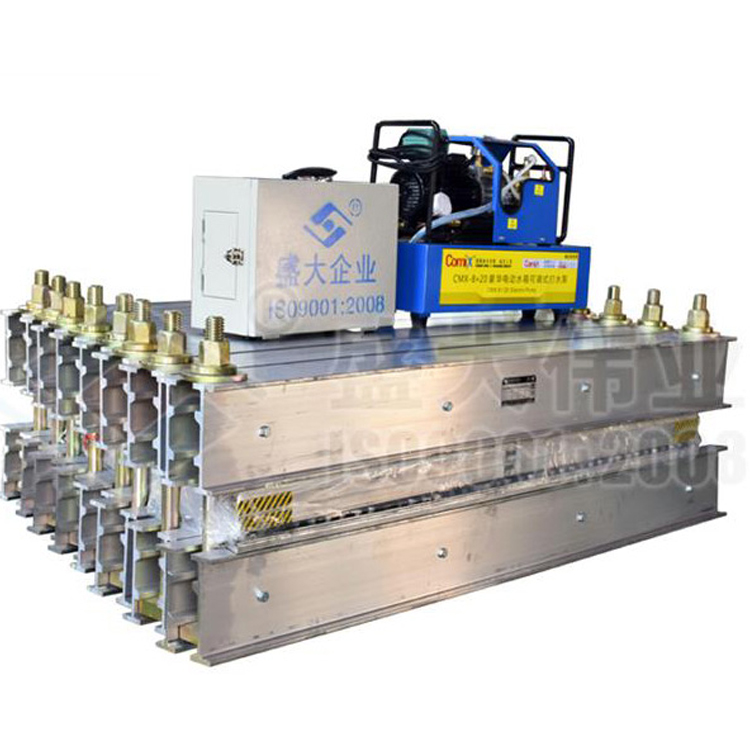

The "Great Achievements" brand SD-series electrically heated tape vulcanizing machines are specialized equipment for vulcanizing and bonding conveyor belt joints. The machine is manufactured using lightweight aluminum alloy materials, featuring a small size and light weight per unit.

Standard three-phase power supply, evenly distributed heat plate temperature, water pressure system providing uniform pressure (1.0-2.0 MPa), equipped with a lightweight fully automatic LCD digital temperature control box.The connection between the temperature control box and the main unit is

Integrated plug-in and multi-core cables completed; easy to operate, reliable performance. Also features fast warming, even temperature distribution, and high thermal efficiency.An ideal adhesive equipment for rubber belt joints in conveying machinery.

Thermal Soldering Machine Technical Specifications

Sulphur pressure: 1.5 MPa

2. Sulfurizing Temperature: 145℃

3. Sulfur plate surface temperature difference: ±3℃;

4. Heating time (from room temperature to 145℃) not exceeding 25 minutes.

5. Power Voltage: 380V, 660V, 50Hz

6. Control box output power: 36 kW

7. Temperature Range: Room temperature to 200℃

8. Timing Adjustment Range: 0-59 min

9. Top and bottom heating plates pressure: After 0.8mpa, the gap is not greater than 0.5min.

ALEX-Xiaoai® ultra-light repair tool utilizes:

1. Aluminum alloy shell electrical control box (about 30% lighter than similar steel sheet boxes)

2. German ComiX ComiX 3mm thick ultra-light heating pad (about 50% lighter than the old-style heating strips wrapped in iron sheet from competitors);

3. Pure rubber pressure water bag (approximately 70% lighter than traditional old-style water pressure boards, versatile for both watering and inflation; can still vulcanize belts normally in areas without water, such as at high altitudes or underground.)

4. Modular aluminum alloy cooling panels, capable of using both water and air, and can be assembled in a split-type vulcanization! Replace the outdated, heavy-duty cooling panels with embedded copper tubes, which are time-consuming and inefficient in cooling.

5. Ultra-light new model computer laser cutting spray-painted U-shaped rack

6. Match luxury mini air pump (can be flexibly replaced with an electric water pump, dual-purpose);

Section 3: Features and Advantages:

SD-Series Vulcanizing Machines, Repairing Machines

1. Our vulcanizing machines and repair machines feature an exclusive process and a fully automatic precision digital control system with proprietary technology, ensuring uniform and precise vulcanization temperature and pressure, as well as easy operation. The entire unit is lightweight, with more...

Lighter by one-third than the original. Reliable quality, durable performance. Exceeds the advanced level of domestic and international peers.

Two, top and bottom heating plates

Choose high-quality aluminum alloy materials, select Alcoa 7075 high-strength aerospace aluminum plate, meticulously crafted using special processes, featuring:

1. Compact and half the weight, low energy consumption, quick heating, with excellent flexibility upon heating, adheres better to tape than conventional machines. Under 1.5 MPa pressure, its parallel tightness is no more than 0.03mm.

Generally, standard machines do not possess this feature.

2. The heating plates ensure even heating across all points, both top and bottom. After 10 minutes in the insulation phase, the temperature difference across the working surface is only ±3℃ to 4℃, exceeding international standards.

3. The time from room temperature to the vulcanization temperature (145℃) is no more than 25 minutes, with power consumption half that of domestic and international counterparts, demonstrating excellent energy-saving effects.

4. Single molding with vulcanized bonding or repair; the bonded area is flat and smooth, with the same strength as the original belt.

5. Heat layer, thermal insulation layer, and bonding layer are integrated as one, with a simple structure and easy installation.

Three: Water Cooling

Internally equipped with an internationally advanced DC water cooling circulation system within the heating layer. Rapidly cools from 145℃ to 70℃ in just 5 minutes, accelerating bonding progress, enhancing belt joint strength, and maintaining belt joint integrity.

Four: Handle

The handle features an SD soft connection, remains cool to the touch during high-temperature operations, has a chrome-plated finish for a shiny and attractive appearance, and is compact and exquisite.

V. Water Pressure Plate:

1. The water pressure plate is meticulously crafted using advanced international technology. Due to its unique structure, it distributes pressure evenly throughout. After countless high-pressure tests, the water pressure plate has successfully passed a 1.875 MPa, 30-minute high-pressure test without any leakage, exceeding international standards.

2. The hydraulic plate is suitable for both hydraulic and pneumatic use.

Six, Power Cord Line Plug:

The power input utilizes a custom five-core integrated flat plug, which overcomes the drawbacks of conventional multi-wire multi-plugs, truly achieving a simplified one-piece wiring system.

7. Fully Automatic Electrical Control Box

1. The electrical components of the fully automatic electrical control box are sourced from Panasonic Corporation of Japan, featuring a liquid crystal digital display for intuitive readings. High quality and durable, it includes digital and indicator light displays, presetting sulfurization time and temperature.

The entire vulcanization process operates fully automatically; the警灯blinks, indicating the job is automatically completed.

2. The fully automatic LCD digital temperature control box is beautifully designed, compact, and employs advanced vertical double-layer waterproof technology. It features an integrated dust and waterproof outer shell, capable of operating under harsh external conditions such as sandstorms, heavy rain, and scorching sun.

3. Overload, short-circuit, and leakage protection equipped automatic leakage circuit breakers, ensuring personal safety.

4. Due to integrated wiring and automated operation procedures, with unified plugs and sockets, this electrical control box is compatible with all vulcanizers and repair machines in our factory, a feature not available in standard models.

Section 8: Handles, Nuts

Trolleys and nuts are made of high-strength steel, offering lightweight construction, high durability, and easy operation.

4. Description

Voltage can be customized to 380V, 660V, 480V, 440V, 415V, 400V, or 220V.

▲ Sulfurizing Temperature: adjustable from 0-200℃;

▲ The heating time (from room temperature to curing temperature) is not more than 25 minutes; the curing pressure is not higher than 1.5 Mpa (specifically as per the user's specifications and the factory marking).

▲ Insulation curing time is adjusted according to the tape thickness.

▲ The length of the vulcanized bonding tape joints can be spliced individually or in multiples, as needed.

▲ Please ensure to specify the product model and specifications when placing an order, and indicate the width of the transport belt, its tensile strength, and the required vulcanized bonding kilogram pressure.

▲ Electric pump users can place additional orders as needed.
