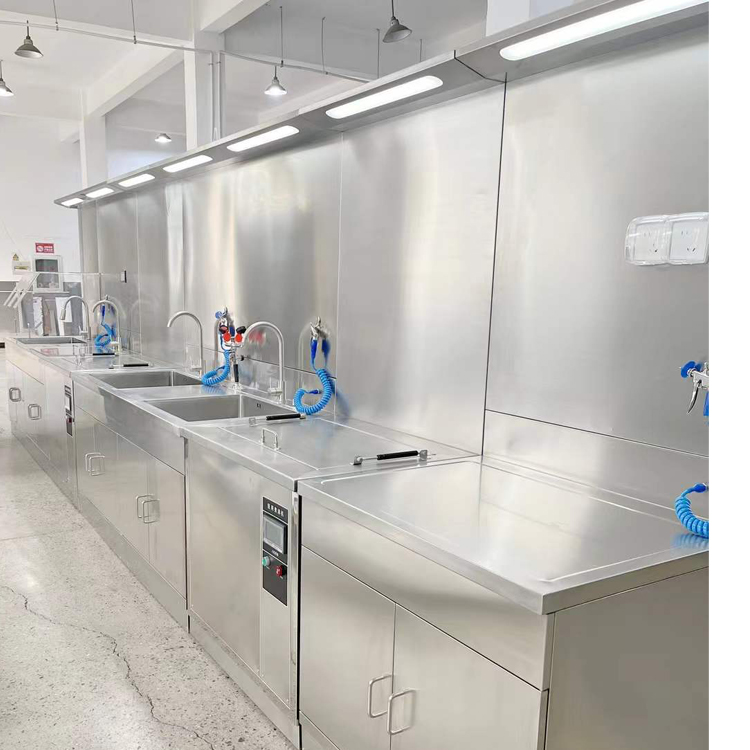

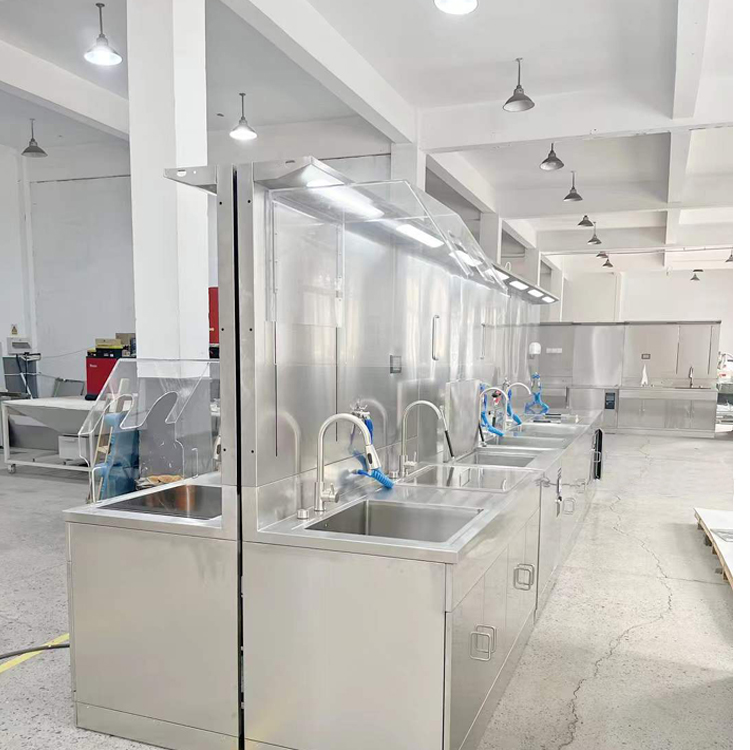

Stainless Steel Cleaning WorkstationThis product is crafted from SUS304 stainless steel, offering corrosion resistance and anti-bacterial properties. It consists of a stainless steel five-sided slot and a drying platform, meeting the standards for endoscope cleaning. These standard units can be individually combined to meet the needs of hospitals, catering to various customer requirements. It includes an oil-free silent air compressor, an automatic flushing system, an endoscope drying machine, and specialized faucets. The product boasts an aesthetically pleasing, elegant, luxurious design, complete with comprehensive configurations and powerful functions, seamlessly integrating technology and humanism.

(Special Hand Washing Trough)

Product Model: MY-1709

Dimensions: 1600(L) * 800(W) * 850/2000(H) mm

Single槽 + PVC Protective Cover + Drainage Shelf + Modular Cabinet

Dimensions: 1800(L) x 800(W) x 850/2000(H)mm

Double Sink + Drainer + Combination Cabinet

Dimensions: 2200(L) x 800(W) x 850/2000(H) mm

Three-slot + combination cabinet

:3400*800(W)*850/2000(H)mm:

Four Slots + Workbench + PVC Protective Cover

Bowl Capacity: 600 (L) x 500 (W) x 280 (H)

Technical Description

Manual mixing faucet, high-end countertop drain, infinitely adjustable manual

Adjustable PVC protective guard, capable of stopping at any position, with LED lighting

Warm light spotlights, water mist gun

2. The tank is made of high-quality 304 stainless steel, featuring volume markings inside the tank

3. Manual cleaning for special pollutants.

Attached manual cleaning trough

1. Specifications: Four-bay unit with platform, featuring one-piece molding of cabinet, countertop, and bays; equipped with a flushing shield as per standard operational procedures, and pre-set positions for water and air guns (Note: Includes a lift-up shield with a stainless steel back panel, and two water and air guns). Cabinet door with a sealing panel and lock.

2. Material: Tank is made of GB standard SUS316 stainless steel, capable of being soaked in 24/7 in highly corrosive disinfectants containing chlorine and acidified water, the rest is GB standard SUS304 stainless steel.

3. Material Specifications: Tank thickness: 1.5mm, countertop and cabinet door panel thickness: 1.2mm, other panel thickness: 1.0mm

4. High-quality copper-core faucets with adjustable mist function and a debris filter mesh

5. The lower section of the platform is configured with an area for placing the cleaning baskets.
