1. Overview of Application
Heat treatment services for rapid temperature rise requirements, including elemental analysis determination for laboratories, industrial and mining enterprises, scientific research units, sintering and dissolution analysis of ceramics, precise annealing and crystallization of glass, precise annealing of crystals, preparation of ceramic glazes, powder metallurgy, sintering of nanomaterials, quenching, annealing, and tempering of metal parts.
2. Product Features

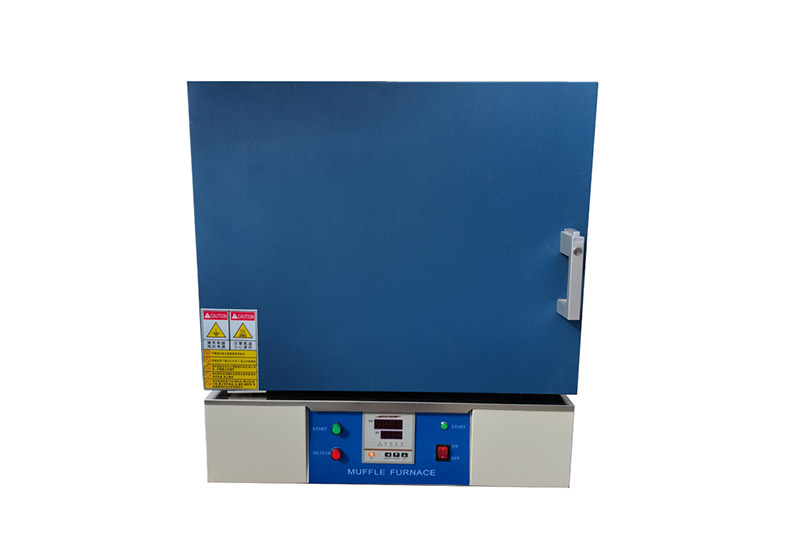

Large-screen LCD display, all-in-one machine design, unique door furnace design for safe and easy door operation.
The box shell is made of high-quality cold-rolled steel plate, and the shell color paint is baked at high temperature to ensure durability.
Equipped with a microcomputer PID controller, precise temperature control and safe and reliable performance.
Unique design, attractive appearance, rational structure, even temperature field, environmental protection and energy saving, easy to use.
Equipped with multiple safety protection measures such as overcurrent, overvoltage, overheating, leakage, and short circuit, ensuring safe operation.
3. Furnace Selection

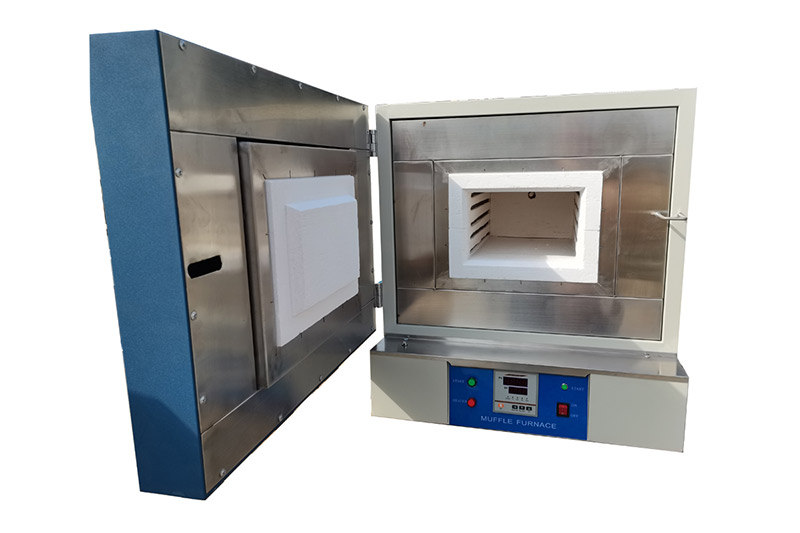

Ceramic fiber furnace chamber (with "A" series), capable of meeting various rapid sintering requirements, is an upgraded and replaced product for traditional furnace chambers.
Lightweight, half the weight of traditional muffle furnaces, with extended lifespan.
*Quick heating rate, twice as fast as a standard muffle furnace;
Low energy consumption, about 40% of the ordinary muffle furnace.
Excellent thermal insulation; the box body and furnace are designed with a double-layer structure and use ceramic fiber as the insulation material. At 1000°C, the surface temperature of the furnace is only about 50°C (the national standard is 100°C), and the outer shell remains cool to the touch for an hour after, preventing burns.

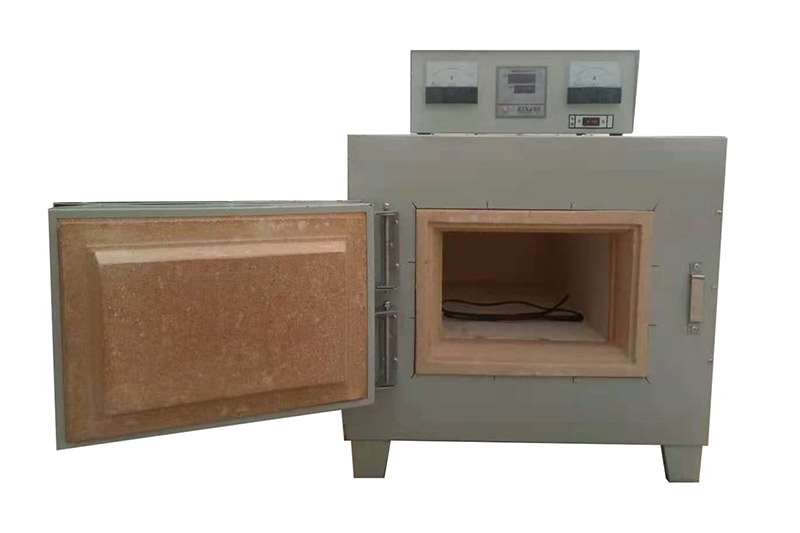

* Refractory Brick Furnace (SX2 Series), utilizing traditional refractory materials, features wide application and high cost-performance ratio.
4. Optional Accessories
Smart Programable Temperature Controller
Needle Printer
RS485 Interface and Communication Software
