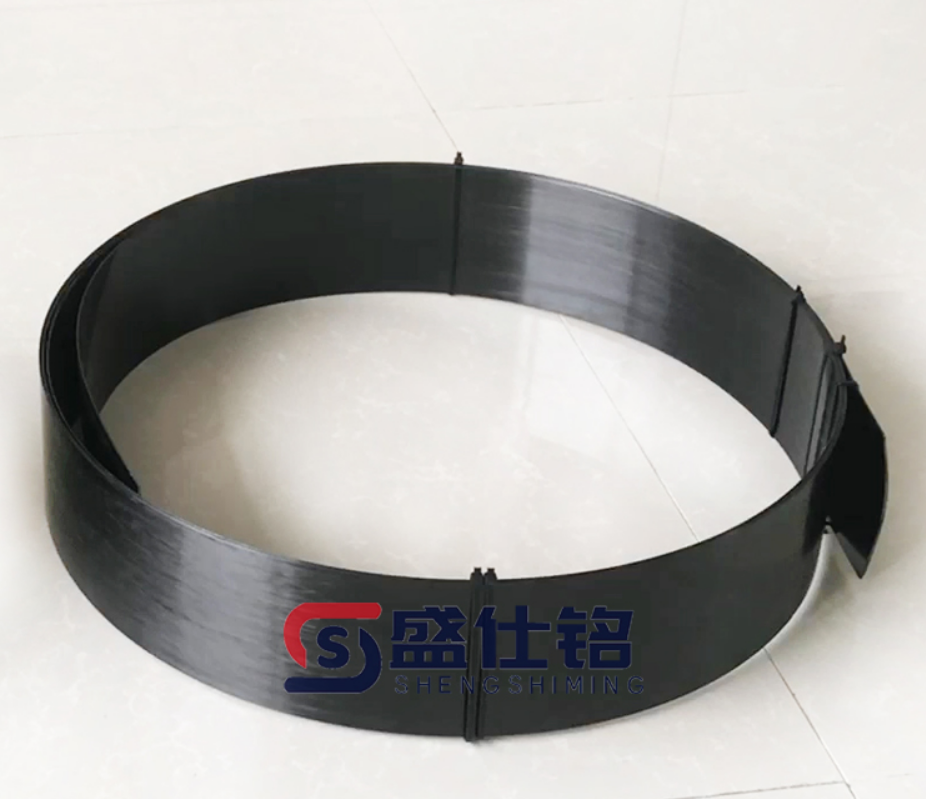

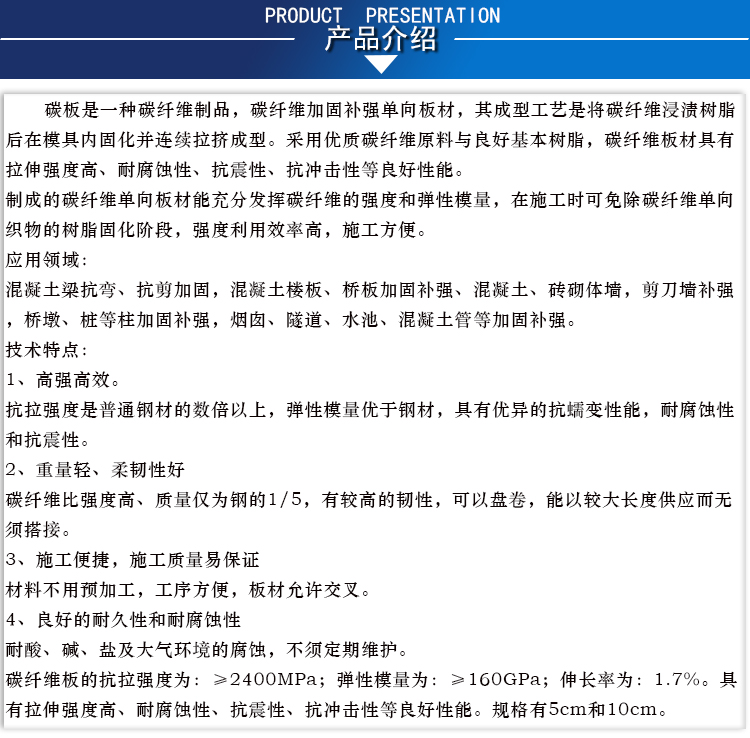

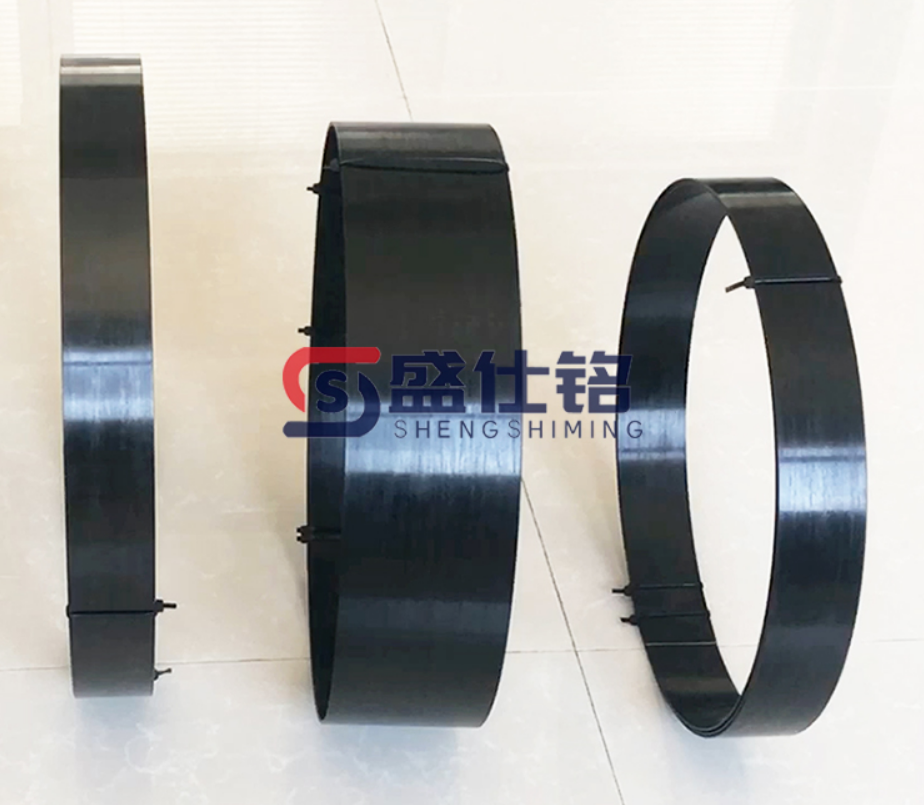

Carbon panels are a product made of carbon fiber, which is a unidirectional reinforcing plate strengthened with carbon fiber. The molding process involves impregnating the carbon fiber with resin and then curing it in a mold before continuously extruding it into shape. Made with high-quality carbon fiber materials and excellent basic resins, carbon fiber panels offer excellent properties such as high tensile strength, corrosion resistance, vibration resistance, and impact resistance.
Manufactured carbon fiber unidirectional sheets fully utilize the strength and elastic modulus of carbon fiber, eliminating the resin curing stage of carbon fiber unidirectional fabrics during construction. They offer high strength utilization efficiency and are easy to install.
Application Fields:
Reinforcement for concrete beams in flexural and shear, reinforcement for concrete floors and bridge decks, concrete and brick masonry walls, shear wall reinforcement, pier and pile reinforcement, reinforcement for chimneys, tunnels, ponds, concrete pipes, etc.
Technical Features:
1. High strength and efficiency.
Tensile strength is several times higher than that of ordinary steel, with a better modulus of elasticity and excellent resistance to creep, corrosion, and seismic activity.
2. Lightweight and flexible
Carbon fiber boasts a high strength-to-weight ratio, weighing only one-fifth of steel, and offers excellent toughness. It can be coiled and supplied in longer lengths without the need for splicing.
3. Easy installation with guaranteed construction quality
Materials do not require pre-processing, operations are convenient, and boards allow cross-lamination.
4. Excellent durability and corrosion resistance
Resistant to corrosion from acids, alkalis, salts, and atmospheric conditions; no regular maintenance required.

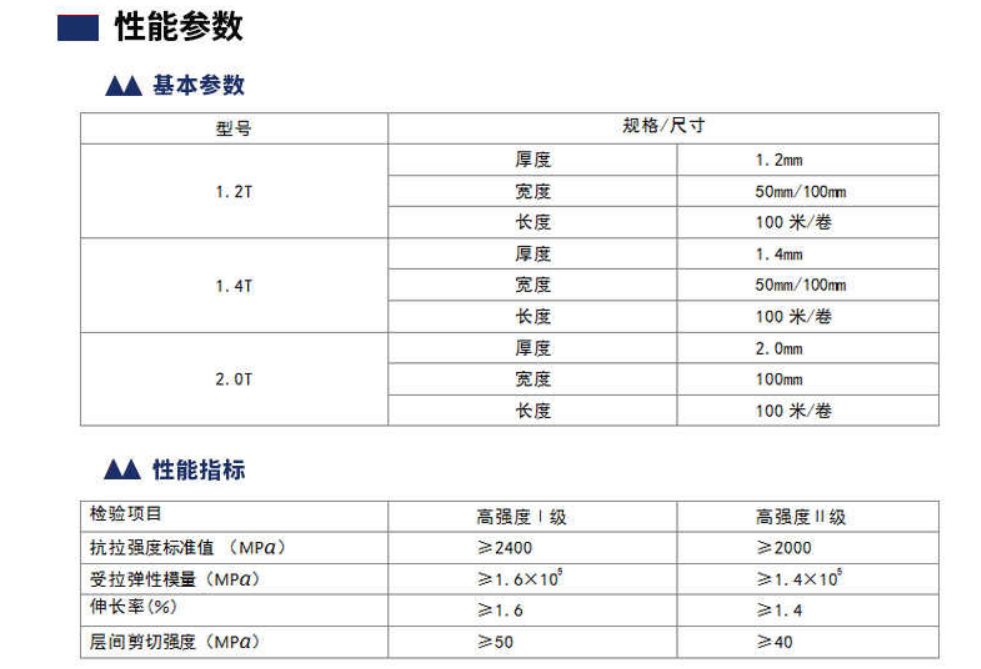

The tensile strength of the carbon fiber board is ≥2400MPa; the elastic modulus is ≥160GPa; the elongation is 1.7%. It boasts excellent properties such as high tensile strength, corrosion resistance, seismic resistance, and impact resistance. Available sizes include 5cm and 10cm.
