Product Specifications

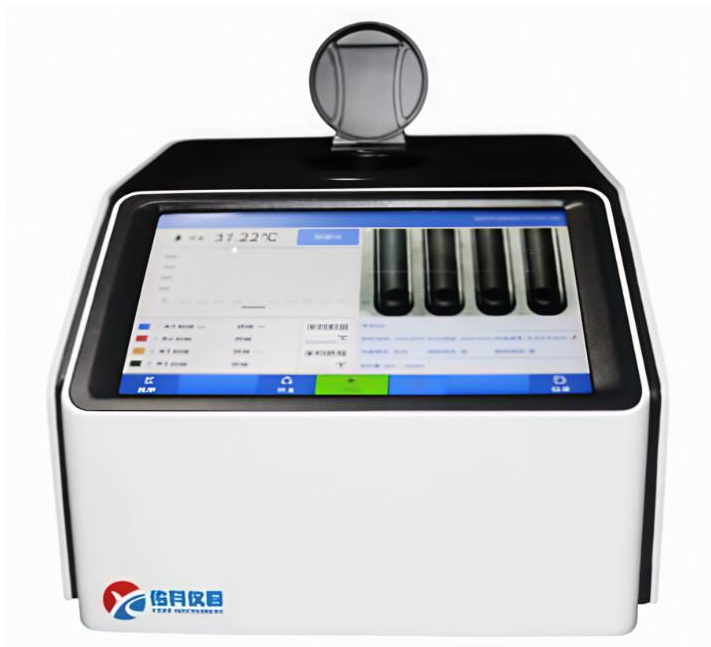

MP-V360 Fully Automatic Visual Melting Point Instrument is supplied across Hangzhou, Shanghai, Shenzhen, Beijing, Guangzhou, and other major cities in China. The instrument combines high-precision temperature control technology with high-definition video camera technology, providing users with accurate, stable, and reliable test results, as well as an efficient and convenient testing experience. The high-definition video allows for a clear view of the entire melting process of the sample, facilitating accurate measurement of the sample's melting point and distance.
Product Details
Melting Point refers to the temperature at which a solid substance transitions into a liquid state under a specific pressure. In the field of chemistry, the determination of melting point is a fundamental method for identifying the nature of substances and is also one of the important methods for measuring parameters such as purity, content, and type.
I. Definition of Melting Point
1. Physical Meaning: The melting point refers to the temperature at which a solid substance transitions into a liquid state under a certain pressure. At this temperature, the solid and liquid are in a state of equilibrium.
2. Phase Change Process: When the temperature reaches the melting point, the molecules or atoms of the solid gain enough energy to overcome the constraints of the crystal lattice structure and transform into a liquid.
The MP-V360 Automatic Melting Point Tester combines high-precision temperature control technology with high-definition video camera technology, not only providing users with accurate, stable, and reliable test results but also offering an efficient and convenient testing experience. The high-definition video allows for a clear view of the entire melting process of the sample, facilitating precise measurement of the sample's melting point and distance.
II. Instrument Features:
1. 10.1-inch capacitive touch screen, full Chinese operating interface
2. 720p high-definition camera, real-time observation of sample melting details
3. Display videos and curves, including video playback
4. Comprehensive user management, allowing administrators to add, delete, and lock users.
5. 100 adjustable experimental parameters to meet diverse customer needs
6. Automatically generate reports, export in PDF format, comprehensive content
7. Extended video recording, large storage capacity
8. Ultra-wide heating rate of 0.1℃-20℃ per minute, with stepless speed control
9. 4 capillary tubes, capable of processing two samples simultaneously, automatic production reports, automatic calculation of mean difference and standard deviation
10. Supports data export and Bluetooth printer connectivity
11. Calibration, 3-point Temperature Calibration (Automatic + Manual Input Calibration)

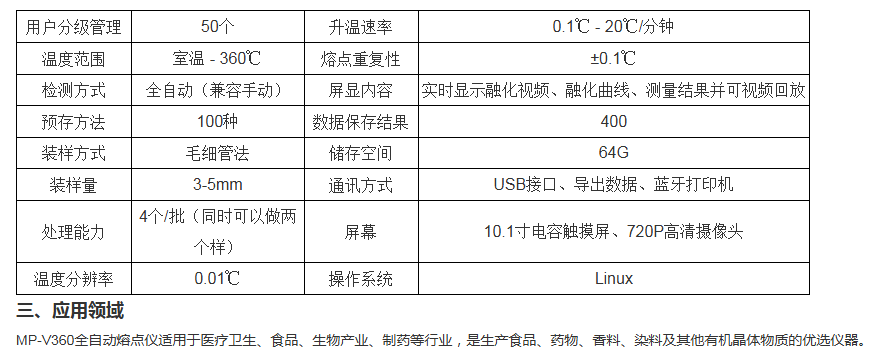

II. Main Technical Specifications
