Product Specifications

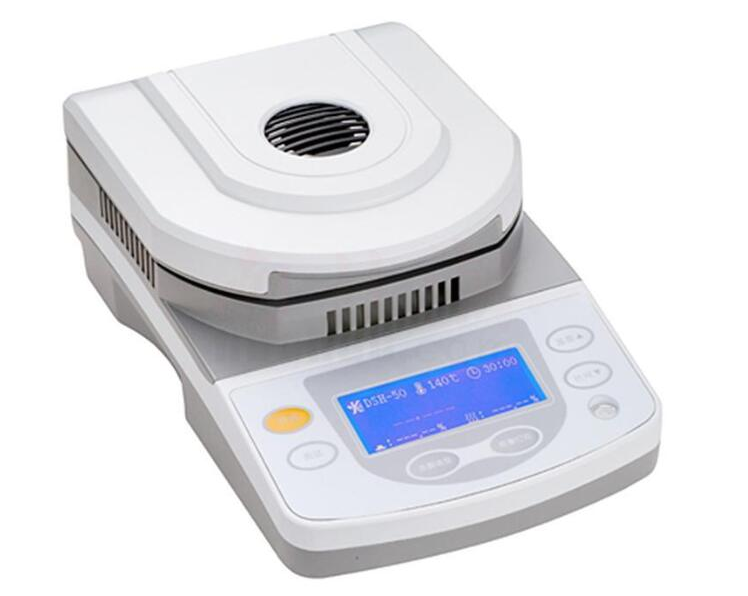

DSH-50A-5 Halogen Moisture Analyzer with High-Precision Insulating Sensor, reliable data collection temperature. Utilizes halogen lamp for heating and drying, quick temperature rise, short testing time.
Product Details
With the continuous development of industry and technology, moisture measurement has become an indispensable step in many fields. In industries such as chemicals, pharmaceuticals, food, and building materials, accurate testing of moisture content is crucial for quality control. Traditional moisture testing methods often require significant time and labor, and are prone to large errors. Therefore, an efficient, precise, and reliable moisture measurement instrument has become an urgent issue in the industry.
DSH-50A-5 Instrument Features:
1. High-resolution backlit LCD display, ideal for operation in dark conditions, offering enhanced visual comfort.
2. Push-button chain disk for added convenience in operation.
3. High-precision insulated sensor, reliably collects temperature data.
4. Utilizes halogen lamp for heating and drying, with rapid temperature rise and short testing time.
DSH-50A-5 Instrument Specifications:
1. Weighing Range (g): 0~50g
2. Readability: 5mg
3. Terminal Control: Timed, Automatic
4. Heating temperature range: 50-160 degrees
5. Suggested sample quantity: 3-10g
6. Heat Time: 1-99 minutes, 1-minute interval
7. Heating Program: Standard
8. Repeatability (3g sample): 0.3%
9. Sample Quantity: 0.5
10. Communication: RS232
11. Net Weight: 5 kg
12. Total Weight: 6 kg
13. Heating Source: Halogen Lamp
14. Displayed Content: Moisture%, Solids%, Weight, Time, etc.
15. Weighing Pan Size: 100mm
16. Dimension: 265x160x150
Section 3: Halogen Moisture Analyzer Function
During the testing process, the dry condition can be directly confirmed, and the estimated completion time can be deduced.
2. IntegratedR 2 32C output interface, capable of connecting to computers, printers, and other peripherals.
3. With its automatic peeling function, it can continuously perform measurements without interruption and achieve accurate readings through zero-point drift calibration.
