Product Specifications
DSH-50A-1 Halogen Moisture Meter is used for rapidly determining the free moisture content in various samples such as chemical raw materials, grains, minerals, biological products, food, paper, and textile raw materials.
Product Details
In various fields such as food, chemicals, pharmaceuticals, and agriculture, accurately measuring the moisture content in samples is crucial. This not only ensures product quality and safety but also effectively controls production costs. To meet this need, a variety of moisture measurement instruments have emerged in the market.

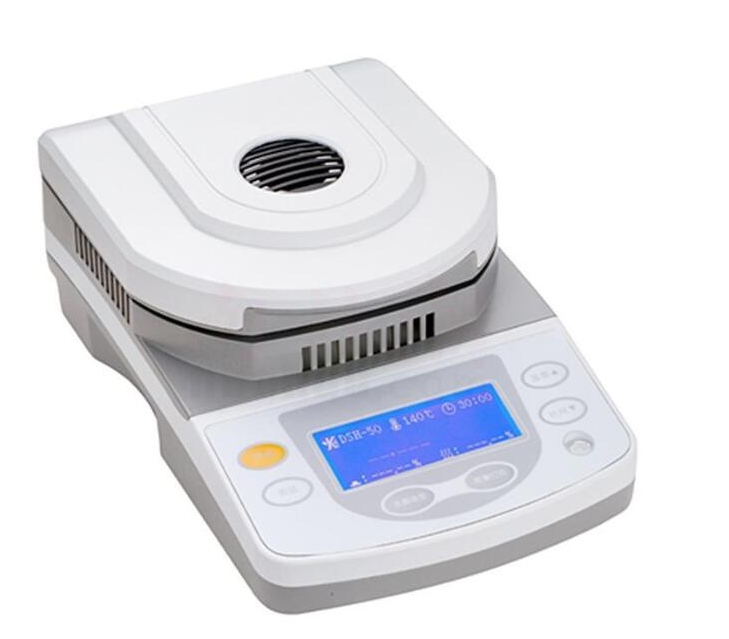

The DSH-50A-1 Halogen Moisture Meter is a moisture measurement instrument that uses a halogen lamp as a heating source, designed for quickly determining the free moisture content in various samples such as chemical raw materials, grains, minerals, biological products, food, pharmaceutical raw materials, paper, and textile materials.
During testing, the dry state can be directly confirmed and the completion time estimated. With the automatic peeling function, continuous measurements can be taken instantaneously, and accurate measurements can also be achieved through zero-point drift correction.
I. Instrument Features:
High-resolution backlit dot matrix LCD display for comfortable operation in dark environments.
2. Push-button chain disk for added ease of operation.
3. High-precision thermal insulation sensors, reliable data temperature collection.
4. Utilizes halogen lamp for heating and drying, offering rapid temperature rise and short test time.
II. Instrument Parameters:
1. Readability: 1mg
2. Weighing Range (g): 0~50g
3. Repetition (3g sample): 0.2%
4. Sample Quantity: 0.5
5. Recommended sample quantity: 3-10g
6. Heating Time: 1-99 minutes, 1-minute intervals
7. Heating Program: Standard
8. Heat Source: Halogen Lamp
9. Heating Temperature Range: 50-180°C
10. End-point Control: Timed, Automatic
11. Display Content: Moisture%, Solids%, Weight, Time, Date, etc.
12. Weighing Pan Size: 100mm
13. Dimensions: 265x160x150
14. Net Weight: 5 kg
15, Communication: RS232
16. Total Weight: 6 kg
Section 3: Usage Instructions:
1. Connect power, turn on the machine, and set up the test conditions.
2. Place the sample in the sample tray, gently shake it to evenly spread the sample across the tray.
3. Click "Start Test," and the instrument will operate automatically.
4. After testing, retrieve the test results, and record them once the instrument has cooled to room temperature.
The DSH-50A-1 Halogen Moisture Meter is a precise, efficient, and reliable moisture measurement tool, suitable for both laboratory settings and production sites. Whether controlling moisture content in raw materials or testing finished products, it delivers satisfactory results. Thus, this equipment has found wide application in various fields such as food, chemicals, pharmaceuticals, and agriculture.
