Product Specifications

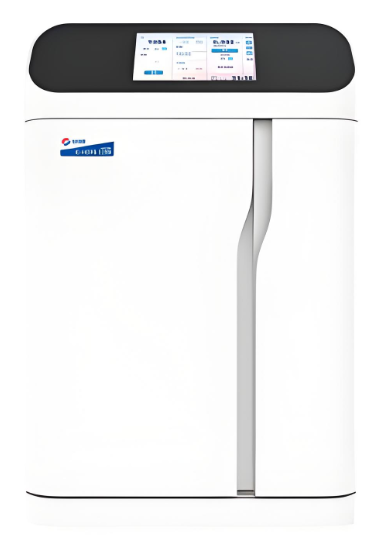

The IC-hope1800S (Shanghai Youke) integrated ion chromatograph features an all-in-one appearance and professional component modular design, all-plastic flow path, free of leachate contamination, and a comprehensive flow path protection system. It comes with a one-button flushing function for easy operation by customers.

Product Details

Integrated Ion Chromatography Instrument Technical Specifications

1. Features an integrated appearance with professional component modular design, all-plastic flow path, free of leachate contamination and a comprehensive flow path protection system.

2. Dual anion/cation channel detection, capable of simultaneously detecting anions and cations; external淋洗液发生器 (eluent generator) with or without options available.

3. 10.0-inch touch screen main unit, featuring an integrated, simple, and reliable control software, displaying real-time full-screen parameters such as conductivity, current, flow rate, range, pressure, and rinsing generator reverse control status of the six-way valve, as well as inhibitor status.

The instrument can monitor in real-time and display parameters and analysis results suitable for real-time analysis. The main unit is equipped with a graphical interface for conductivity, capable of real-time display of continuous sampling, waveform area, and sampling cycle control functions. It allows for online modification and collection of working parameters of various components, automatically performs rapid data acquisition and post-processing, and has traceability functions for instrument-related data and operational status, facilitating fault troubleshooting, status monitoring, and spectral display features.

4. One-touch flushing function for easy customer operation of the instrument;

5. Equipped with a computer interface and touch screen synchronous control mode, featuring comprehensive system monitoring capabilities, real-time monitoring of the instrument's operational status, revision of working parameters, and data information protection memory function for ease of use.

6. Integrated appearance design, user-friendly GUI graphic navigation system, simple and intuitive operation, aligns with user operational habits, easy for users to master and use.

7. Automatic temperature control ensures a constant temperature for the separation column during detection and analysis, and automatically heats up to the optimal temperature of the column at low temperatures to extend its service life.

8. Excellent anti-interference capability and rich expandability. Compatible with UV/VIS detectors or pH, COND modules, suitable for the analysis of unconventional samples, versatile in use.

9. To enhance the instrument's sensitivity and stability, and meet the diverse testing needs of users, the entire machine utilizes industrial-grade electrical components and advanced shielding technology.

10. High-resistance to strong acids and alkalis, these joints and flow paths offer excellent versatility, are compatible with organic solvents, enhance the system's ability to withstand high pressure, and eliminate potential leaks in the flow path.

11. The main unit can automatically identify the valve switching position signal and initiate software analysis, greatly reducing errors caused by manual operation.

12. The main unit can automatically perform maintenance and care, regularly initiating flush cycles for various system components to prevent pipeline crystallization.

13. Accompanied by excellent selectivity and separation of chromatographic columns, anions such as NO2-, NO3-, SO42-, PO43-, F-, Cl-, Br- and common anions like ClO2-, BrO3-, ClO3- can be detected and analyzed; cations like Li+, Na+, NH4+, K+, Mg2+, Ca2+ and others are also detectable.

14. Supports multiple detection modes: Direct Conductance Detection, Suppressed Conductance Detection, Ampere Detection, and Conductance-Ampere Series Detection.

15. Can switch ranges as required.

16. Anion and cation dual-channel switching as required.

17. The KIC-1800S Ion Chromatograph is an upgraded model, featuring a dual system for anion and cation selectivity, with an intelligent large screen and four selectable ranges for on-demand operation. It offers dual system detection for anions and cations, allows manual preparation of eluents, or can be externally equipped with an eluent generator. Customers can customize their configurations based on their testing requirements and budget.
