Product Specifications
The IC-hope 1200 fully automatic ion chromatograph integrates advanced achievements from both domestic and international ion chromatography research. It boasts high detection sensitivity, high operational stability, and modularized function combinations. It can be configured with various detection modes according to customer needs: direct conductivity detection, suppressed conductivity detection, amperometric detection, and conductivity-amperometric series detection.
Product Details

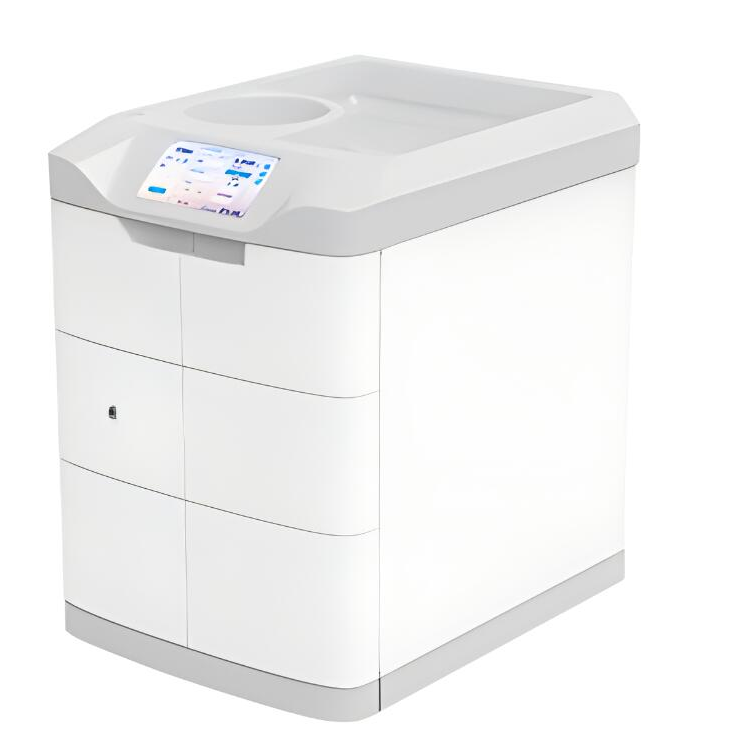

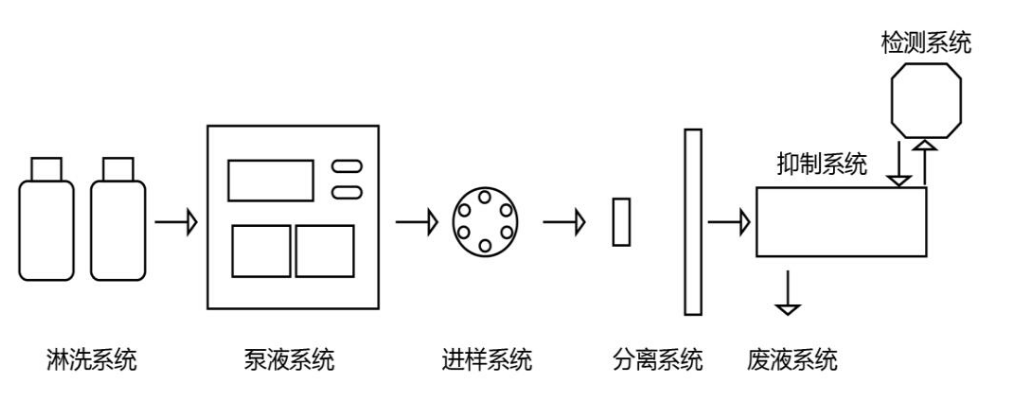

The IC-hope 1200 fully automatic ion chromatograph is a high-performance ion analysis instrument launched by Shanghai Youke Instrument Co., Ltd. It can perform suppressed or non-suppressed conductivity detection and amperometric detection. It consists of the main housing, a full PEEK dual-plunger tandem pump, a sample injection valve, a protective column/separation column, a column oven with preheating function, an electrolytic self-regenerating suppressor, a conductivity detector with a temperature control unit, an amperometric detector, and a multi-channel data processing and instrument control software system.
The IC-hope 1200 integrates advanced achievements from both domestic and international ion chromatography research, boasting high detection sensitivity, high operational stability, and modularized function combinations. It can be configured with various detection modes based on customer detection requirements: direct conductivity detection, suppressed conductivity detection, ampere detection, and conductivity-ampere series detection. Suitable for detection work in various fields such as environmental monitoring, disease control, pharmaceuticals, chemicals, metallurgy, hydrogeology, agriculture, feed, electronics industry, electricity, nuclear energy research, food safety, and scientific research and teaching.
IC-hope 1200 Ion Chromatograph Product Features:
1. Integrated appearance with professional component modular design, all-plastic conduit, free of leachate contamination and with an excellent conduit protection system.
2. The main unit features a 7.0-inch touchscreen with an embedded simple and reliable control software, displaying full-screen real-time parameters such as conductivity, current, flow rate, range, pressure, and rinsing generator reverse control status, as well as inhibitor status.
3. One-touch rinsing function for easy operation of the equipment by customers.
4. Utilizes a computer interface and touch screen synchronized control mode, featuring comprehensive system monitoring capabilities, real-time monitoring of instrument operation status, and revision of working parameters. Additionally, it has data information protection and memory function for convenience of use.
5. Integrated appearance design, user-friendly GUI graphic navigation system, easy to operate and understand, conforms to user operational habits, and facilitates user mastery of usage.
6. Auto-temperature control feature ensures constant temperature for the separation column during detection and analysis, and automatically heats up to the optimal temperature of the column in low-temperature conditions to extend its service life.
7. Strong anti-interference capability and extensive expandability. Compatible with UV/VIS detectors or pH, COND modules, suitable for analyzing unconventional samples, multi-functional in one unit.
8. To enhance the sensitivity and stability of the instrument, and meet the diverse detection requirements of users, the entire unit utilizes industrial-grade electrical components and advanced shielding technology.
9. High resistance to strong acids and alkalis for connectors and flow paths, with good versatility, compatible with organic solvents, enhancing the system's high-pressure resistance, and eliminating the risk of leakage in the flow path.
10. The main unit can automatically identify the signal of valve switch positions and initiate software analysis, thereby avoiding errors caused by manual operation.
11. The main unit features automatic maintenance and service, regularly initiating a flush of the system components to prevent pipeline crystallization.
12. With superior selectivity and separation, the chromatographic column can detect nine common anions in water (including disinfection by-products) and also facilitate the rapid separation of seven common anions.
Section II: IC-hope 1200 Ion Chromatograph Product Specifications:
1. Infusion Unit: High-pressure, low-pulse, double-plunger tandem pump, featuring a pump head and pipeline made of inert PEEK material.
Flow Rate Range: 0.001-10.000 mL/min.
3. Maximum Pressure: ≥35 Mpa.
4. Flow stability: ≤0.1% (1.0 mL/min).
5. Flow Accuracy: ±0.1% (1.0 mL/min).
Section 3: National Standard Testing Items and Recommended Standards
Anionic Analysis Detection
(1) Analyze and test for cosmetics in accordance with GB/T 24800.13-2009Nitric AcidSalt content
(2) Analyze and test bromate and food additives in wheat flour according to GB/T 20188-2006.
(3) Analysis and testing of GB 5009.33-2010 for food contaminantsNitric AcidSalt &Nitric AcidSalt content
(4) Analyze and test the anion and cation content in the 2010 edition of the Chinese Pharmacopoeia.
(5) Analyze and test the chloride and sulfate content in concrete admixtures according to GB/T 8076-2008.
(6) Analyze and test the halogen ions F-, Cl-, Br-, and I- in the ROHS directive's halogen-free testing standard.
(7) Analyze and test the anions in the graphite anode materials of lithium-ion batteries according to GB/T 24533-2009.
(8) Analyze and test F-, Cl-, PO43-, NO2-, NO3-, SO42- in industrial cooling circulating water and boiler water according to GB/T 14642-93.
(9) Analyze and detect seven conventional anions and disinfection by-products in drinking water in EPA: F-, Cl-, NO2-, PO43-, Br-, NO3-, SO42-, ClO2-, BrO3-, ClO3-.
(10) Analyze and test the inorganic anions and cations, as well as disinfection by-products such as bromine, hypochlorite, chlorate, and bromate, according to the GB/T 5750-2006 "Methods for Examination of Drinking Water Standards."
2. Cation Analysis and Detection
(1) Analyze and test for routine cations: Li+, Na+, NH4+, K+, Mg2+, Ca2+, and others.
(2) Analyze and test the content of natural betaine in feed additives according to GB/T 21515-2008.
(3) Analyze and test the content of choline chloride in the pre-mixed material according to GB/T 17481-2008.
(4) Analyze and test organic amines (primary, secondary, tertiary, quaternary ammonium salts, etc.), cadaverine, putrescine, histamine, spermidine, etc.
(5) Analyze and detect other metal ions: Sr2+, Ba2+, Zn2+, Fe2+, Mn2+, Ni2+, Cu2+, Co2+, etc.
3. UV/Visible Light Detector
Analyze and detect SCN-, NO2-, NO3-, melamine, etc.
(2) Analyze and test for aflatoxins in food according to GB/T 5009.33-2010Nitric AcidSalt andNitric AcidSalt
4. Ampere Detector: Analyzes and detects S2-, CN-, I-, sugar, amino acids, aminoglycoside antibiotics, as well as Fe2+, Fe3+, and more.
