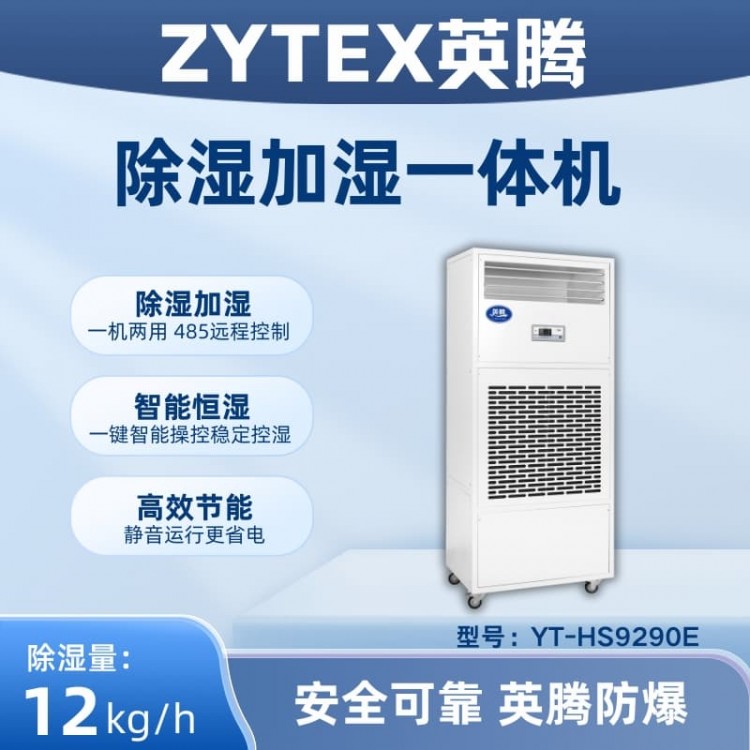

Yiting Constant Humidity Purification Integrated Machine Product Specifications
Model: YT-HS9290E
Brand: YingTeng
Adjustment Range: 10%-95%
Control Accuracy (Dehumidification): 3%
Control Accuracy (Humidification): ±5%
Dehumidification Rate (30℃ 80%): 12 kg/h
Humidification Rate: >8kg/h
Voltage: 380V/50Hz
Airflow: 2500 m³/h
Humidifier Type: Wet Film (optional electrode type)
Rated Power: 3750W
High Power: 5700W
Electrical Shock Protection Type: Type Ⅰ
Control System: 7-inch touchscreen
Body Dimensions: 765×550×1800mm
Product Weight: 140 kg
Applicable Temperature: 5°C - 38°C
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall prevail.
Yiting Constant Humidity Purification Integrated Machine Product Features
1. Corrosion treatment
This unit is constructed with high-strength steel for the frame, featuring a novel design and simple, rational structure, making installation easy. The exterior of the unit is treated with spray painting for corrosion resistance, while internal components like the water tray are made of anti-corrosive materials. The interior door panels and copper pipes are also covered with corrosion-resistant insulation, effectively extending the product's lifespan.
2. Dust-proof treatment
The air intake of the unit employs a pre-efficiency filter, which is easy to clean and effectively prevents fine dust generated during production and operation from entering the unit, clogging the evaporator gaps, and resulting in poor dehumidification performance and frequent malfunctions.
Fireproof treatment
Complete unit fire prevention design; high-quality materials are used for wires and electrical accessories to prevent fires caused by aging inside the unit. Additionally, all control electrical components of the unit are concentrated in a distribution box, utilizing a low-voltage micro PLC brain controller, which completely eliminates fires caused by control electrical failures.
4. Easy control
The aircraft control system utilizes PLC control and a 7-inch color touch screen, featuring a user-friendly interface with full Chinese display. It's easy to understand and operate without training, simply set the parameters and press a button to start. It can automatically start and stop based on the user-defined temperature and relative humidity, with high accuracy and reliability, and an aesthetically pleasing design.
5. Energy-saving and efficient
The unit features a low-noise centrifugal fan with high air volume, designed for forward or top exhaust air flow, ensuring better air circulation and more effective dehumidification within the treatment space.
6. Multi-functional
This unit features dehumidification, humidification, and ventilation functions. When humidity is high, it utilizes the dehumidification function; when humidity is low, it employs humidification or ventilation. This ensures both humidity requirements are met and energy efficiency is achieved.
7. Safety Protection
The unit features temperature and humidity display, fault display, and operating status functions. It is equipped with protections against overload, short circuit, phase loss, overheating, high voltage, low voltage, and water shortage alerts.
