The Yingteng FP series fan coil units incorporate advanced technologies from similar products domestically and internationally. Compliant with national standards and after numerous trials and measurements, they have efficiently completed a series of technical design improvements. As a result, they offer superior performance, wide applications, a full range of types, high efficiency, and low noise. The series includes horizontal concealed, horizontal exposed, vertical concealed, vertical exposed, and card-mounted units. When paired with fresh air handling units, they are widely used in low-noise environments such as hotels, hospitals, office spaces, high-end conference halls, and exhibition halls, making them an ideal terminal unit for centralized air conditioning systems.
Product Specifications

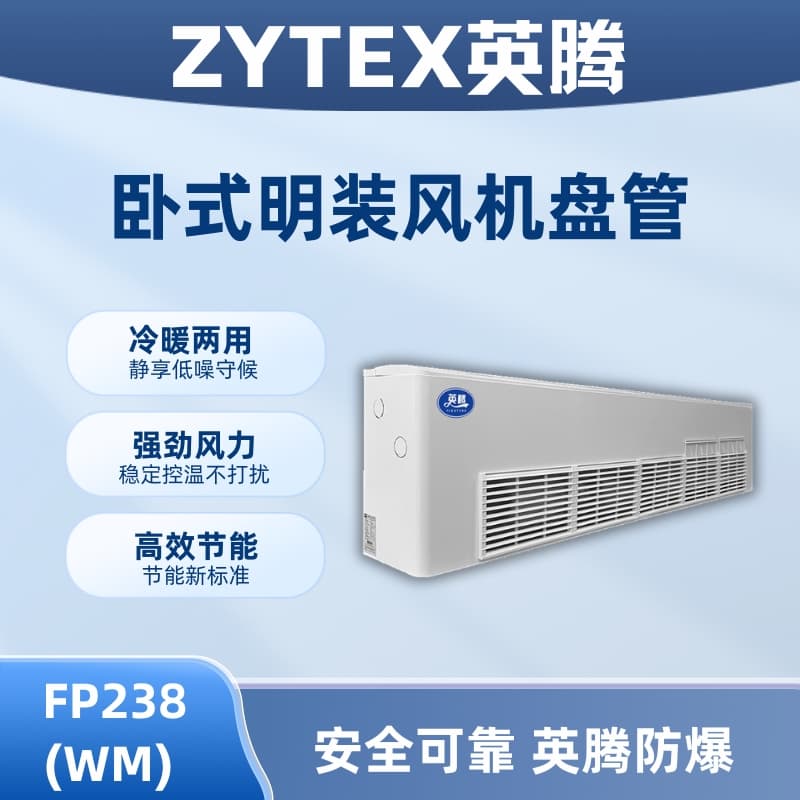

Model: FP238 (WM)
Brand: YingTeng
Airflow (m³): 2380
Cooling Capacity (W): 12,600
Heat Output (W): 18900
Noise dB(A): ≤52
Cold Water Supply Temperature: 7℃-12℃
Water Supply Temperature: 40℃-60℃
Working Pressure (KPa): 1.6
Static Pressure: 30 Pa / 50 Pa
Power: 220V/50Hz
In and Out Water Pipes: ZG3/4
Condensate Drain Pipe: ZG3/4
Dimensions (Length x Width x Height mm): 1980 x 500 x 250
Note: The data in the table is the measured value under the test conditions specified by the national standard for "Fan Coil Unit" (GB/T19232-2003).
1. Cooling operation parameters: Inlet dry bulb temperature DB=27℃, wet bulb temperature WB=19.5℃;
Inlet water temperature: 7°C, outlet water temperature: 12°C.
Heating operation parameters:进口 air dry bulb temperature DB = 21℃, incoming water temperature 60℃.
2. Noise Measurement: Values measured at 1 meter above and below the front of the unit in an anechoic chamber.
3. The standard configuration of the vertical concealed unit has an outdoor static pressure of 12 Pa.
4. Water resistance refers to the water resistance at the rated flow rate; input power refers to the input power at high airflow.
5. When selecting a combination cold and hot twin coil unit, refer to the main technical parameters in the table above. One row of heat is approximately 40% of three rows of heat, low static...
The air volume loss of the press unit is approximately 10%, and the static pressure loss of the high static pressure unit is about 20%.
Product Features
Available in horizontal surface-mounted, horizontal concealed, vertical surface-mounted, vertical concealed, ceiling-mounted, cabinet-style, wall-mounted, and more series.
Low overall height, saving architectural space.
High cooling (heating) capacity, low noise, three-speed motor for adjustable air volume, catering to various usage requirements.
The entire unit is made of hot-dipped galvanized steel, copper pipes, and aluminum fins, offering strong rust resistance.
The water tray is fully molded, and the insulation uses a whole-pressure bonding technique, eliminating concerns of condensation water.
Equipped with exhaust and drain functions, ensuring thorough heat exchange and preventing pipeline cracking due to freezing.
The cooler is made of copper tubes and high-efficiency aluminum fins, mechanically expanded.
The unit employs an efficient aluminum finned heat exchanger with a low-noise fan, enhancing heat exchange and maximizing the heat exchanger's thermal transfer efficiency.
Precise design allows for the left and right configurations of coils to be selected as per order. If required, an automatic temperature control unit can be provided for constant temperature control of the controlled area; (temperature control unit to be ordered separately)
The motor is an energy-saving fixed phase capacitor motor, equipped with imported high-precision steel ball bearings that are self-lubricating. The motor shafts are all heat-treated and chrome-plated for durability, with easy disassembly at the fixed points. The motor leads are protected by metal hoses, meeting international standards.
The standard coil outlet static pressure is 0~12Pa, while the residual pressure outlet static pressure is 30Pa (or ≤50Pa), with the code H.
The water tray and insulation are molded, with an overall adhesive bonding process, ensuring strength, durability, and seamless construction. The exterior is aesthetically pleasing and lightweight, with no condensation or dripping. The exposed pipe is made from sheets produced by Baosteel Shanghai, with a spray-painted finish, while the concealed pipe is made from galvanized steel or fingerprint-resistant steel.
The coiled material is made of seamless copper tubes with corrugated aluminum fins, formed through hydraulic or mechanical expansion. The coil casing is lined with sound-absorbing and insulating material, with the copper tubes arranged in an interlaced pattern, offering exceptional thermal conductivity and minimal air resistance.
