Product Specifications
Brand: YingTeng

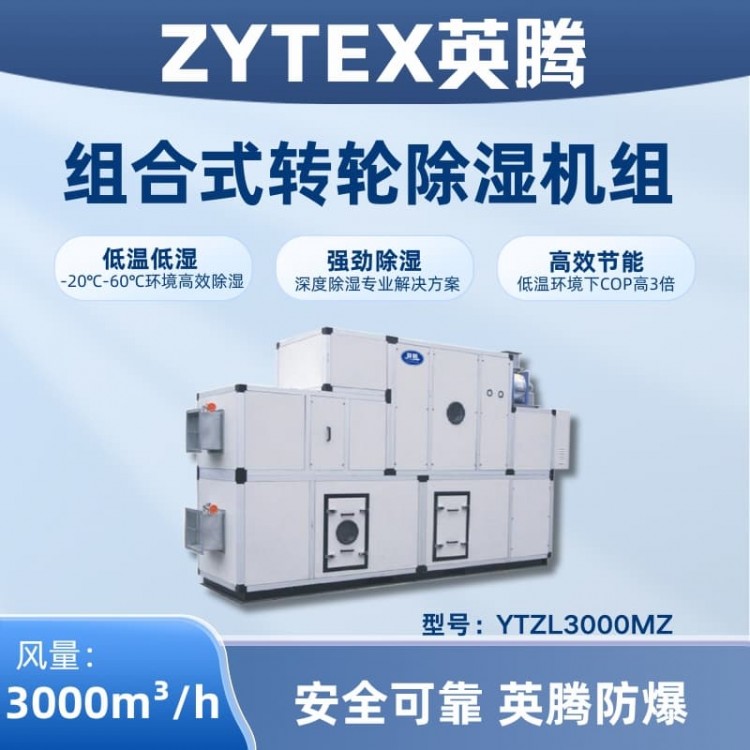

Model: YTZL3000MZ
Airflow Handling: 3000 m³/h
Regenerated Airflow: 1000 m³/h
Rated Dehumidification Capacity: 20 kg/h
Airflow Pressure: 300 - 800 Pa (adjustable)
Regenerative exhaust pressure: 200 - 600 Pa (adjustable)
Installed Power: Electric Heating 33.5kW / Steam Heating 3.2kW
Operating Range for Temperature and Humidity: -10 - 80℃; 10 - 99%
Power: 380V/3 - 50Hz
Regeneration Heating: Temperature 120±10℃ / Power 30kW
Electric Heating Type: 304 Stainless Steel Electric Heating Tube
Steam Consumption: 60 kg/h
Fan Categories: Low Noise Centrifugal Fan - Direct Drive / Belt Pulley, Handling Fan Power 2.2kW, Regenerative Fan Power 0.75kW
Gearbox Power: 0.09 kW
Sprocket Speed: 6 - 10 RPM/H
Preceding table cooling capacity: 23.5 kW
Cooling Capacity (Table Below): 21kW
Airflow heating section: Hot water, steam, electric heating
Airflow heating capacity: 12kW
Air Filter: Plate-type Pre-Filter G5 + Bag-type Medium Efficiency F7
Mainframe Dimensions: 4000*1270*2200mm
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit is the definitive standard.
Product Features
Patented lighting structure, superior quality. The unit employs a patented anti-cold bridge double frame design, featuring a simple yet exquisite frame structure, a dignified and generous appearance, and strong airtightness; the interior is flat, easy to clean, and free of secondary pollution, suitable for use in purification facilities. The unit is meticulously designed, incorporating the best features of similar products and using top-grade accessories, crafted with unique techniques to ensure superior quality.
Unique craftsmanship, superior performance: The unit structure is robust, with strong airtightness and wind leakage prevention; the impeller section features double-sided sealing treatment, internal leakage prevention, and mechanical transmission for low failure rate; the coil is made of high-purity seamless copper tube and pure aluminum corrugated fins, and undergoes high-pressure expansion, ensuring compatibility with any high-pressure piping without leakage; and guarantees minimum contact thermal resistance and high heat transfer efficiency.
Aesthetically pleasing and sleek design: The exterior panel of the unit is made of high-quality coated steel plate, preventing surface scratches and ensuring a clear, attractive appearance; the structural arrangement of the unit components is rational, with no obvious protruding parts, resulting in a smooth and simple silhouette; easy for transportation and installation.
Smart control, energy-efficient: The unit utilizes mature waste heat recovery technology to reclaim waste heat for dehumidification regeneration; it can utilize low-quality energy or renewable energy sources; replacing high-quality energy consumption to save operational costs: Songyue can provide professional dehumidification self-control solutions according to customer requirements, ensuring each unit operates economically, efficiently, and reliably to meet customer process requirements.
现场 disassembly, convenient and quick: all panels of the unit can be easily disassembled on-site, even after multiple assembly, without affecting the container's sealing and strength; and you can choose to transport the entire unit or individual components as per customer needs.
Expertise and Precision: Our company offers comprehensive system integration solutions; we consider customer needs with the application of wet energy technology; while maximizing customer satisfaction, we strive to minimize investment and operational costs.
